Console

Introduction

The VEXcode 123 Console is displayed in the Console Tab within VEXcode. Console methods can display text, numbers, and variable values while a project is running. They can also move the Console cursor to a new row, clear the Console, read user input, and set the color of text printed after the color is changed.

Below is a list of all methods:

Actions — Output text or clear the Console.

• print — Displays text, numbers, or variable values in the Console.

• new_line — Moves the Console cursor to the start of the next row.

• clear — Clears all rows in the Console.

Getter — Read user input.

• input — Waits for user input and returns the response as text.

Mutator — Format printed text.

• set_print_color — Sets the color used for text printed in the Console.

Actions

print

print displays text, numbers, or variable values in the Console using the current cursor position.

Use custom string formatting when you want a printed message to include values from your project, like a score, timer, or sensor reading. See the String Formatting page for more information.

Use new_line when you want the next printed value to start on a new row.

Usage:
console.print(value, precision)

Parameters	Description
value	The text, number, or variable value to display in the Console.
precision	Optional. The number of decimal places to display when printing a number. The default is 0, so numbers print with no decimal places.

# Display a message in the Console
console.print("Hello, robot!")

# Display 1/3 with two decimals
console.print(1 / 3, precision=2)

new_line

new_line moves the cursor to column 1 on the next row in the Console. The next value printed will appear on that row.

Use this method when you want the next printed value to start on a new row.

Usage:
console.new_line()

Parameters	Description
	This method has no parameters.

# Print on two lines
console.print("Row 1")
console.new_line()
console.print("Row 2")

clear

clear clears all rows from the Console.

Usage:
console.clear()

Parameters	Description
	This method has no parameters.

# Display text, then clear it after two seconds
console.print("This will disappear...")
wait(2, SECONDS)
console.clear()

Getter

input

input waits for the user to enter a response, then returns that response as text.

The project pauses at input() until a response is entered in the Console.

The value returned by input() is always text. To use the response as a number, convert it first with int() or float().

Usage:
input()

Parameters	Description
	This method has no parameters.

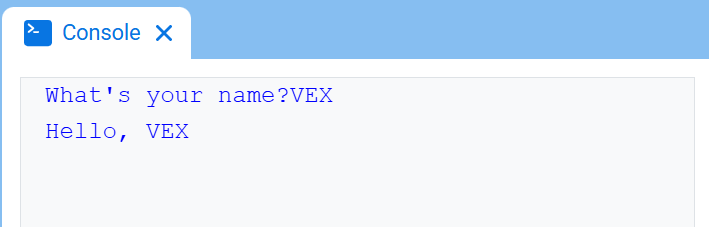

# Ask for a name, then print a greeting
answer = input("What's your name?")
console.print("Hello, " + answer)

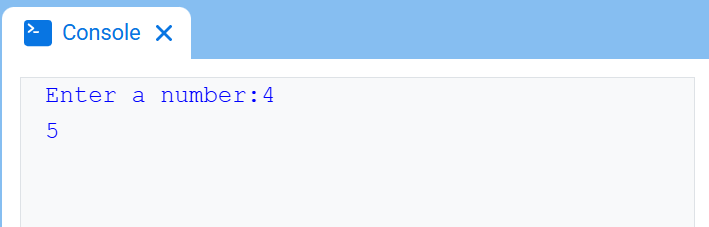

# Ask for a number, then use it in math
answer = input("Enter a number:")
number = float(answer)
console.print(number + 1)

Mutator

set_print_color

set_print_color sets the color used for text printed in the Console after this method is used. At the start of a project, the Console text color is set to BLUE.

Usage:
console.set_print_color(color)

Parameters	Description
color	The color to use for text printed in the Console: BLACK BLUE GREEN RED

# Print text in different colors
console.print("Default text color")
console.new_line()
console.set_print_color(RED)
console.print("Red text color")
