AI Vision

Introduction

The VEX AIM Coding Robot’s AI Vision Sensor detects and tracks objects, colors, and AprilTags. This allows the robot to analyze its surroundings, follow objects, and react based on detected visual data. Below is a list of all available methods and properties:

Actions – Show or hide the AI Vision camera feed.

• show_aivision – Displays the AI Vision feed on the robot’s screen.

• hide_aivision – Hides the AI Vision feed from the screen.

• tag_detection – Turns AprilTag detection on or off.

Getters – Detect if the robot is holding an object.

• get_data – Returns a tuple of detected objects based on a given signature.

• has_sports_ball – Returns whether the robot has a sports ball.

• has_any_barrel – Returns whether the robot has any type of barrel.

• has_blue_barrel – Returns whether the robot has a blue barrel.

• has_orange_barrel – Returns whether the robot has an orange barrel.

Properties – Object data returned from get_data.

• exists – Whether the object exists in the current detection as a Boolean.

• width – Width of the detected object in pixels.

• height – Height of the detected object in pixels.

• centerX – X position of the object’s center in pixels.

• centerY – Y position of the object’s center in pixels.

• bearing – Horizontal angle relative to the front of the robot in degrees.

• rotation – Orientation of the object in degrees.

• originX – X position of the object’s top-left corner in pixels.

• originY – Y position of the object’s top-left corner in pixels.

• id – Classification or tag ID of the object.

• score – Confidence score for AI Classifications (1–100).

• type – Returns the object’s type (AI, Tag, Color, or Code).

Constructors – Define color signatures and codes.

• Create a Color Signature – Creates a new Color Signature based on RGB and hue/saturation ranges.

• Create a Color Code – Combines multiple Color Signatures into a single Color Code.

Actions

show_aivision

show_aivision displays the AI Vision Sensor’s live data feed on the robot’s screen. The live data feed will cover any other images or text on the screen.

Note: The screen will not display any other images or text unless hide_aivision is used to hide the feed.

Usage:
robot.screen.show_aivision()

Parameters	Description
	This method has no parameters.

# Watch the AI Vision Sensor detect AI Classifications
# and AprilTags as you move the robot
robot.screen.show_aivision()

hide_aivision

hide_aivision removes the AI Vision Sensor’s live data feed from the robot’s screen.

Usage:
robot.screen.hide_aivision()

Parameters	Description
	This method has no parameters.

# View the AI Vision Sensor's feed for five seconds
robot.screen.show_aivision()
wait(5, SECONDS)
robot.screen.hide_aivision()

tag_detection

tag_detection enables or disables the AprilTag detection, where the state is a Boolean value.

The sensor can detect AprilTag IDs 0 to 36 from the Circle21h7 family.

Usage:
robot.vision.tag_detection(state)

Parameters	Description
state	True Enables AprilTag detection. False Disables AprilTag detection.

robot.screen.set_font(PROP30)

# Cut off APrilTag detection after 5 seconds
while True:
    if robot.timer.time(SECONDS) > 5:
        robot.vision.tag_detection(False)

    robot.screen.clear_screen()
    robot.screen.set_cursor(3, 1)
    apriltags = robot.vision.get_data(ALL_TAGS)

    if apriltags:
        robot.screen.print("AprilTag detected!")
    else:
        robot.screen.print("Nothing detected!")

    wait(0.1, SECONDS)

Getters

get_data

get_data filters the data from the AI Vision Sensor frame to return a tuple. The AI Vision Sensor can detect signatures that include pre-trained objects, AprilTags, or configured Colors and Color Codes.

Color Signatures and Color Codes must be configured first in the AI Vision Utility before they can be used with this method.

The tuple stores objects ordered from largest to smallest by width, starting at index 0. Each object’s properties can be accessed using its index. An empty tuple is returned if no matching objects are detected.

Usage:
robot.vision.get_data(signature, count)

Parameters	Description
signature	What signature to get data of. Available signatures are: ALL_VISION - Sports balls, barrels, VEX AIM Coding Robots, AprilTags, colors, and color codes ALL_CARGO - Sports balls and barrels ALL_TAGS - All AprilTags ALL_COLORS - All configured color signatures and color codes SPORTS_BALL - Only sports balls BLUE_BARREL - Only blue barrels ORANGE_BARREL - Only orange barrels AIM_ROBOT - All VEX AIM Coding Robots TAG0 through TAG37 - A single AprilTag with an ID from 0 to 37 NAME - Color signature or color code where NAME is the name configured in the AI Vision Utility.
count	Optional. Sets the maximum number of objects that can be returned from 1 to 24 (default: 8).

Note: AprilTags 5 through 37 can be obtained by using the printed AprilTags from AIM Printables.

# Move forward if a sports ball is detected
while True:
    ball = robot.vision.get_data(SPORTS_BALL)
    if ball:
        robot.move_for(10, 0)
    wait(50, MSEC)

Color Signatures

A color signature is a unique color that the AI Vision Sensor can recognize. These signatures allow the sensor to detect and track objects based on their color. Once a Color Signature is configured, the sensor can identify objects with that specific color in its field of view. Color signatures are used with get_data to process and detect colored objects in real-time.

# Display if any objects match the Red_Box signature
while True:
    robot.screen.set_cursor(1, 1)
    robot.screen.clear_row(1)
    # Change to any configured Color Signature
    ai_objects = robot.vision.get_data(Red_Box)
    if ai_objects:
        robot.screen.print("Color signature detected!")

Color Codes

A color code is a structured pattern made up of 2 to 4 color signatures arranged in a specific order. These codes allow the AI Vision Sensor to recognize predefined patterns of colors. Color codes are useful for identifying complex objects or creating unique markers for autonomous navigation.

# Display if any objects match the BlueRed code
while True:
    robot.screen.set_cursor(1, 1)
    robot.screen.clear_row(1)
    # Change to any configured Color Code
    ai_objects = robot.vision.get_data(BlueRed)
    if ai_objects:
        robot.screen.print("Color code detected!")

has_sports_ball

has_sports_ball returns a Boolean indicating whether the robot currently has a sports ball.

• True – The robot has a sports ball.

• False – The robot does not have a sports ball.

Usage:
robot.has_sports_ball()

Parameters	Description
	This method has no parameters.

# Kick when the robot has a sports ball
while True:
    if robot.has_sports_ball():
        robot.kicker.kick(MEDIUM)

    wait(50, MSEC)

has_any_barrel

has_any_barrel returns a Boolean indicating whether the robot currently has any type of barrel.

• True – The robot has a barrel.

• False – The robot does not have a barrel.

Usage:
robot.has_any_barrel()

Parameters	Description
	This method has no parameters.

# Push a barrel away when detected
while True:
    if robot.has_any_barrel():
        robot.kicker.place()

    wait(50, MSEC)

has_blue_barrel

has_blue_barrel returns a Boolean indicating whether the robot currently has a blue barrel.

• True – The robot has a blue barrel.

• False – The robot does not have a blue barrel.

Usage:
robot.has_blue_barrel()

Parameters	Description
	This method has no parameters.

# Push a blue barrel away when detected
while True:
    if robot.has_blue_barrel():
        robot.kicker.place()

    wait(50, MSEC)

has_orange_barrel

has_orange_barrel returns a Boolean indicating whether the robot currently has an orange barrel.

• True – The robot has an orange barrel.

• False – The robot does not have an orange barrel.

Usage:
robot.has_orange_barrel()

Parameters	Description
	This method has no parameters.

# Push an orange barrel away when detected
while True:
    if robot.has_orange_barrel():
        robot.kicker.place()

    wait(50, MSEC)

Properties

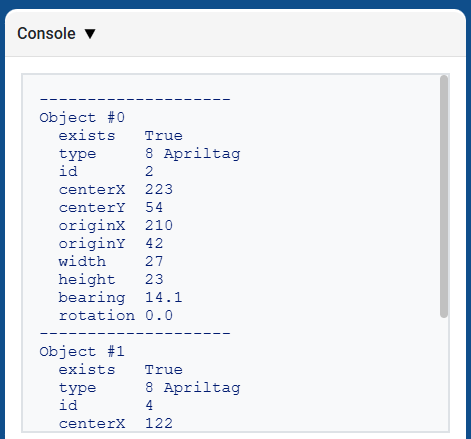

There are twelve properties that are included with each object stored in a tuple after the robot.vision.get_data method is used.

Some property values are based off of the detected object’s position in the AI Vision Sensor’s view at the time that robot.vision.get_data was used. The AI Vision Sensor has a resolution of 240 by 320 pixels.

.exists

.exists returns a Boolean indicating if the index exists in the tuple or not.

• True: The index exists.

• False: The index does not exist.

# Check if at least two objects are detected
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)
    ai_objects = robot.vision.get_data(ALL_CARGO)

    if ai_objects:
        if ai_objects[1].exists:
            robot.screen.print("More than 2")
        else:
            robot.screen.print("Less than 2")
    wait(0.1, SECONDS)

.width

.width returns the width of the detected object in pixels, which is an integer between 1 and 320.

# Move towards a Blue Barrel until its width is
# larger than 100 pixels
while True:
    barrel = robot.vision.get_data(BLUE_BARREL)

    if barrel:
        if barrel[0].width < 100:
            robot.move_at(0)
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.height

.height returns the height of the detected object in pixels, which is an integer between 1 and 240.

# Move towards a Blue Barrel until its height is
# larger than 100 pixels
while True:
    barrel = robot.vision.get_data(BLUE_BARREL)

    if barrel:
        if barrel[0].height < 100:
            robot.move_at(0)
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.centerX

.centerX returns the x-coordinate of the detected object’s center in pixels, which is an integer between 0 and 320.

# Turn slowly until a Blue Barrel is centered in
# front of the robot
robot.set_turn_velocity(30)
robot.turn(RIGHT)

while True:
    barrel = robot.vision.get_data(BLUE_BARREL)

    if barrel:
        if 140 < barrel[0].centerX < 180:
            robot.stop_all_movement()

    wait(10,MSEC)

.centerY

.centerY returns the y-coordinate of the detected object’s center in pixels, which is an integer between 0 and 240.

# Move towards a Blue Barrel until its
# center y-coordinate is more than 140 pixels
while True:
    barrel = robot.vision.get_data(BLUE_BARREL)

    if barrel:
        if barrel[0].centerY < 140:
            robot.move_at(0)
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.bearing

.bearing returns a float representing how far an object is to the left or right of the center of the AI Vision Sensor’s view as a degree. A value of 0 means it’s centered, positive values mean the object is to the right, and negative values mean the object is to the left.

# Keep the blue barrel directly in front of the robot
robot.set_turn_velocity(40)
while True:
    vision_data = robot.vision.get_data(BLUE_BARREL)

    if vision_data:

        if vision_data[0].bearing > 5:
            robot.turn(RIGHT)
        elif vision_data[0].bearing < -5:
            robot.turn(LEFT)
        else:
            robot.stop_all_movement()

    else:
        robot.stop_all_movement()

    wait(0.1, SECONDS)

.rotation

.rotation returns the orientation of the detected object in degrees, which is an integer between 0 and 359.

# Slide left or right depending on how the
# AprilTag is rotated
while True:
    apriltags = robot.vision.get_data(ALL_TAGS)

    if apriltags:
        if 50 < apriltags[0].rotation < 100 :
            robot.move_at(90)

        elif 270 < apriltags[0].rotation < 330 :
            robot.move_at(270)

        else:
            robot.stop_all_movement()
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.originX

.originX returns the x-coordinate of the top-left corner of the detected object’s bounding box in pixels, which is an integer between 0 and 320.

# Display if an Orange Barrel is to the
# left or the right
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1,1)

    orange_barrel = robot.vision.get_data(ORANGE_BARREL)

    if orange_barrel:
        if orange_barrel[0].originX < 160:
            robot.screen.print("To the left!")
        else:
            robot.screen.print("To the right!")

    wait(50, MSEC)

.originY

.originY returns the y-coordinate of the top-left corner of the detected object’s bounding box in pixels, which is an integer between 0 and 240.

# Display if an Orange Barrel is close or far
# from the robot
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)

    orange_barrel = robot.vision.get_data(ORANGE_BARREL)

    if orange_barrel:
        if orange_barrel[0].originY < 80:
            robot.screen.print("Far")
        else:
            robot.screen.print("Close")

    wait(50, MSEC)

.id

.id returns the ID of the detected AI Classification or AprilTag as an integer.

For an AprilTag, the .id property represents the detected AprilTag’s ID number in the range of 0 to 36. For an AI Classification, the id corresponds to the predefined id as shown below.

AI Classification	id	Signature
Ball	0	SPORTS_BALL
Blue Barrel	1	BLUE_BARREL
Orange Barrel	2	ORANGE_BARREL
AIM Robot	3	AIM_ROBOT

# Move forward when AprilTag 1 is detected
while True:
    apriltags = robot.vision.get_data(ALL_TAGS)

    if apriltags:
        if apriltags[0].id == 1:
            robot.move_at(0)
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.score

.score returns the confidence score of the detected AI Classification as an integer between 1 and 100.

# Look confident if an Orange Barrel is detected
while True:
    barrel = robot.vision.get_data(ORANGE_BARREL)

    if barrel:
        if barrel[0].score > 95:
            robot.screen.show_emoji(CONFIDENT)
        else:
            robot.screen.hide_emoji()

    wait(50, MSEC)

.type

.type returns what type of object is detected. It will return one of the following:

Object Type	Included Objects
AiVision.AI_OBJECT	- Sports balls - Blue barrels - Orange barrels
AiVision.TAG_OBJECT	- AprilTags
AiVision.COLOR_OBJECT	- Color signatures
AiVision.CODE_OBJECT	- Color codes

# Display if an AprilTag or AI Classification
# is detected
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)
    vision_data = robot.vision.get_data(ALL_VISION)
    if vision_data:
        if vision_data[0].type == AiVision.AI_OBJECT:
            robot.screen.print("AI Object!")
        elif vision_data[0].type == AiVision.TAG_OBJECT:
            robot.screen.print("AprilTag!")
    wait(0.1, SECONDS)

# Display a list of all detected objects
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)
    vision_data = robot.vision.get_data(ALL_VISION)

    if vision_data:
        for obj in vision_data:
            if obj.type == AiVision.AI_OBJECT:
                robot.screen.print("- AI Object")
            elif obj.type == AiVision.TAG_OBJECT:
                robot.screen.print("- AprilTag")
            robot.screen.next_row()

    wait(0.1, SECONDS)

Constructors

Creating a Color Signature

A new Color Signature is created using the Colordesc constructor and then registered with the AI Vision Sensor using the color_description method. A Colordesc object defines 1 of up to 7 detectable color signatures for the sensor, but it must be explicitly set using color_description to take effect.

Colordesc Usage:
Colordesc(index, red, green, blue, hangle, hdsat)

Parameter	Description
index	An integer from 1 to 7 representing the Color Signature index. If two Color Signatures use the same index, the second will override the first.
red	An integer from 0 to 255 for the red component of the color.
green	An integer from 0 to 255 for the green component of the color.
blue	An integer from 0 to 255 for the blue component of the color.
hangle	A float from 1 to 40 representing the hue range in degrees.
hdsat	A float from 0.10 to 1.00 representing the saturation range.

color_description Usage:
robot.vision.color_description(object)

Parameter	Description
object	The Colordesc object to set as a detectable Color Signature.

# Detect a red object
red_box = Colordesc(1, 207, 19, 25, 10.00, 0.20)
robot.vision.color_description(red_box)

while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)

    red_boxes = robot.vision.get_data(red_box)

    if red_boxes:
        robot.screen.print("Red detected!")
    else:
        robot.screen.print("No red detected.")

    wait(0.2, SECONDS)

Creating a Color Code

A new Color Code is created using the Codedesc constructor and then activated using the code_description method. A Color Code groups 2 to 4 existing Colordesc objects into a single identifier that the AI Vision Sensor can detect as a sequence, but it must be explicitly set using code_description to take effect.

Codedesc Usage:
Codedesc(index, c1, c2, c3, c4, c5)

Parameter	Description
index	The index of the Color Code, from 1 to 8. Note: If you create two Codedesc objects with the same index, the second will override the first.
c1	The first Colordesc object in the code.
c2	The second Colordesc object in the code.
c3	Optional. A third Colordesc object.
c4	Optional. A fourth Colordesc object.

code_description Usage:
robot.vision.code_description(object)

Parameter	Description
object	A Codedesc object to register as a detectable Color Code.

# Create Color Signatures
red_box = Colordesc(1, 207, 19, 25, 10.00, 0.20)
purple_box = Colordesc(2, 98, 18, 227, 10.00, 0.20)

robot.vision.color_description(red_box)
robot.vision.color_description(purple_box)

# Detect a red_purple Color Code
red_purple = Codedesc(1, red_box, purple_box)
robot.vision.code_description(red_purple)

while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)

    code_objects = robot.vision.get_data(red_purple)

    if code_objects:
        robot.screen.print("Code detected!")
    else:
        robot.screen.print("No code detected.")

    wait(0.2, SECONDS)
