Motion#

Introduction #

The VEX AIM Coding Robot features a holonomic drivetrain, allowing it to move in any direction and rotate independently. Motion provides methods for movement, turning, speed adjustments, and position tracking.

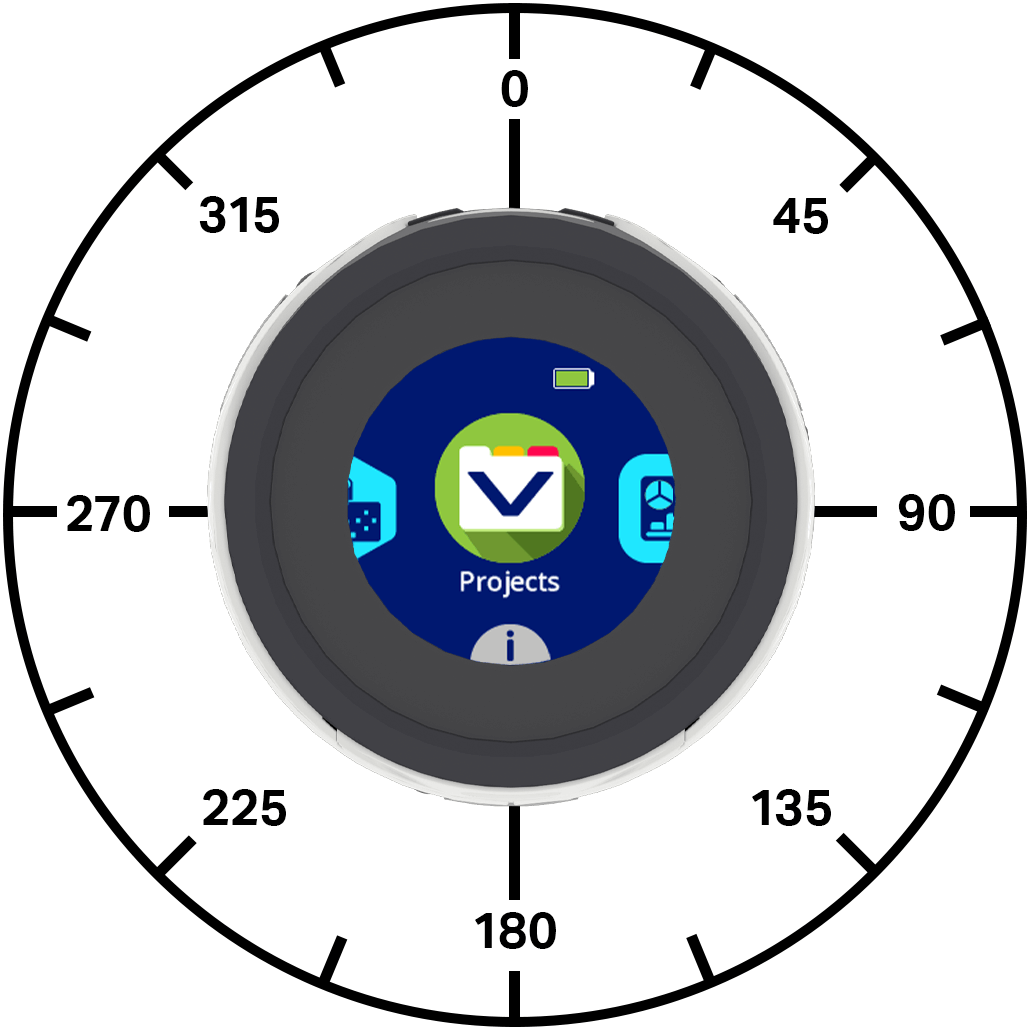

Circular compass dial from 0-315 degrees surrounding a dark gray display with navy blue screen. The front of the robot faces 0 degrees on the compass dial.

Below is a list of available methods:

Actions – Move and turn the robot.

move_at – Moves the robot at a specified angle.
move_for – Moves the robot at an angle for a specific distance.
move_with_vectors – Moves the robot using vector-based x, y, and rotation values.
turn – Turns the robot left or right.
turn_for – Turns the robot a set number of degrees.
turn_to – Turns the robot to face a specific heading.
stop_all_movement – Stops all movement of the robot.

Mutators – Set default movement and turn speeds.

set_move_velocity – Sets the default movement speed.
set_turn_velocity – Sets the default turn speed.
set_xy_position – Sets the robot’s current position.

Getters – Return robot state and position.

get_x_position – Returns the robot’s x-coordinate.
get_y_position – Returns the robot’s y-coordinate.
is_move_active – Returns whether the robot is currently moving.
is_turn_active – Returns whether the robot is currently turning.
is_stopped – Returns whether the robot is stopped.

Actions #

move_at #

move_at moves the robot at a specified angle (from -360 to 360 degrees) and velocity (from 0 to 100 in PERCENT or 0 to 200 in MMPS).

Usage:

robot.move_at(angle, velocity, units)

Parameters	Description
`angle`	The angle, as an integer or float, at which the robot moves, ranging from -360 to 360 degrees.
`velocity`	Optional. The velocity as an integer or float number at which the robot will move. If the velocity is not specified, the default velocity is 50%. The range can be: from 0 to 100 in `PERCENT`. from 0 to 200 in `MMPS`.
`units`	Optional. The velocity unit is `PERCENT` (default) or millimeters per second `MMPS`.

Parameters

Description

angle

The angle, as an integer or float, at which the robot moves, ranging from -360 to 360 degrees.

velocity

Optional. The velocity as an integer or float number at which the robot will move. If the velocity is not specified, the default velocity is 50%. The range can be:

from 0 to 100 in PERCENT.
from 0 to 200 in MMPS.

units

Optional. The velocity unit is PERCENT (default) or millimeters per second MMPS.

# Move right, then move forward and stop.
robot.move_at(90)
wait(1,SECONDS)
robot.move_at(0)
wait(1,SECONDS)
robot.stop_all_movement()

# Move right slowly, move in reverse quickly and stop.
robot.move_at(90, 25)
wait(2, SECONDS)
robot.move_at(180, 100, PERCENT)
wait(1, SECONDS)
robot.stop_all_movement()

# Move diagonally to the right and stop.
robot.move_at(45.33)
wait(1,SECONDS)
robot.stop_all_movement()

move_for #

move_for moves the robot at a specific angle for a specified distance.

Usage:

robot.move_for(distance, angle, velocity, units, wait)

Parameters	Description
`distance`	The distance, as an integer or float, that the robot will move, measured in millimeters (mm).
`angle`	The angle, as an integer or float, at which the robot moves, ranging from -360 to 360 degrees.
`velocity`	Optional. The velocity as an integer or float number at which the robot will move. If the velocity is not specified, the default velocity is 50%.
`units`	Optional. The velocity unit is `PERCENT` (default) or millimeters per second `MMPS`.
`wait`	Optional. `wait=True` (default) - The robot waits until `move_for` is complete before executing the next line of code. `wait=False` - The robot starts the action and moves on to the next line of code right away, without waiting for `move_for` to finish.

# Move right, then move forward.
robot.move_for(50, 90)
robot.move_for(100, 0)

# Move in reverse slowly, then move forward quickly.
robot.move_for(100, 180, 25)
robot.move_for(100, 0, 100, PERCENT)

# Drive forward and blink all LEDs red.
robot.move_for(100, 0, wait=False)
robot.led.on(ALL_LEDS, RED)
wait(0.5, SECONDS)
robot.led.on(ALL_LEDS, BLACK)
wait(0.5, SECONDS)
robot.led.on(ALL_LEDS, RED)
wait(0.5, SECONDS)
robot.led.on(ALL_LEDS, BLACK)

move_with_vectors #

move_with_vectors moves the robot using vector-based motion, combining horizontal (X-axis) and vertical (Y-axis) movement and having the robot rotate at the same time.

Usage:

robot.move_with_vectors(forward, rightward, rotation)

Parameters	Description
`forward`	The robot’s velocity along the Y-axis (forward and backward movement). Accepts a value from -100 to 100 as a percent, where negative values move backward and positive values move forward.
`rightward`	The robot’s velocity along the X-axis (side-to-side movement). Accepts a value from -100 to 100 as a percent, where negative values move left and positive values move right.
`rotation`	The robot’s rotational velocity. Accepts a value from -100 to 100 as a percent, where negative values rotate counterclockwise and positive values rotate clockwise.

# Move at 15°
robot.move_with_vectors(48.3, 12.95, 0)
wait(2, SECONDS)
robot.stop_all_movement()

# Move at 45° while turning counterclockwise.
robot.move_with_vectors(50, 50, -30)
wait(2, SECONDS)
robot.stop_all_movement()

turn #

turn turns the robot in a specific direction.

Usage:

robot.turn(direction, velocity, units)

Parameters	Description
`direction`	The direction in which the robot turns: `LEFT` or `RIGHT`.
`velocity`	Optional. The velocity, as an integer or float, at which the robot turns. If the velocity is not specified, the default velocity is 50%.
`units`	Optional. Degrees per second `DPS` (default) or `PERCENT`.

# Turn left, then stop.
robot.turn(LEFT)
wait(1, SECONDS)
robot.stop_all_movement()

# Turn left quickly, turn right slowly, then stop.
robot.turn(LEFT, 80)
wait(2, SECONDS)
robot.turn(RIGHT, 20, PERCENT)
wait(3, SECONDS)
robot.stop_all_movement()

turn_for #

turn_for turns the robot in a specified direction for a specified angle relative to its current facing direction.

Usage:

robot.turn_for(direction, angle, velocity, units, wait)

Parameters	Description
`direction`	The direction in which the robot turns: `LEFT` or `RIGHT`.
`angle`	The angle, as an integer or float, at which the robot moves, ranging from -360 to 360 degrees.
`velocity`	Optional. The velocity at which the robot will turn. If the velocity is not specified, the default velocity is 50%.
`units`	Optional. degrees per second `PERCENT` (default) or `DPS`.
`wait`	Optional. `wait=True` (default) - The robot waits until `turn_for` is complete before executing the next line of code. `wait=False` - The robot starts the action and moves to the next command without waiting for `turn_for` to finish.

# Turn left, then turn around to the right.
robot.turn_for(LEFT, 90)
robot.turn_for(RIGHT, 180)

# Turn left quickly, then turn right slowly.
robot.turn_for(LEFT, 90, 100)
robot.turn_for(RIGHT, 180, 15, PERCENT)

# Turn right and blink all LEDs blue.
robot.turn_for(RIGHT, 180, wait=False)
robot.led.on(ALL_LEDS, BLUE)
wait (0.5, SECONDS)
robot.led.off(ALL_LEDS)
wait (0.5, SECONDS)
robot.led.on(ALL_LEDS, BLUE)
wait (0.5, SECONDS)
robot.led.off(ALL_LEDS)

turn_to #

turn_to is used to turn the robot to face a specific heading.

Usage:

robot.turn_to(heading, velocity, units, wait)

Parameters	Description
`heading`	The heading that the robot will turn to face from –360 to 360 degrees.
`velocity`	Optional. The velocity as an integer or float number at which the robot will turn. If the velocity is not specified, the default velocity is 50%.
`units`	Optional. Degrees per second `PERCENT` (default) or `DPS`.
`wait`	Optional. `wait=True` (default) - The robot waits until `turn_to` is complete before executing the next line of code. `wait=False` - The robot starts the action and moves on to the next line of code right away, without waiting for `turn_to` to finish.

# Turn to face each cardinal directions.
robot.turn_to(90)
wait(2, SECONDS)
robot.turn_to(180)
wait(2, SECONDS)
robot.turn_to(270)
wait(2, SECONDS)
robot.turn_to(0)

# Turn to face backward slowly, then face forward quickly.
robot.turn_to(180, 25)
wait(1, SECONDS)
robot.turn_to(0, 90, PERCENT)

# Turn around quickly and blink all LEDs green.
robot.turn_to(180, 100, wait=False)
robot.led.on(ALL_LEDS, GREEN)
wait(0.5, SECONDS)
robot.led.off(ALL_LEDS)
wait(0.5, SECONDS)
robot.led.on(ALL_LEDS, GREEN)
wait(0.5, SECONDS)
robot.led.off(ALL_LEDS)

stop_all_movement #

stop_all_movement is used to stop all movement of the robot.

Usage:

robot.stop_all_movement()

Parameters	Description
	This method has no parameters.

# Turn right, then stop moving
robot.turn(RIGHT)
wait(1, SECONDS)
robot.stop_all_movement()

Mutators #

set_move_velocity #

set_move_velocity overrides the default velocity for all subsequent movement methods in the project. The default move velocity is 50% (100 millimeters per second).

Usage:

robot.set_move_velocity(velocity, units)

Parameters	Description
`velocity`	Sets the default movement velocity.
`units`	Optional. The velocity unit is `PERCENT` (default) or `MMPS`.

# Move forward at the default velocity,
robot.set_move_velocity(50)
robot.move_for(100, 0)
wait(1, SECONDS)
# Move slower than the default velocity
robot.set_move_velocity(20)
robot.move_for(100, 0)
wait(1, SECONDS)
# Move faster than the default velocity
robot.set_move_velocity(100)
robot.move_for(100, 0)

set_turn_velocity #

set_turn_velocity overrides the default velocity for all subsequent turn methods in the project. The default turn velocity is 50% (75 degrees per second).

Usage:

robot.set_turn_velocity(velocity, units)

Parameters	Description
`velocity`	Sets the default turn velocity.
`units`	Optional. degrees per second `PERCENT` (default) or `DPS`.

# Turn around at default velocity
robot.set_turn_velocity(50)
robot.turn_for(RIGHT, 180)
wait(1, SECONDS)
# Turn around slower than the default velocity
robot.set_turn_velocity(20)
robot.turn_for(RIGHT, 180)
wait(1, SECONDS)
# Turn around faster than the default velocity
robot.set_turn_velocity(100)
robot.turn_for(RIGHT, 180)

set_xy_position #

set_xy_position sets the robot’s current position to specified values. This updates the robot’s internal coordinates.

Usage:

robot.set_xy_position(x, y)

Parameters	Description
`x`	The new x-coordinate in mm as an integer.
`y`	The new y-coordinate in mm as an integer.

# Set the robot's current position
# Move forward and print the new coordinate
robot.set_xy_position(100, 50)
robot.move_for(150, 0)
robot.screen.print("X:", robot.get_x_position())
robot.screen.next_row()
robot.screen.print("Y:", robot.get_y_position())

Getters #

get_x_position #

get_x_position returns the robot’s x-coordinate as an integer in millimeters.

Usage:

robot.get_x_position()

Parameters	Description
	This method has no parameters.

# Print the start and end x-value
# of the robot's position after moving
robot.screen.print("Start X:", robot.get_x_position())
robot.move_for(200, 90)
robot.screen.next_row()
robot.screen.print("End X:", robot.get_x_position())

get_y_position #

get_y_position returns the robot’s y-coordinate as an integer in millimeters.

Usage:

robot.get_y_position()

Parameters	Description
	This method has no parameters.

# Print the start and end y-value
# of the robot's position after moving
robot.screen.print("Start Y:", robot.get_y_position())
robot.move_for(200, 0)
robot.screen.next_row()
robot.screen.print("End Y:", robot.get_y_position())

is_move_active #

is_move_active returns a Boolean indicating whether the robot is currently moving.

True – The robot is moving.
False – The robot is not moving.

Usage:

robot.is_move_active()

Parameters	Description
	This method has no parameters.

# Blink all the LEDs when the robot is moving.
robot.move_for(200, 0, wait=False)

while robot.is_move_active():
    robot.led.on(ALL_LEDS, ORANGE)
    wait(0.5, SECONDS)
    robot.led.on(ALL_LEDS, CYAN)
    wait(0.5, SECONDS)

robot.led.off(ALL_LEDS)

is_turn_active #

is_turn_active returns a Boolean indicating whether the robot is currently turning.

True – The robot is turning.
False – The robot is not turning.

Usage:

robot.is_turn_active()

Parameters	Description
	This method has no parameters.

# Blink all the LEDs while the robot is turning
robot.turn_for(RIGHT, 180, wait=False)

while robot.is_turn_active():
    robot.led.on(ALL_LEDS, GREEN)
    wait(0.5, SECONDS)
    robot.led.on(ALL_LEDS, CYAN)
    wait(0.5, SECONDS)

robot.led.off(ALL_LEDS)

is_stopped #

is_stopped returns a Boolean indicating whether the robot is stopped.

True – The robot is completely stopped.
False – The robot is currently moving or turning.

Usage:

robot.is_stopped()

Parameters	Description
	This method has no parameters.

# Blink all the LEDs while the robot is moving or turning

def light_show():
    # Flash LEDs while the robot is moving or turning
    while not robot.is_stopped():
        robot.led.on(ALL_LEDS, GREEN)
        wait(.5, SECONDS)
        robot.led.on(ALL_LEDS, PURPLE)
        wait(.5, SECONDS)

    robot.led.off(ALL_LEDS)

robot.move_for(200, 0, wait=False)
light_show()

robot.turn_for(RIGHT, 180, wait=False)
light_show()
