LED

Introduction

The VEX AIM Coding Robot has six LEDs (Light-Emitting Diodes) around the body of the robot. The LEDs can be set to different colors to give feedback, show a robot status, or make the robot easier to track during a project.

Each LED can be set individually, all LEDs can be set at the same time, or a group of LEDs can be set together using a tuple.

LED names:

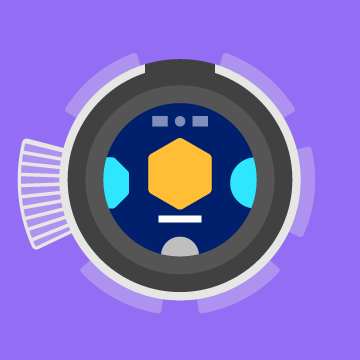

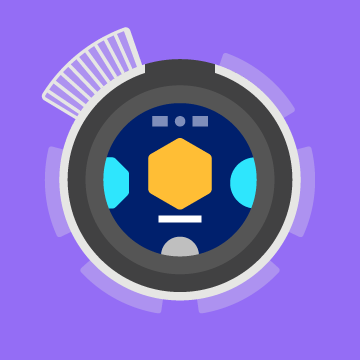

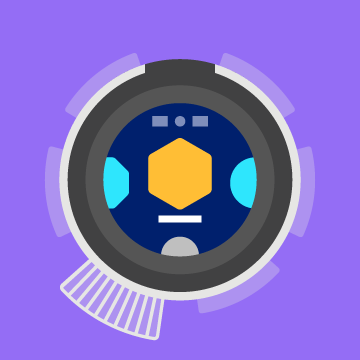

LED1	LED2	LED3

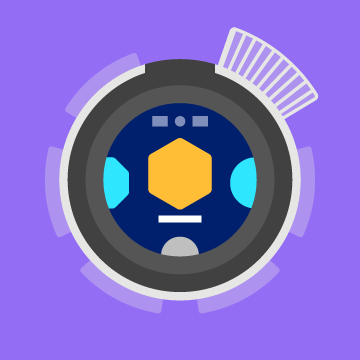

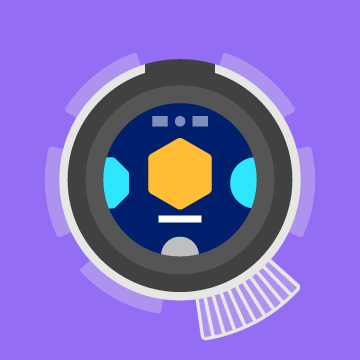

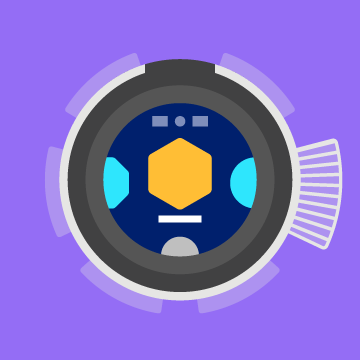

LED4	LED5	LED6

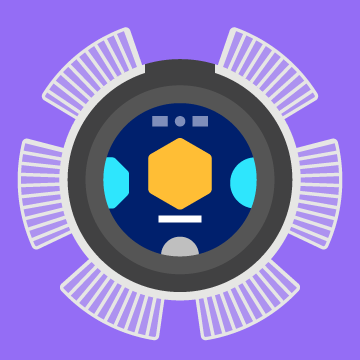

ALL_LEDS

Below is a list of all methods:

Actions — Turn LEDs on or off.

• on — Turns on one LED, all LEDs, or a group of LEDs.

• off — Turns off one LED, all LEDs, or a group of LEDs.

Actions

on

on turns on one LED, all LEDs, or a group of LEDs.

Usage:
robot.led.on(led, color)

Parameter	Description
led	The LED or LEDs to turn on: A single LED, such as LED1 All LEDs with ALL_LEDS A group of LEDs in a tuple, such as (LED1, LED2)
color	Optional. The color to set the selected LED or LEDs to: BLACK BLUE CYAN GREEN ORANGE PURPLE RED TRANSPARENT WHITE (default) YELLOW You can also specify a custom color.

Examples

# Turn all LEDs green while the screen is pressed
while True:
    if robot.screen.pressing():
        robot.led.on(ALL_LEDS, GREEN)
    else:
        robot.led.off(ALL_LEDS)

    wait(50, MSEC)

# Turn two LEDs red
robot.led.on((LED3, LED4), RED)

off

off turns off one LED, all LEDs, or a group of LEDs.

Usage:
robot.led.off(led)

Parameter	Description
led	The LED or LEDs to turn off: A single LED, such as LED1 All LEDs with ALL_LEDS A group of LEDs in a tuple, such as (LED1, LED2)

Examples

# Turn all LEDs on for 2 seconds, then turn them off
robot.led.on(ALL_LEDS)
wait(2, SECONDS)
robot.led.off(ALL_LEDS)

# Turn off half of the LEDs
robot.led.on(ALL_LEDS)
wait(1, SECONDS)
robot.led.off((LED3, LED4, LED5))
