Visión de IA#

Introducción#

El sensor de visión de IA del robot de codificación VEX AIM detecta y rastrea objetos, colores y AprilTags. Esto le permite analizar su entorno, seguir objetos y reaccionar según los datos visuales detectados. A continuación, se muestra una lista de todos los métodos y propiedades disponibles:

Acciones: Mostrar u ocultar la transmisión de la cámara AI Vision.

Getters – Detectan si el robot está sosteniendo un objeto.

  • get_data – Returns a tuple of detected objects based on a given signature.

  • has_sports_ball – Returns whether the robot has a sports ball.

  • has_any_barrel – Returns whether the robot has any type of barrel.

  • has_blue_barrel – Returns whether the robot has a blue barrel.

  • has_orange_barrel – Returns whether the robot has an orange barrel.

Properties – Object data returned from get_data.

  • exists – Whether the object exists in the current detection as a Boolean.

  • width – Width of the detected object in pixels.

  • height – Height of the detected object in pixels.

  • centerX – X position of the object’s center in pixels.

  • centerY – Y position of the object’s center in pixels.

  • bearing – Horizontal angle relative to the front of the robot in degrees.

  • rotation – Orientation of the object in degrees.

  • originX – X position of the object’s top-left corner in pixels.

  • originY – Y position of the object’s top-left corner in pixels.

  • id – Classification or tag ID of the object.

  • score – Confidence score for AI Classifications (1–100).

  • type – Returns the object’s type (AI, Tag, Color, or Code).

Constructores: definen firmas y códigos de color.

Comportamiento#

show_aivision#

show_aivision displays the AI Vision Sensor’s live data feed on the robot’s screen. The live data feed will cover any other images or text on the screen.

Note: The screen will not display any other images or text unless hide_aivision is used to hide the feed.

Usage:
robot.screen.show_aivision()

Parámetros

Descripción

Este método no tiene parámetros.

# Watch the AI Vision Sensor detect AI Classifications
# and AprilTags as you move the robot
robot.screen.show_aivision()

hide_aivision#

hide_aivision removes the AI Vision Sensor’s live data feed from the robot’s screen.

Usage:
robot.screen.hide_aivision()

Parámetros

Descripción

Este método no tiene parámetros.

# View the AI Vision Sensor's feed for five seconds
robot.screen.show_aivision()
wait(5, SECONDS)
robot.screen.hide_aivision()

tag_detection#

tag_detection enables or disables the AprilTag detection, where the state is a Boolean value.

El sensor puede detectar los ID de AprilTag 0 a 36 de la familia Circle21h7.

Usage:
robot.vision.tag_detection(state)

Parámetros

Descripción

state

  • True Enables AprilTag detection.
  • False Disables AprilTag detection.

robot.screen.set_font(PROP30)

# Cut off APrilTag detection after 5 seconds
while True:
    if robot.timer.time(SECONDS) > 5:
        robot.vision.tag_detection(False)

    robot.screen.clear_screen()
    robot.screen.set_cursor(3, 1)
    apriltags = robot.vision.get_data(ALL_TAGS)

    if apriltags:
        robot.screen.print("AprilTag detected!")
    else:
        robot.screen.print("Nothing detected!")

    wait(0.1, SECONDS)

Captadores#

get_data#

get_data filters the data from the AI Vision Sensor frame to return a tuple. The AI Vision Sensor can detect signatures that include pre-trained objects, AprilTags, or configured Colors and Color Codes.

Las Firmas de color y los Códigos de color deben configurarse primero en la Utilidad AI Vision antes de que puedan usarse con este método.

La tupla almacena objetos ordenados de mayor a menor por ancho, comenzando en el índice 0. Se puede acceder a las propiedades de cada objeto mediante su índice. Si no se detectan objetos coincidentes, se devuelve una tupla vacía.

Usage:
robot.vision.get_data(signature, count)

Parámetros

Descripción

signature

¿De qué firma obtener los datos? Las firmas disponibles son:

  • ALL_VISION - Pelotas deportivas, barriles, robots de codificación VEX AIM, AprilTags, colores y códigos de color
  • ALL_CARGO - Pelotas deportivas y barriles
  • ALL_TAGS - Todas las AprilTags
  • ALL_COLORS - Todas las firmas de color y códigos de color configurados
  • SPORTS_BALL - Solo pelotas deportivas
  • BLUE_BARREL - Solo barriles azules
  • ORANGE_BARREL - Solo barriles naranjas
  • AIM_ROBOT - Todos los robots de codificación VEX AIM
  • TAG0 a TAG37 - Una sola AprilTag con un ID de 0 a 37
  • NAME - Firma de color o código de color donde NAME es el nombre configurado en la Utilidad AI Vision.

count

Opcional. Establece el número máximo de objetos que se pueden devolver, de 1 a 24 (valor predeterminado: 8).

Nota: Las AprilTags 5 a 37 se pueden obtener utilizando las AprilTags impresas de AIM Printables.

# Move forward if a sports ball is detected
while True:
    ball = robot.vision.get_data(SPORTS_BALL)
    if ball:
        robot.move_for(10, 0)
    wait(50, MSEC)

Firmas de color#

A color signature is a unique color that the AI Vision Sensor can recognize. These signatures allow the sensor to detect and track objects based on their color. Once a Color Signature is configured, the sensor can identify objects with that specific color in its field of view. Color signatures are used with get_data to process and detect colored objects in real-time.

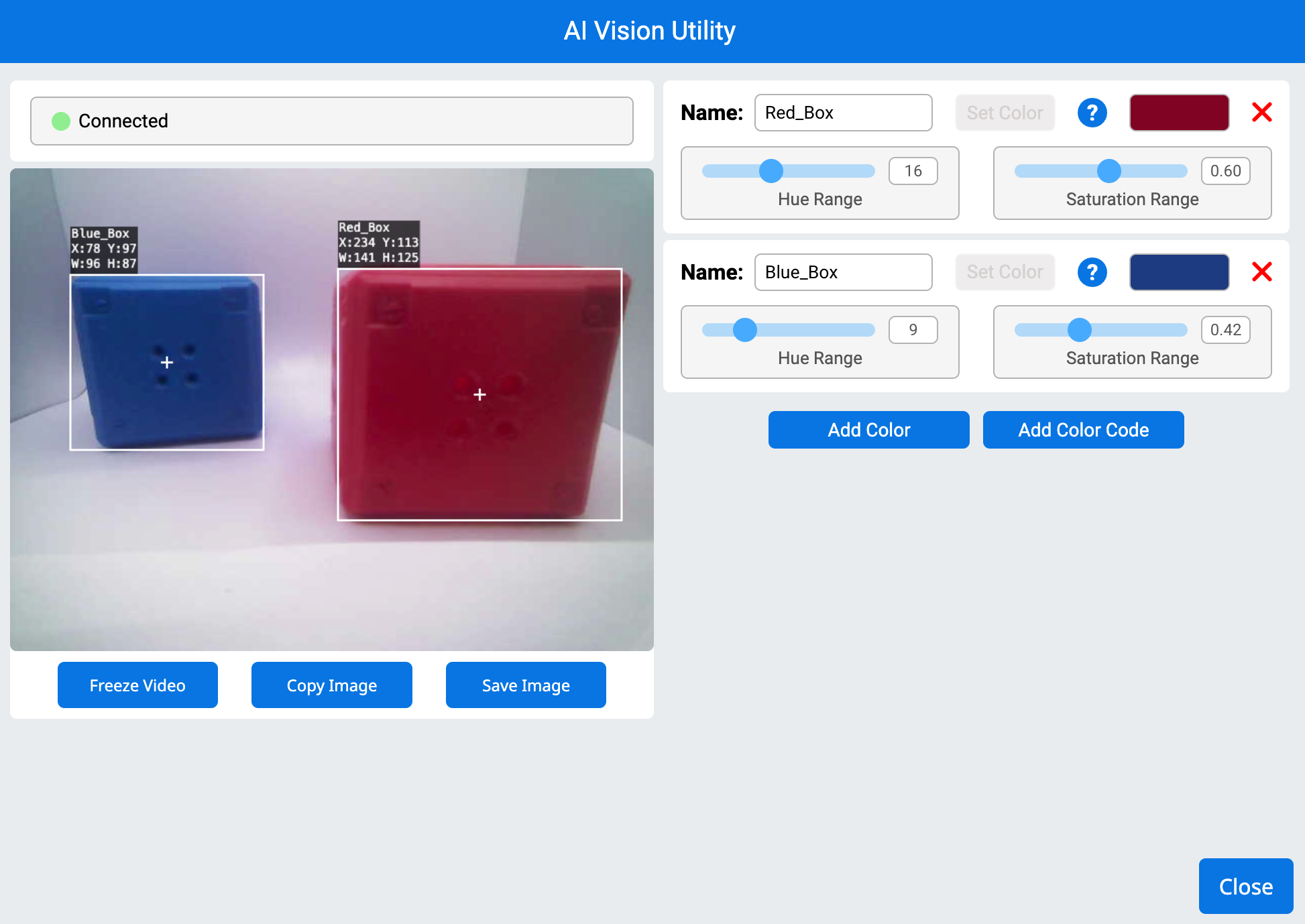

AI Vision Utility muestra un sensor de visión conectado que detecta dos objetos de colores. El lado izquierdo muestra una transmisión de cámara en vivo con un cuadro azul a la izquierda y un cuadro rojo a la derecha, cada uno delineado con cuadros delimitadores blancos. Las etiquetas negras muestran sus respectivos nombres, coordenadas y dimensiones. El lado derecho contiene la configuración de la firma de color, con controles deslizantes para el tono y el rango de saturación para los cuadros rojo y azul. Los botones para añadir colores, congelar vídeo, copiar y guardar la imagen se encuentran en la parte inferior, junto con un botón de cierre en la esquina inferior derecha.

# Display if any objects match the Red_Box signature
while True:
    robot.screen.set_cursor(1, 1)
    robot.screen.clear_row(1)
    # Change to any configured Color Signature
    ai_objects = robot.vision.get_data(Red_Box)
    if ai_objects:
        robot.screen.print("Color signature detected!")

Códigos de color#

Un código de color es un patrón estructurado compuesto por de 2 a 4 firmas de color dispuestas en un orden específico. Estos códigos permiten al sensor de visión de IA reconocer patrones de colores predefinidos. Los códigos de color son útiles para identificar objetos complejos o crear marcadores únicos para la navegación autónoma.

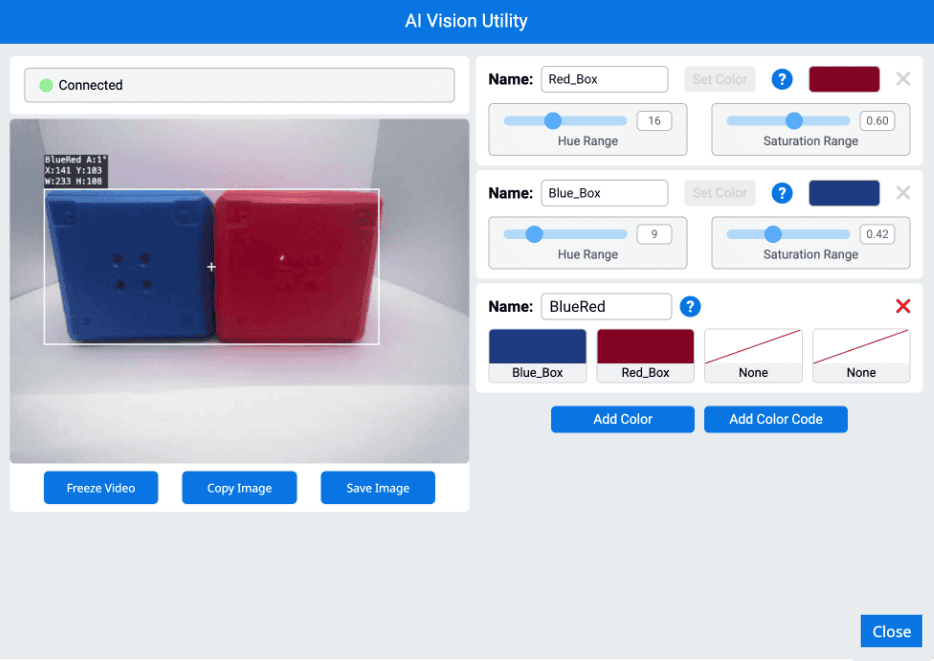

La interfaz de AI Vision Utility muestra un sensor de visión conectado que detecta dos objetos adyacentes, un cuadro azul a la izquierda y un cuadro rojo a la derecha, agrupados en un solo cuadro delimitador blanco etiquetado como BlueRed. La información de detección incluye el ángulo (A:11°), las coordenadas (X:143, Y:103), el ancho (W:233) y la altura (H:108). En el panel derecho, se muestran tres firmas de color: Red_Box, Blue_Box y BlueRed, con rangos de tonalidad y saturación ajustables. La firma BlueRed combina Blue_Box y Red_Box. Debajo de la fuente de vídeo hay botones etiquetados como Congelar vídeo, Copiar imagen, Guardar imagen y Cerrar.

# Display if any objects match the BlueRed code
while True:
    robot.screen.set_cursor(1, 1)
    robot.screen.clear_row(1)
    # Change to any configured Color Code
    ai_objects = robot.vision.get_data(BlueRed)
    if ai_objects:
        robot.screen.print("Color code detected!")

has_sports_ball#

has_sports_ball returns a Boolean indicating whether the robot currently has a sports ball.

  • True – The robot has a sports ball.

  • False – The robot does not have a sports ball.

Usage:
robot.has_sports_ball()

Parámetros

Descripción

Este método no tiene parámetros.

# Kick when the robot has a sports ball
while True:
    if robot.has_sports_ball():
        robot.kicker.kick(MEDIUM)

    wait(50, MSEC)

has_any_barrel#

has_any_barrel returns a Boolean indicating whether the robot currently has any type of barrel.

  • True – The robot has a barrel.

  • False – The robot does not have a barrel.

Usage:
robot.has_any_barrel()

Parámetros

Descripción

Este método no tiene parámetros.

# Push a barrel away when detected
while True:
    if robot.has_any_barrel():
        robot.kicker.place()

    wait(50, MSEC)

has_blue_barrel#

has_blue_barrel returns a Boolean indicating whether the robot currently has a blue barrel.

  • True – The robot has a blue barrel.

  • False – The robot does not have a blue barrel.

Usage:
robot.has_blue_barrel()

Parámetros

Descripción

Este método no tiene parámetros.

# Push a blue barrel away when detected
while True:
    if robot.has_blue_barrel():
        robot.kicker.place()

    wait(50, MSEC)

has_orange_barrel#

has_orange_barrel returns a Boolean indicating whether the robot currently has an orange barrel.

  • True – The robot has an orange barrel.

  • False – The robot does not have an orange barrel.

Usage:
robot.has_orange_barrel()

Parámetros

Descripción

Este método no tiene parámetros.

# Push an orange barrel away when detected
while True:
    if robot.has_orange_barrel():
        robot.kicker.place()

    wait(50, MSEC)

Propiedades#

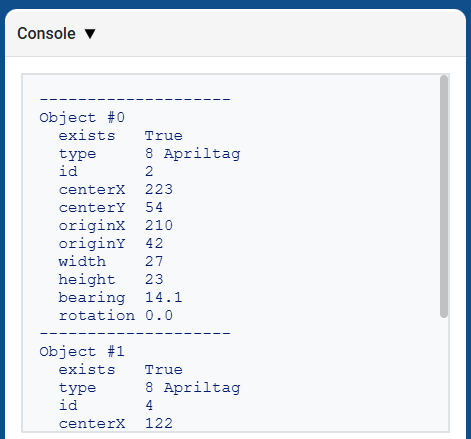

There are twelve properties that are included with each object stored in a tuple after the robot.vision.get_data method is used.

Some property values are based off of the detected object’s position in the AI Vision Sensor’s view at the time that robot.vision.get_data was used. The AI Vision Sensor has a resolution of 320 by 240 pixels.

Un barril azul con una franja naranja está centrado en el marco, rodeado por un cuadro delimitador negro.

.exists#

.exists returns a Boolean indicating if the index exists in the tuple or not.

  • True: The index exists.

  • False: The index does not exist.

# Check if at least two objects are detected
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)
    ai_objects = robot.vision.get_data(ALL_CARGO)

    if ai_objects:
        if ai_objects[1].exists:
            robot.screen.print("More than 2")
        else:
            robot.screen.print("Less than 2")
    wait(0.1, SECONDS)

.width#

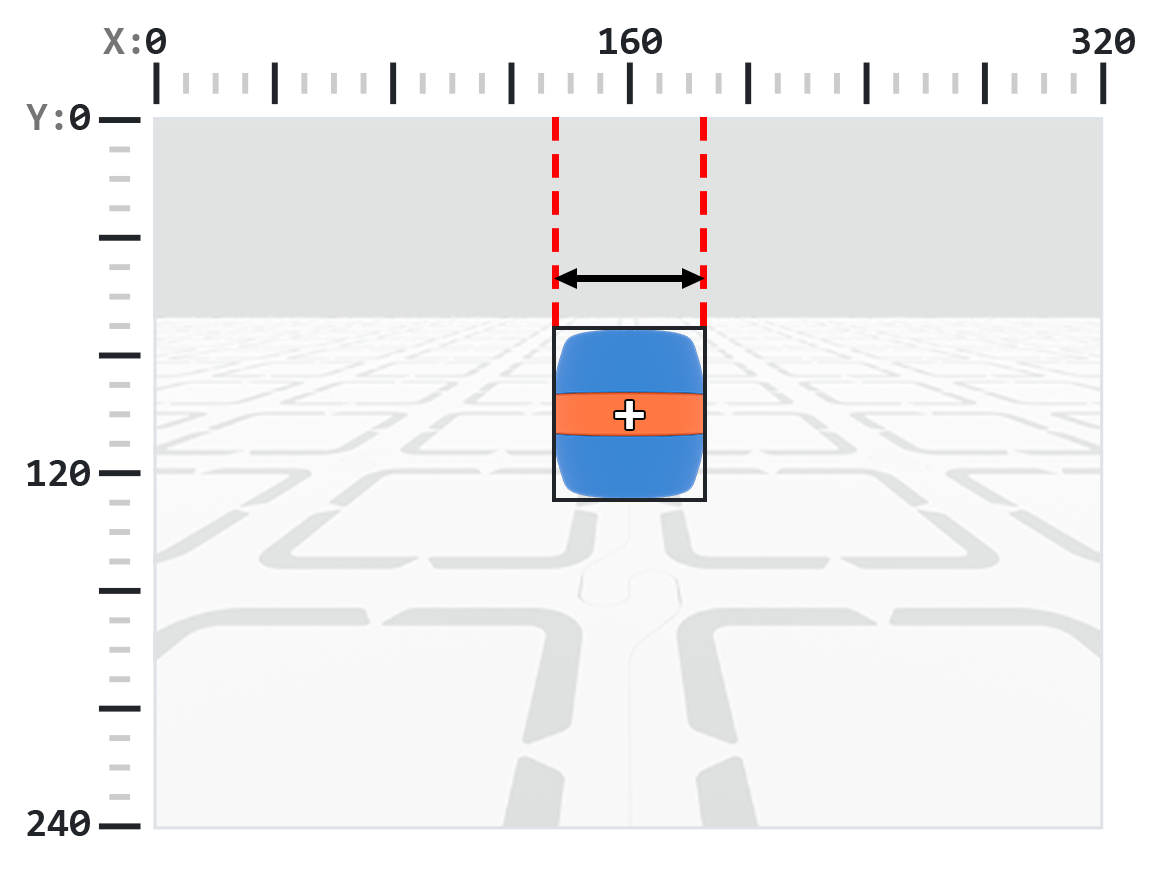

.width returns the width of the detected object in pixels, which is an integer between 1 and 320.

Un barril azul con una raya naranja está centrado en el marco, rodeado por un recuadro negro. Dos líneas verticales rojas discontinuas se extienden desde la parte superior del cuadro hasta los bordes izquierdo y derecho del cuadro delimitador. Una flecha negra de dos puntas entre estas líneas indica la medida del ancho.

# Move towards a Blue Barrel until its width is
# larger than 100 pixels
while True:
    barrel = robot.vision.get_data(BLUE_BARREL)

    if barrel:
        if barrel[0].width < 100:
            robot.move_at(0)
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.height#

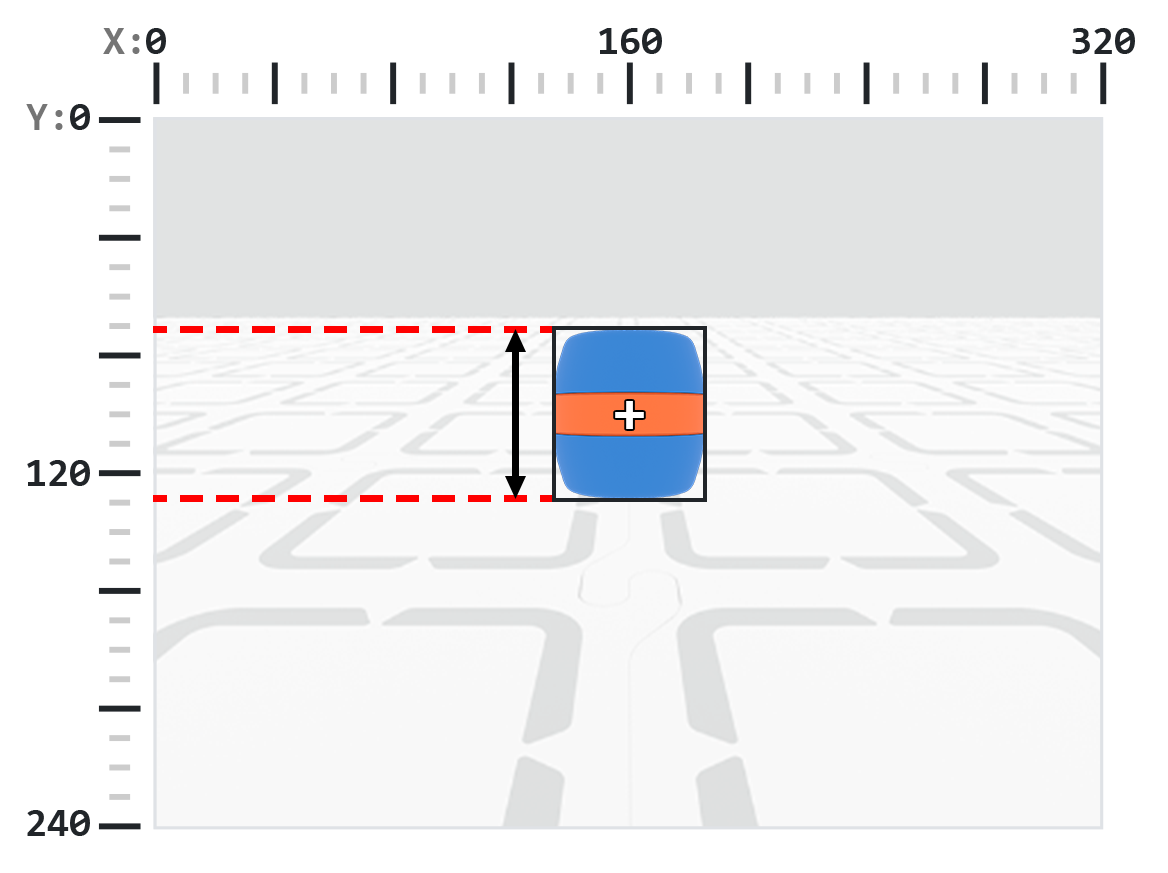

.height returns the height of the detected object in pixels, which is an integer between 1 and 240.

Un barril azul con una raya naranja está centrado en el marco, rodeado por un recuadro negro. Dos líneas discontinuas rojas horizontales se extienden desde el lado izquierdo del marco hasta los bordes superior e inferior del cuadro delimitador. Una flecha negra de dos puntas entre estas líneas indica la medición de la altura.

# Move towards a Blue Barrel until its height is
# larger than 100 pixels
while True:
    barrel = robot.vision.get_data(BLUE_BARREL)

    if barrel:
        if barrel[0].height < 100:
            robot.move_at(0)
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.centerX#

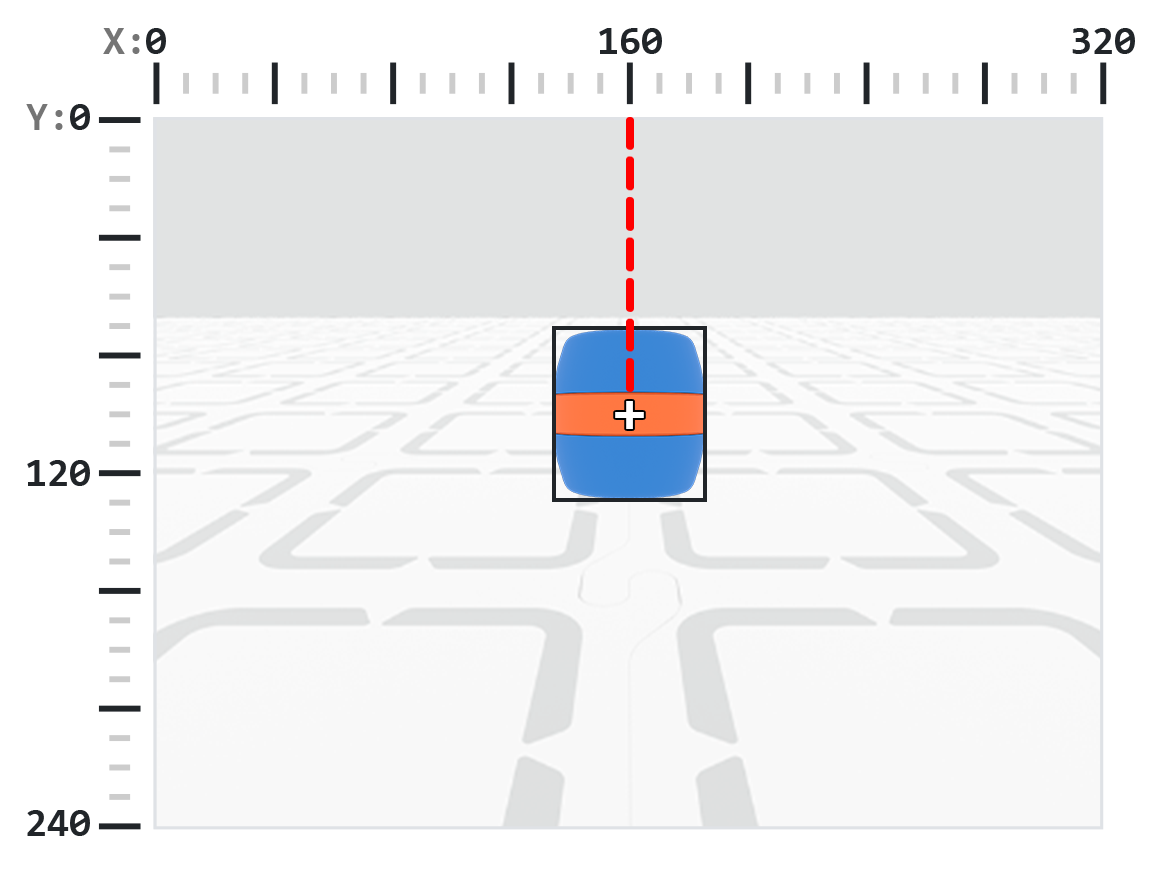

.centerX returns the x-coordinate of the detected object’s center in pixels, which is an integer between 0 and 320.

Un barril azul con una franja naranja está centrado en el marco, rodeado por un recuadro negro. Una línea discontinua roja vertical se extiende desde la parte superior del marco hasta el centro del cuadro delimitador, indicando la coordenada X del centro.

# Turn slowly until a Blue Barrel is centered in
# front of the robot
robot.set_turn_velocity(30)
robot.turn(RIGHT)

while True:
    barrel = robot.vision.get_data(BLUE_BARREL)

    if barrel:
        if 140 < barrel[0].centerX < 180:
            robot.stop_all_movement()

    wait(10,MSEC)

.centerY#

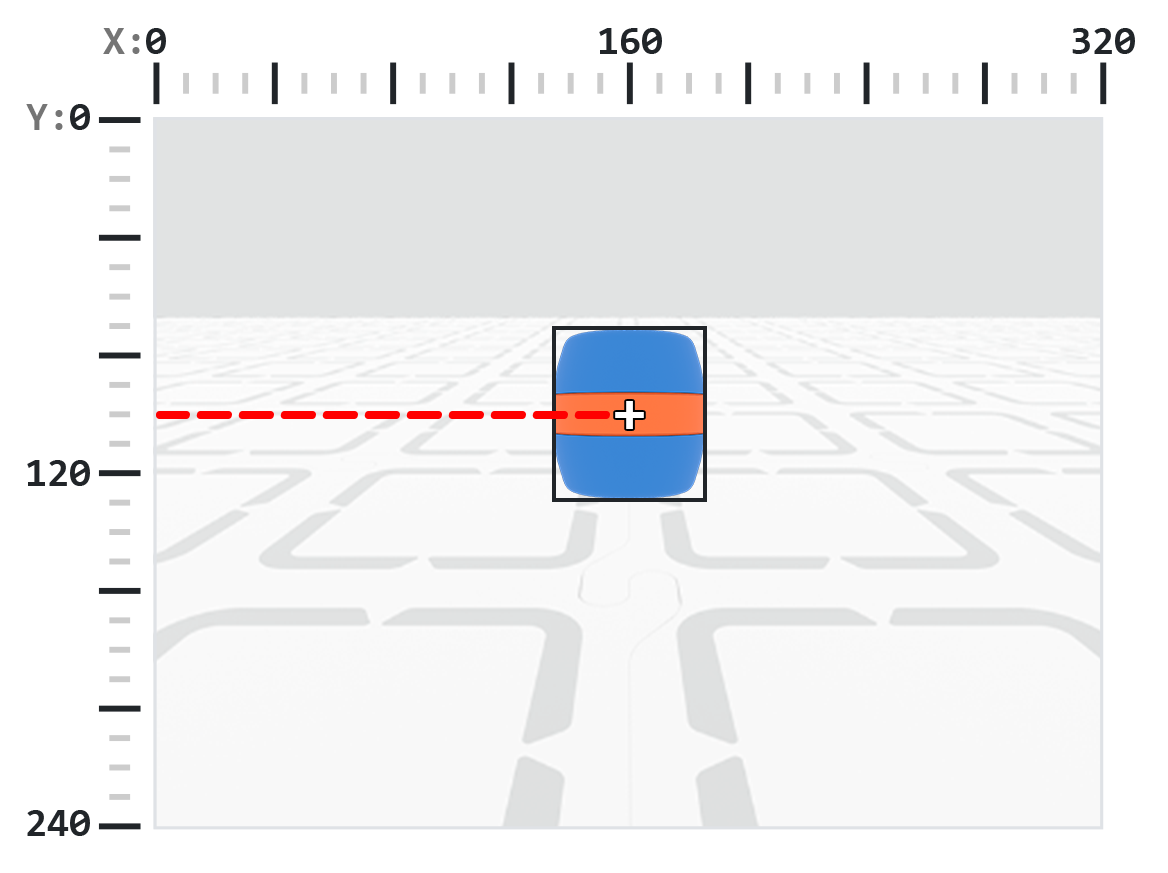

.centerY returns the y-coordinate of the detected object’s center in pixels, which is an integer between 0 and 240.

Un barril azul con una franja naranja está centrado en el marco, rodeado por un recuadro negro. Una línea discontinua roja horizontal se extiende desde el lado izquierdo del marco hasta el centro del cuadro delimitador, indicando la coordenada Y del centro.

# Move towards a Blue Barrel until its
# center y-coordinate is more than 140 pixels
while True:
    barrel = robot.vision.get_data(BLUE_BARREL)

    if barrel:
        if barrel[0].centerY < 140:
            robot.move_at(0)
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.bearing#

.bearing returns a float representing how far an object is to the left or right of the center of the AI Vision Sensor’s view as a degree. A value of 0 means it’s centered, positive values mean the object is to the right, and negative values mean the object is to the left.

ajustes ajustes
# Turn to keep the Blue Barrel directly in front
robot.set_turn_velocity(40)
while True:
    vision_data = robot.vision.get_data(BLUE_BARREL)

    if vision_data:

        if vision_data[0].bearing > 5:
            robot.turn(RIGHT)
        elif vision_data[0].bearing < -5:
            robot.turn(LEFT)
        else:
            robot.stop_all_movement()

    else:
        robot.stop_all_movement()

    wait(0.1, SECONDS)

.rotation#

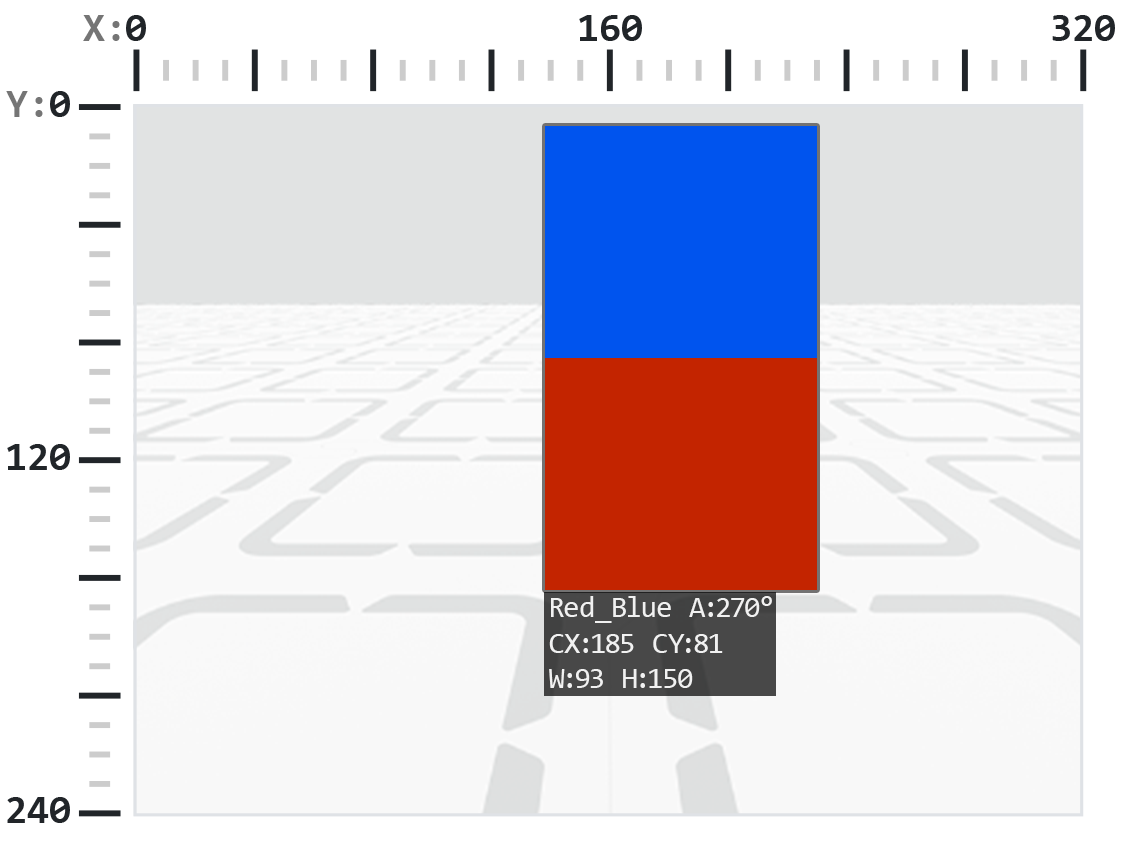

.rotation returns the object’s orientation on the AI Vision Sensor’s viewing plane, measured in degrees from 0 to 359. A Color Code is 0° when its colors are arranged in a horizontal line (e.g., Red–Blue). If the colors are rotated, the angle changes (e.g., arranging Blue-Red returns 180°).

Para el ejemplo siguiente, el código de color se ha configurado con rojo a la izquierda y azul a la derecha.

En esta imagen, colocar azul encima del rojo equivale a rotar el código de color original 270 grados hacia la derecha.

Una interfaz de cámara muestra un objeto apilado verticalmente con una mitad superior azul y una mitad inferior roja, centradas en el marco. Una etiqueta debajo del objeto dice Red_Blue A:270° CX:185 CY:81 W: 93 H:150, indicando el nombre del objeto, el ángulo de rotación, las coordenadas X e Y del centro, el ancho y la altura. Las líneas de cuadrícula y los ejes numéricos marcan las dimensiones de la imagen, con X que van de 0 a 320 e Y de 0 a 240.

# Slide left or right depending on how a Color Code (BlueRed)
# is rotated on the vertical plane
while True:
    # Original Color Code is Red to the left, Blue to the right
    code = robot.vision.get_data(BlueRed)

    if code:
        # Check if Color Code is now Red on top of Blue
        if 50 < code[0].rotation < 100 :
            robot.move_at(90)

        # Check if Color Code is now Blue on top of Red
        elif 270 < code[0].rotation < 330 :
            robot.move_at(270)

        else:
            robot.stop_all_movement()
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.originX#

.originX returns the x-coordinate of the top-left corner of the detected object’s bounding box in pixels, which is an integer between 0 and 320.

Un barril azul con una raya naranja está centrado en el marco, rodeado por un recuadro negro. Una línea discontinua roja vertical se extiende desde la parte superior del marco hasta el borde izquierdo del cuadro delimitador, indicando la coordenada X del origen del cuadro delimitador.

# Display if an Orange Barrel is to the
# left or the right
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1,1)

    orange_barrel = robot.vision.get_data(ORANGE_BARREL)

    if orange_barrel:
        if orange_barrel[0].originX < 160:
            robot.screen.print("To the left!")
        else:
            robot.screen.print("To the right!")

    wait(50, MSEC)

.originY#

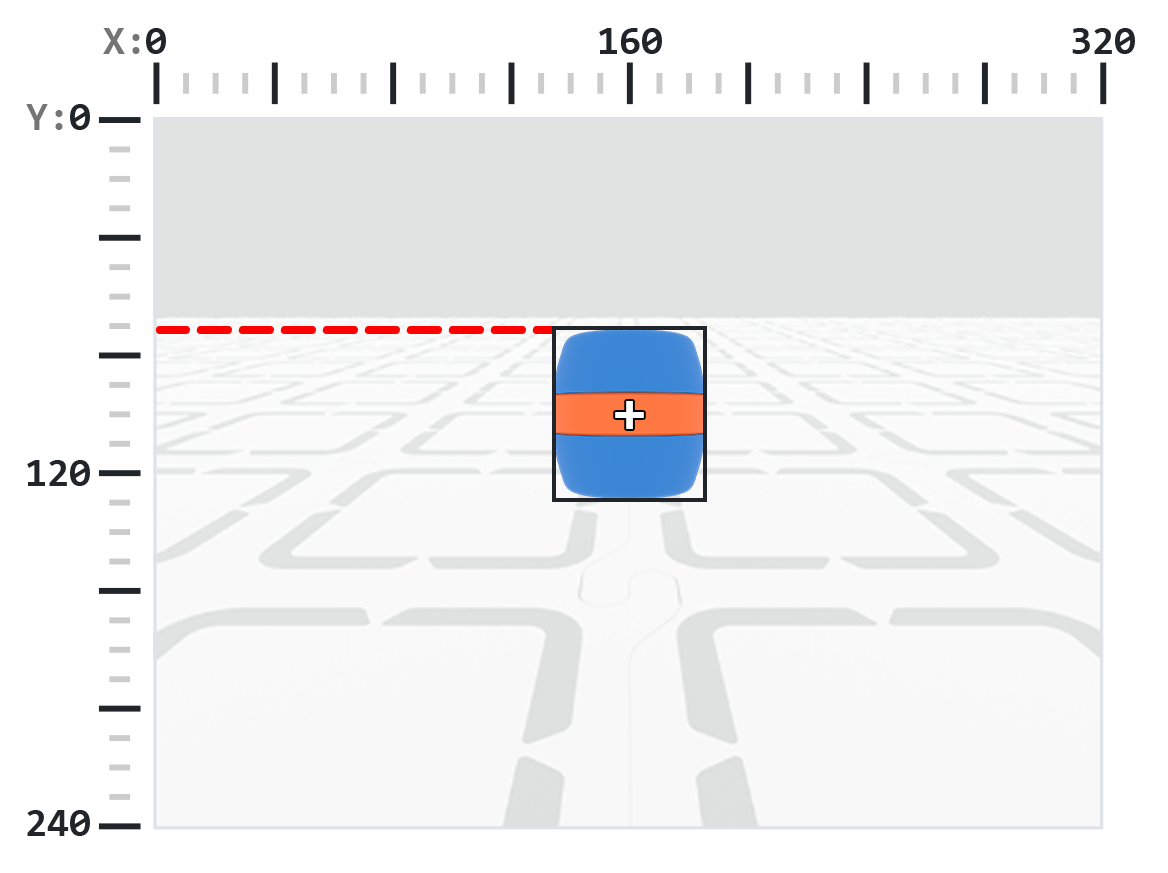

.originY returns the y-coordinate of the top-left corner of the detected object’s bounding box in pixels, which is an integer between 0 and 240.

Un barril azul con una raya naranja está centrado en el marco, rodeado por un recuadro negro. Una línea discontinua roja horizontal se extiende desde el lado izquierdo del marco hasta el borde superior del cuadro delimitador, indicando la coordenada Y del origen del cuadro delimitador.

# Display if an Orange Barrel is close or far
# from the robot
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)

    orange_barrel = robot.vision.get_data(ORANGE_BARREL)

    if orange_barrel:
        if orange_barrel[0].originY < 80:
            robot.screen.print("Far")
        else:
            robot.screen.print("Close")

    wait(50, MSEC)

.id#

.id returns the ID of the detected AI Classification or AprilTag as an integer.

For an AprilTag, the .id property represents the detected AprilTag’s ID number in the range of 0 to 37. For an AI Classification, the id corresponds to the predefined id as shown below.

Clasificación de IA

identificación

Firma

Pelota

0

SPORTS_BALL

Barril azul

1

BLUE_BARREL

Barril de naranja

2

ORANGE_BARREL

Robot AIM

3

AIM_ROBOT

# Move forward when AprilTag 1 is detected
while True:
    apriltags = robot.vision.get_data(ALL_TAGS)

    if apriltags:
        if apriltags[0].id == 1:
            robot.move_at(0)
    else:
        robot.stop_all_movement()

    wait(50, MSEC)

.score#

.score returns the confidence score of the detected AI Classification as an integer between 1 and 100.

# Look confident if an Orange Barrel is detected
while True:
    barrel = robot.vision.get_data(ORANGE_BARREL)

    if barrel:
        if barrel[0].score > 95:
            robot.screen.show_emoji(CONFIDENT)
        else:
            robot.screen.hide_emoji()

    wait(50, MSEC)

.type#

.type returns what type of object is detected. It will return one of the following:

Tipo de objeto

Objetos incluidos

AiVision.AI_OBJECT

- Sports balls
- Blue barrels
- Orange barrels

AiVision.TAG_OBJECT

- AprilTags

AiVision.COLOR_OBJECT

- Color signatures

AiVision.CODE_OBJECT

- Color codes

# Display if an AprilTag or AI Classification
# is detected
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)
    vision_data = robot.vision.get_data(ALL_VISION)
    if vision_data:
        if vision_data[0].type == AiVision.AI_OBJECT:
            robot.screen.print("AI Object!")
        elif vision_data[0].type == AiVision.TAG_OBJECT:
            robot.screen.print("AprilTag!")
    wait(0.1, SECONDS)

# Display a list of all detected objects
while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)
    vision_data = robot.vision.get_data(ALL_VISION)

    if vision_data:
        for obj in vision_data:
            if obj.type == AiVision.AI_OBJECT:
                robot.screen.print("- AI Object")
            elif obj.type == AiVision.TAG_OBJECT:
                robot.screen.print("- AprilTag")
            robot.screen.next_row()

    wait(0.1, SECONDS)

Constructores#

Creating a Color Signature#

A new Color Signature is created using the Colordesc constructor and then registered with the AI Vision Sensor using the color_description method. A Colordesc object defines 1 of up to 7 detectable color signatures for the sensor, but it must be explicitly set using color_description to take effect.

Colordesc Usage:
Colordesc(index, red, green, blue, hangle, hdsat)

Parámetro

Descripción

index

Un número entero del 1 al 7 que representa el índice de la Firma de Color. Si dos Firmas de Color usan el mismo índice, la segunda prevalecerá sobre la primera.

red

Un número entero de 0 a 255 para el componente rojo del color.

green

Un número entero de 0 a 255 para el componente verde del color.

blue

Un número entero de 0 a 255 para el componente azul del color.

hangle

Un flotante de 1 a 40 que representa el rango de tonos en grados.

hdsat

Un flotante de 0,10 a 1,00 que representa el rango de saturación.

color_description Usage:
robot.vision.color_description(object)

Parámetro

Descripción

object

The Colordesc object to set as a detectable Color Signature.

# Detect a red object
red_box = Colordesc(1, 207, 19, 25, 10.00, 0.20)
robot.vision.color_description(red_box)

while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)

    red_boxes = robot.vision.get_data(red_box)

    if red_boxes:
        robot.screen.print("Red detected!")
    else:
        robot.screen.print("No red detected.")

    wait(0.2, SECONDS)

Creating a Color Code#

A new Color Code is created using the Codedesc constructor and then activated using the code_description method. A Color Code groups 2 to 4 existing Colordesc objects into a single identifier that the AI Vision Sensor can detect as a sequence, but it must be explicitly set using code_description to take effect.

Codedesc Usage:
Codedesc(index, c1, c2, c3, c4, c5)

Parámetro

Descripción

index

The index of the Color Code, from 1 to 8. Note: If you create two Codedesc objects with the same index, the second will override the first.

c1

The first Colordesc object in the code.

c2

The second Colordesc object in the code.

c3

Optional. A third Colordesc object.

c4

Optional. A fourth Colordesc object.

code_description Usage:
robot.vision.code_description(object)

Parámetro

Descripción

object

A Codedesc object to register as a detectable Color Code.

# Create Color Signatures
red_box = Colordesc(1, 207, 19, 25, 10.00, 0.20)
purple_box = Colordesc(2, 98, 18, 227, 10.00, 0.20)

robot.vision.color_description(red_box)
robot.vision.color_description(purple_box)

# Detect a red_purple Color Code
red_purple = Codedesc(1, red_box, purple_box)
robot.vision.code_description(red_purple)

while True:
    robot.screen.clear_screen()
    robot.screen.set_cursor(1, 1)

    code_objects = robot.vision.get_data(red_purple)

    if code_objects:
        robot.screen.print("Code detected!")
    else:
        robot.screen.print("No code detected.")

    wait(0.2, SECONDS)
