LED

Introducción

El robot de codificación VEX AIM cuenta con LED (diodos emisores de luz) programables que cambian de color según las condiciones del proyecto. Estos LED pueden configurarse individualmente o todos a la vez para proporcionar información visual o indicar el estado del robot.

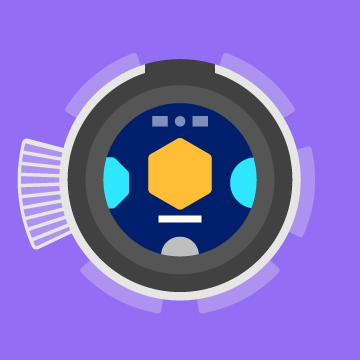

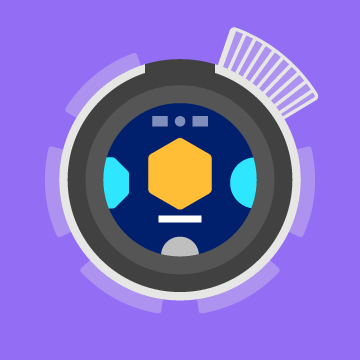

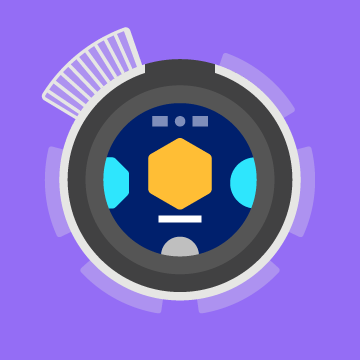

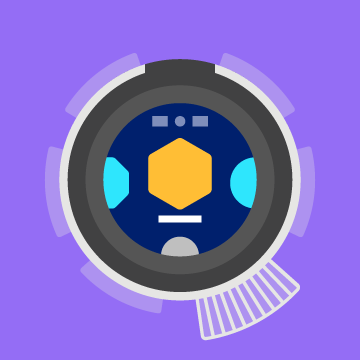

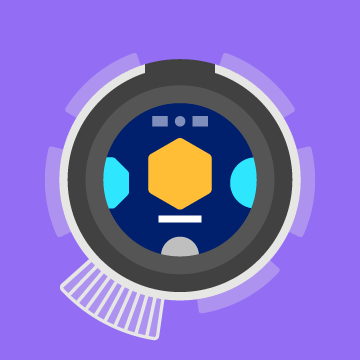

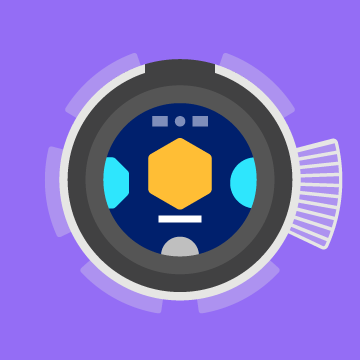

Nombres de LED:

LED1	LED2	LED3
LED4	LED5	LED6

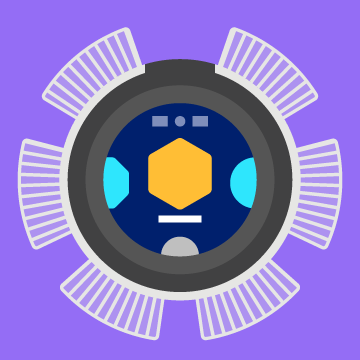

ALL_LEDS

• on – Turns one or all LEDs on and sets their color.

• off – Turns one or all LEDs off.

Comportamiento

on

on establece el color de uno o todos los LED del robot.

Uso:
robot.led.on(led, color)

Parámetro	Descripción
led	The LED or LEDs to turn on. You can use a single LED like LED1, all LEDs with ALL_LEDS, or a group of LEDs in a tuple like (LED1, LED2). See all available LED names [here].(#introduction).
color	Optional. Sets the LED color. Options include: BLACK BLUE CYAN GREEN ORANGE PURPLE RED TRANSPARENT WHITE (default) YELLOW You can also specify a custom color.

# Turn LEDs green while the screen is pressed
while True:
    if robot.screen.pressing():
        robot.led.on(ALL_LEDS, GREEN)
    else:
        robot.led.on(ALL_LEDS, BLACK)

    wait(50, MSEC)

# Turn two LEDs red
robot.led.on((LED3, LED4), RED)

off

off apaga uno o todos los LED del robot.

Uso:
robot.led.off(led)

Parámetros	Descripción
led	The LED or LEDs to turn off. You can use a single LED like LED1, all LEDs with ALL_LEDS, or a group of LEDs in a tuple like (LED1, LED2). See all available LED names [here].(#introduction).

# Turn the LEDs on for 2 seconds.
robot.led.on(ALL_LEDS)
wait(2, SECONDS)
robot.led.off(ALL_LEDS)

# Turn off half the LEDs
robot.led.on(ALL_LEDS)
wait(1, SECONDS)
robot.led.off((LED3, LED4, LED5))
