Macro#
Introduction#
The VEX AIR Drone includes prebuilt actions, or macros, that combine multiple behaviors into a single block.
Below is a list of all available blocks:
navigate to — Moves the drone to the specified x, y, and z coordinates, then orients the drone to the desired heading.
navigate to#
The navigate to block moves the drone to the specified x, y, and z coordinates, then orients the drone to the desired heading.
move forward stack block#
navigate to x: [0] y: [0] z: [0] heading: [0]
Parameters |
Description |
|---|---|
x |

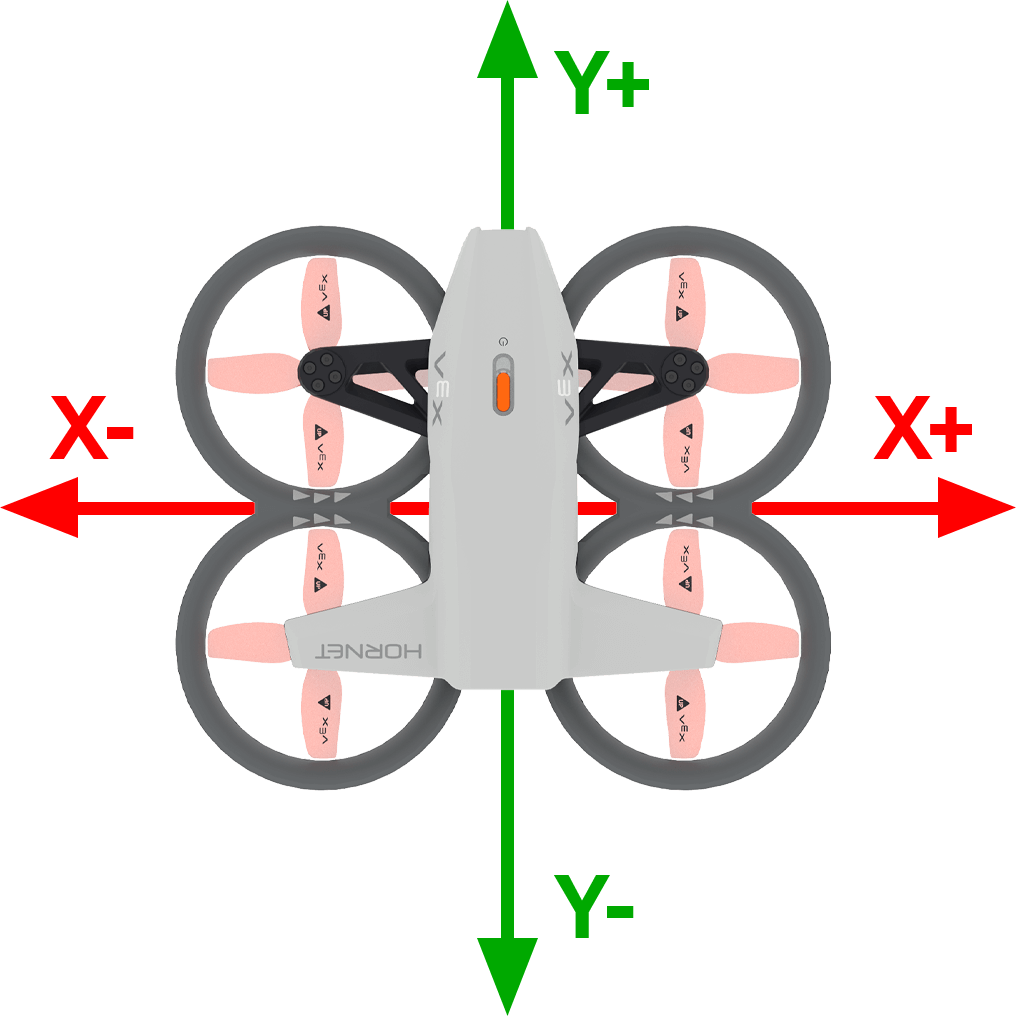

The x coordinate that the drone will move to in millimeters. |
y |
The y coordinate that the drone will move to in millimeters. |
z |

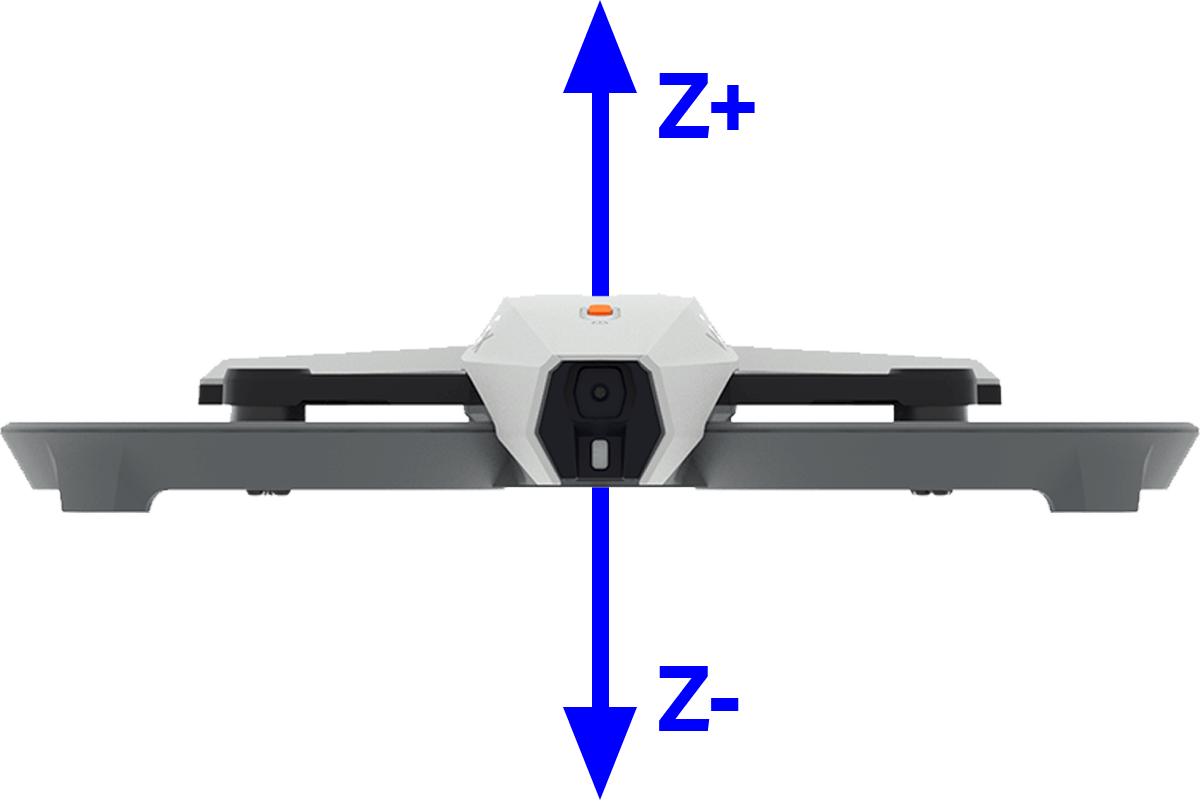

The z coordinate that the drone will climb to in millimeters. |
heading |
The heading the drone will face in degrees from 0 to 360. |
Example
Play sound file 1 and don’t wait. wait for 2 seconds. If sound is still active, then stop sound.#
when started :: hat events
[Climb upwards diagonally, then turn around.]
take off to [500] [mm v] ▶
navigate to x: [0] y: [500] z: [1000] heading: [180]
