Screen#

Introduction#

The VEX AIR Drone Controller’s screen provides blocks for displaying text, managing the cursor, drawing shapes, and handling touch interactions.

Note: If the VEX AIR Drone is paired with a controller, a timer will be displayed at the top of the print screen indicating the current project’s elapsed time. Any text or drawings will appear behind the timer.

Below is a list of all available blocks, grouped by functionality:

Cursor Print - Manage text display using a row-and-column cursor system.

XY Print - Print text at pixel-based coordinates.

  • print at — Displays text at a specified x and y coordinate.

  • set screen origin — Changes the origin (0, 0) used for drawing and printing.

Settings - Customize text formatting and screen display.

Draw - Create graphics and visual elements.

Touch - Detect screen interactions.

  • screen pressed? — Returns whether the screen is currently being pressed.

  • screen position — Retrieves the x and y coordinates where the screen was last touched.

  • when screen event — Triggers when the screen is pressed or released.

Cursor Print#

print#

The print block displays text on the controller’s screen at the current cursor position and font.

print stack block#
    print [VEXcode] on screen ▶

Parameters

Description

value

The text, number, or variable value to display on the screen.

expanding arrow

Expand the block to read and set cursor to next row and make the cursor move to the next row after this block.

Example

When started, displays the message ‘Hello, drone!’ at the starting cursor position on the screen.#
    when started :: hat events
    [Display a message at the starting cursor position.]
    print [Time to fly!] on screen ▶

Shows the drone.screen.print method with the word "Time to Fly!"

set cursor to row column#

When using the set cursor to row column block, the cursor is placed at a specific row and column on the screen. The amount of characters that can fit on a screen depends on the selected font. The font size can be changed using the set font block. With the default monospaced medium font, up to 18 rows and 53 columns can be displayed clearly. Text placed beyond this range may be cut off or become difficult to read.

Set cursor stack block#
    set cursor to row [1] column [1] on screen

Parameters

Description

row

The row of the cursor.

column

The column of the cursor.

Examples

When started, moves the cursor to row 7, column 25 on the screen and prints ‘Row 7, Column 25’.#
    when started :: hat events
    [Display text starting at Row 7 Column 25.]
    set cursor to row [7] column [25] on screen
    print [Row 7, Column 25] on screen ▶

Shows the drone.screen.print_at method with Row 7, Column 25 printed at the row 3 column 2

set cursor to next row#

The set cursor to next row block moves the cursor to column 1 on the next row on the controller’s screen.

set cursor to next row stack block#
    set cursor to next row on screen

Parameters

Description

This block has no parameters.

Example

When started, prints ‘Line 1’ on the screen, moves the cursor to the next row, and then prints ‘Line 2’.#
    when started :: hat events
    [Display two lines of text.]
    print [Line 1] on screen ▶
    set cursor to next row on screen
    print [Line 2] on screen ▶

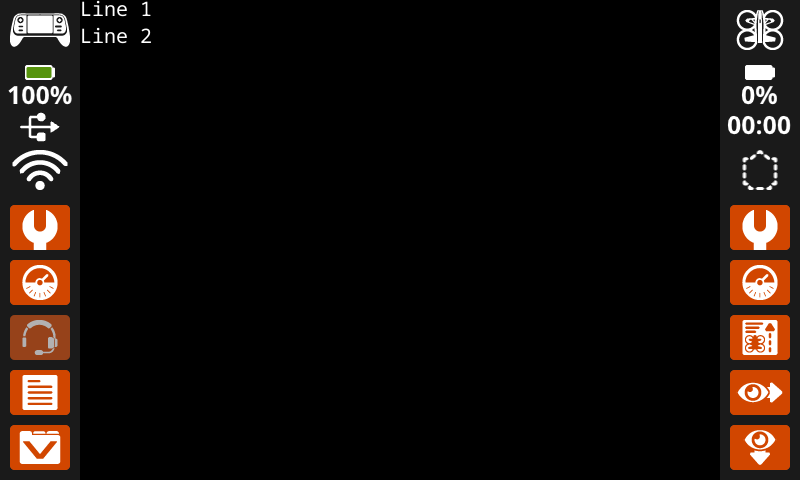

Shows the controller.screen.next_row method with Line 1 and Line 2 printed on the drone screen in line 1 and line 2 respectively.

clear row#

The clear row block clears a row of text on the controller’s screen.

Clear row stack block#
    clear row [1] on screen

Parameters

Description

row

The row number to clear.

Example

When started, prints text on two rows. The first row remains, while the second row disappears after 3 seconds.#
    when started :: hat events
    [Display text on two rows.]
    print [This text stays] on screen ▶
    set cursor to next row on screen
    print [This text disappears] on screen ▶
    wait [3] seconds
    clear row [2] on screen

screen cursor column#

The screen cursor column returns the cursor’s current column position.

screen cursor column reporter block#
    (screen cursor column)

Parameters

Description

This block has no parameters.

Example

When started, moves the cursor to row 7, column 25 on the screen and prints the current cursor column number.#
    when started :: hat events
    [Display the cursor's current column.]
    set cursor to row [7] column [25] on screen
    print (screen cursor column) on screen ▶

Shows the drone.screen.print_at method by showing column number 25 when you set curSor to 7,25

screen cursor row#

The screen cursor row block returns the cursor’s current row position.

screen cursor row reporter block#
    (screen cursor row)

Parameters

Description

This block has no parameters.

Example

When started, moves the cursor to row 7, column 25 on the screen and prints the current cursor row number.#
    when started :: hat events
    [Display the cursor's current row.]
    set cursor to row [7] column [25] on screen
    print (screen cursor row) on screen ▶

Shows the drone.screen.print_at method by showing column number 7 when you set curSor to 7,25

XY Print#

set screen origin#

The set screen origin sets the origin (0, 0) used for drawing or printing on the controller’s screen. By default, drawing or printing blocks consider the top left corner of the screen as the origin. This block can reset the origin to an alternate (x, y) screen coordinate location.

set screen origin stack block#
    set screen origin x:[0] y:[0]

Parameters

Description

x

The x-coordinate in pixels to set the new origin to.

y

The y-coordinate in pixels to set the new origin to.

Example

When started, sets the screen origin to (320, 240) and draws a rectangle at the new origin with top-left corner at (0,0), width 80 pixels, and height 40 pixels.#
    when started :: hat events
    [Set the origin to the center of the screen.]
    set screen origin x:[320] y:[240]
    [Draw a rectangle at the new origin.]
    draw rectangle [0] [0] [80] [40] on screen

The controller's screen shows a white rectangle with the upper left corner in the center.

Settings#

clear screen#

The clear screen block clears the controller’s screen of all drawings, text, and images.

clear screen block#
    clear screen

Parameters

Description

This block has no parameters.

Example

When started, draws a circle with center (120,120) and radius 40 pixels. After 2 seconds, the screen is cleared.#
    when started :: hat events
    [Draw a circle, and clear it after 2 seconds.]
    draw circle [320] [240] [80] on screen
    wait [2] seconds
    clear screen

wait for screen to render#

The wait for screen to render block prevents any following screen blocks from displaying and then shows all of their output at once when it is used again.

Note: Using this block changes the project so that all subsequent screen blocks will remain hidden until the wait for screen to render block is used again.

    wait for screen to render

Parameters

Description

This block has no parameters.

Example

When started, draws a circle with center (120,120) and radius 40 pixels. After 2 seconds, the screen is cleared.#
    when started :: hat events
    [Display text and images when button 7 is pressed.]
    wait for screen to render
    print [Screen rendered!] on screen ▶
    draw circle [320] [240] [80] on screen
    wait until <controller button [7 v] pressed?>
    wait for screen to render

The controller's screen shows a white rectangle with the upper left corner in the center.

fill screen#

The fill screen block clears the controller’s screen of all drawings and text, then changes the background to a specified color.

The fill screen block#
    fill screen with [red v]

Parameters

Description

color

The color to change the background to:

  • red
  • green
  • blue
  • black
  • white
  • yellow
  • orange
  • purple
  • cyan

Example

    when started :: hat events
    [Say "Hello" then turn screen green.]
    print [Hello] on screen ▶
    wait [2] seconds
    fill screen with [green v]

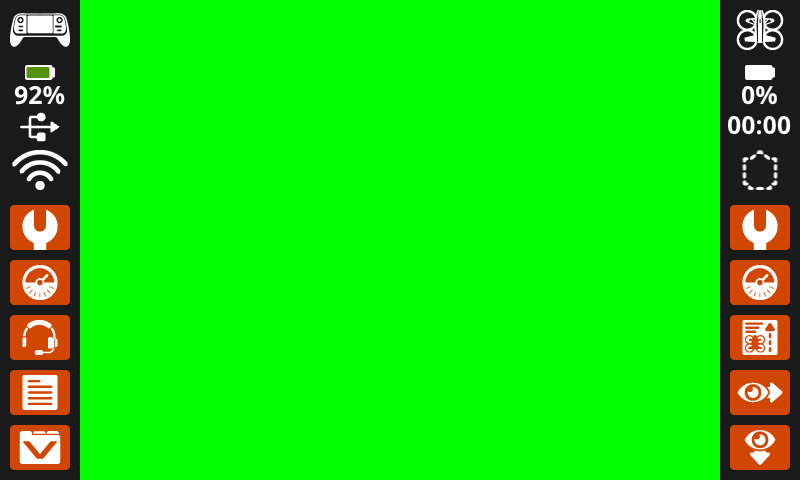

The controller's screen has the print area filled with green.

set font#

The set font block sets the font and size used for displaying text on the controller’s screen. This font will apply to all subsequently printed text.

set font stack block#
    set font to [monospaced v] [medium v] on screen

Parameters

Description

type

The font type:

  • monospaced
  • proportional

size

The font size (shown below):

  • super small
  • extra small
  • small
  • medium
  • large
  • extra large
  • super large

The controller screen printed numbers and letters with MONO 12 font. On the bottom of the screen, it is 90 across and 37 rows.
monospaced super small

The controller screen printed numbers and letters with MONO 15 font. On the bottom of the screen, it is 70 across and 28 rows.
monospaced extra small

The controller screen printed numbers and letters with MONO 20 font. On the bottom of the screen, it is 52 across and 22 rows.
monospaced small

The controller screen printed numbers and letters with MONO 24 font. On the bottom of the screen, it is 44 across and 18 rows.
monospaced medium

The controller screen printed numbers and letters with MONO 30 font. On the bottom of the screen, it is 34 across and 14 rows.
monospaced large

The controller screen printed numbers and letters with MONO 40 font. On the bottom of the screen, it is 25 across and 11 rows.
monospaced extra large

The controller screen printed numbers and letters with MONO 60 font. On the bottom of the screen, it is 16 across and 7 rows.
monospaced super large

The controller screen printed numbers and letters with PROP 20 font. On the bottom of the screen, it is 58 across and 22 rows.
proportional small

The controller screen printed numbers and letters with PROP 24 font. On the bottom of the screen, it is 45 across and 18 rows.
proportional medium

The controller screen printed numbers and letters with PROP 30 font. On the bottom of the screen, it is 37 across and 14 rows.
proportional large

The controller screen printed numbers and letters with PROP 40 font. On the bottom of the screen, it is 28 across and 11 rows.
proportional extra large

The controller screen printed numbers and letters with PROP 60 font. On the bottom of the screen, it is 19 across and 7 rows.
proportional super large

Example

When started, sets the font to ‘monospaced extra large’ and prints ‘VEX’ on the screen.#
    when started :: hat events
    [Display text using a larger font.]
    set font to [monospaced v] [extra large v] on screen
    print [VEX] on screen ▶

The controller's screen shows the word VEX in Mono 40 font in the upper left corner.

set print precision#

The set print precision block sets the precision formatting used for displaying numbers on the controller’s screen. This print precision will apply to all subsequently printed numbers.

set print precision stack block#
    set print precision to [0.1 v] on screen

Parameters

Description

precision

Sets the print precision to:

  • 1
  • 0.1
  • 0.01
  • 0.001
  • All Digits

Example

When started, sets print precision to two decimal places and prints 1/3 as 0.33 on the screen.#
    when started :: hat events
    [Print 1/3 as 0.33.]
    set print precision to [0.01 v] on screen
    print ([1] [math_division v] [3]) on screen ▶

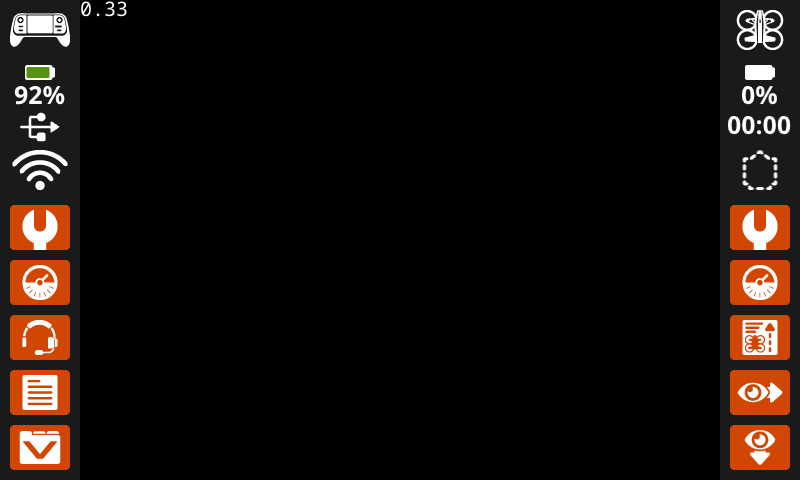

The controller's screen shows the word VEX in Mono 40 font in the upper left corner.

set pen width#

The set pen width block sets the pen width used for drawing lines and shapes.

set pen width block#
    set pen width to [10] on screen

Parameters

Description

width

The pen width in pixels.

Example

When started, sets the pen width to 10 pixels and draws a rectangle with the top-left corner at (50,50), width 130 pixels, and height 60 pixels.#
    when started :: hat events
    [Draw a rectangle with a pen width of 10.]
    set pen width to [10] on screen
    draw rectangle [200] [200] [200] [80] on screen

The controller's screen shows a rectangle with a thick border drawn.

set pen / font color#

The set pen / font color block sets the pen color used for drawing lines, shapes, and text on the controller’s screen. The default color is white.

set pen font color#
    set pen / font color to [red v] on screen

Example

Parameters

Description

color

Sets the pen color to:

  • red
  • green
  • blue
  • black
  • white
  • yellow
  • orange
  • purple
  • cyan
  • transparent

When started, sets the pen color to red and draws a rectangle with the top-left corner at (50, 50), width 130 pixels, and height 60 pixels.#
    when started :: hat events
    [Draw a rectangle with an orange outline.]
    set pen / font color to [orange v] on screen
    draw rectangle [200] [150] [240] [150] on screen
    set pen / font color to [white v] on screen
    print [VEXcode AIR] at x: [250] y: [220] on screen

The controller's screen shows an orange rectangle with a thin border and VEXcode AIR in white in the center of it.

set fill color#

The set fill color block sets the color used to fill shapes when they are drawn. The default fill color is black.

set fill color stack block#
    set fill color to [red v] on screen

Parameters

Description

color

Sets the fill color to:

  • red
  • green
  • blue
  • black
  • white
  • yellow
  • orange
  • purple
  • cyan
  • transparent

Examples

When started, sets the fill color to orange and draws two rectangles. The first is at (50, 50), and the second is at (50, 130), both with a width of 100 pixels and a height of 60 pixels.#
    when started :: hat events
    [Draw an orange-filled rectangle with text on top.]
    set fill color to [orange v] on screen
    draw rectangle [200] [150] [240] [150] on screen
    print [VEXcode AIR] at x: [250] y: [220] on screen

The controller's screen shows a white bordered, orange rectangle with a thin border and VEXcode AIR in white in the center of it.

Draw#

show image file#

The show image file block draws a custom user-uploaded image on the controller’s screen at the set origin.

show user image stack block#
    show image file [IMAGE1 v]

Parameters

Description

image number

The user-uploaded image to use. Options will change if image names are edited in the Control Panel.

Example

todo#
    when started :: hat events
    [Display custom image on screen.]
    show image file [IMAGE1 v]

draw pixel#

The draw pixel block draws a pixel at the specified (x, y) screen coordinate in the current pen color.

draw pixel stack block#
    draw pixel [0] [0] on screen

Parameters

Description

x

The x coordinate to draw the pixel, ranging from 0 to 640.

y

The y coordinate to draw the pixel, ranging from 0 to 480.

Example

When started, draws a pixel at the center of the screen at coordinates (120, 120).#
    when started :: hat events
    [Draw five pixels in a diagonal.]
    draw pixel [360] [200] on screen
    draw pixel [340] [220] on screen
    draw pixel [320] [240] on screen
    draw pixel [300] [260] on screen
    draw pixel [280] [280] on screen

The controller's screen shows five pixels printed in white in a line.

draw line#

The draw line block draws a line from the first specified screen coordinate (x1, y1) to the second specified screen coordinate (x2, y2) using the current pen width and pen color.

draw line stack block#
    draw line [0] [0] [10] [10] on screen

Parameters

Description

x1

The x coordinate in pixels of the start of the line, ranging from 0 to 640.

y1

The y coordinate in pixels of the start of the line, ranging from 0 to 480.

x2

The x coordinate in pixels of the end of the line, ranging from 0 to 640.

y2

The y coordinate in pixels of the end of the line, ranging from 0 to 480.

Example

When started, draws a diagonal line from the top-left corner (0,0) to the bottom-right corner (240,240) of the screen.#
    when started :: hat events
    [Make an X across the screen.]
    draw line [0] [0] [640] [480] on screen
    set pen / font color to [cyan v] on screen
    draw line [0] [480] [640] [0] on screen

The controller's screen shows an X across the center.

draw rectangle#

The draw rectangle block draws a rectangle using the current pen width, pen color, and fill color.

draw rectangle block#
    draw rectangle [0] [0] [10] [10] on screen

Example

Parameters

Description

x

The x coordinate in pixels of the top-left corner of the rectangle, ranging from 0 to 640.

y

The y coordinate in pixels of the top-left corner of the rectangle, ranging from 0 to 480.

width

The width of the rectangle in pixels.

height

The height of the rectangle in pixels.

When started, draws a rectangle on the screen with the top-left corner at (50,50), width of 130 pixels, and height of 60 pixels.#
    when started :: hat events
    [Draw two rectangles on the screen.]
    draw rectangle [0] [0] [620] [460] on screen
    set fill color to [green v] on screen
    draw rectangle [200] [180] [200] [100] on screen

The controller's screen shows a green rectangle with a thin white border surrounded by a larger white bordered rectangle.

draw circle#

The draw circle block draws a circle using the current pen width, pen color, and fill color.

draw circle stack block#
    draw circle [0] [0] [10] on screen

Parameters

Description

x

The x coordinate in pixels of the center of the circle, ranging from 0 to 640.

y

The y coordinate in pixels of the center of the circle, ranging from 0 to 480.

radius

The radius of the circle in pixels.

Example

When started, draws a circle on the screen with the center at (120,120) and a radius of 40 pixels.#
    when started :: hat events
    [Draw one green circle on the screen.]
    set fill color to [green v] on screen
    draw circle [320] [240] [200] on screen

The controller's screen shows a green circle with a thin white border drawn in the center.

Touch#

screen pressed?#

The screen pressed? block reports if the controller’s screen is currently being pressed or not pressed. This block returns a Boolean value:

  • True - Screen is currently being pressed

  • False - Screen is not being pressed

screen pressed boolean block#
    <screen pressed?>

Parameters

Description

This block has no parameters.

Example

    when started :: hat events
    [Play a sound when the screen is pressed.]
    forever
    if <screen pressed?> then
    play note [low v] [C v] [note_eight v] ▶

screen position#

The screen position block returns an integer showing the x- and y-coordinate (in pixels) where the screen was pressed. The return value for x is between 0 (left) and 640 (right). The return value for y is between 0 (top) and 480 (bottom).

A VEX AIR Drone Controller is turned on and facing forward. The dimensions of the screen are listed on the edges of a highlighted red box on the border of the screen. The top left is (0, 0), the top right is (640, 0), the bottom left is (0, 480), the bottom right is (640, 480), and the center is (320, 240).

screen position reporter block#
    (screen [x v] position)

Parameters

Description

coordinate

The coordinate of the last screen press in pixels:

  • x - The horizontal position
  • y - The vertical position

Example

When started, continuously checks for screen presses. If pressed, clears the screen and prints the x- and y-coordinates of the touch position.#
    when started :: hat events
    [Play high or low note based on where screen is pressed.]
    forever
    if <screen pressed?> then
    if <(screen [x v] position) [math_greater_than v] [320]> then
    play note [high v] [C v] [note_eight v] ▶
    else
    play note [low v] [C v] [note_eight v] ▶

when screen event#

The when screen event block is called when the controller’s screen is pressed or released.

When screen event hat block#
    when screen [pressed v] :: hat events

Parameters

Description

action

Determines when the attached stack of blocks will run:

  • pressed
  • released

Example

    when screen [pressed v] :: hat events
    [Play a sound when the screen is pressed.]
    play sound [success v] ▶
