Draw#

The top-left corner of the V5 Brain’s screen is at coordinates (0, 0), and the bottom-right corner is at coordinates (479, 239).

The center of the V5 Brain’s screen is at coordinates (240,120).

Draw Pixel#

The Draw Pixel block is used to draw a pixel on the V5 Brain’s screen.

aria-description goes here#
  draw pixel (0) (0) on Brain

The Draw Pixel block requires 2 values:

  • Value 1: X Coordinate

  • Value 2: Y Coordinate

The pixel color is determined by the Set Pen Color block. The default pixel color is white.

In this example, a white pixel will be printed at (240, 120) on the V5 Brain’s screen.

aria-description goes here#
  when started :: hat events
  draw pixel (240) (120) on Brain

Draw Line#

The Draw Line block is used to draw a line on the V5 Brain’s screen.

aria-description goes here#
  draw line (0) (0) (159) (107) on Brain

The Draw Line block requires 4 values:

  • Value 1: Beginning X coordinate

  • Value 2: Beginning Y coordinate

  • Value 3: Ending X coordinate

  • Value 4: Ending Y coordinate

The line color is determined by the Set Pen Color block. The default line color is white.

In this example, a white line will be drawn from the top-left corner to the bottom-right corner on the V5 Brain’s screen.

aria-description goes here#
  when started :: hat events
  draw line (0) (0) (479) (239) on Brain

Draw Rectangle#

The Draw Rectangle block is used to draw a rectangle on the V5 Brain’s screen.

aria-description goes here#
  draw rectangle (0) (0) (10) (10) on Brain

The Draw Rectangle block requires 4 values:

  • Value 1: Beginning X coordinate

  • Value 2: Beginning Y coordinate

  • Value 3: Width of the rectangle (in pixels)

  • Value 4: Height of the rectangle (in pixels)

The outside line color is determined by the Set Pen Color block. The default line color is white.

The inside fill color is determined by the Set Fill Color block. The default fill color is black.

In this example, a rectangle will be drawn with its top-left corner at (50, 50) with each side being 25 pixels in length.

aria-description goes here#
  when started :: hat events
  draw rectangle (50) (50) (25) (25) on Brain

Draw Circle#

The Draw Circle block is used to draw a circle on the V5 Brain’s screen.

aria-description goes here#
  draw circle (0) (0) (10) on Brain

The Draw Circle block requires 3 values:

  • Value 1: Center Point X

  • Value 2: Center Point Y

  • Value 3: Radius of Circle (in pixels)

The outside line color is determined by the Set Pen Color block. The default line color is white.

The inside fill color is determined by the Set Fill Color block. The default fill color is black.

In this example, a circle will be drawn with its center at (100, 70) with its radius being 20 pixels.

aria-description goes here#
  when started :: hat events
  draw circle (100) (70) (20) on Brain

Set Pen Width#

The Set Pen Width block is used to set the width of the outline for shapes drawn on the V5 Brain’s screen.

aria-description goes here#
  set pen width to (10) on Brain

By default, all lines have a pen width of 1 pixel.

In this example, a rectangle will be drawn with a pen width of 1 pixel (the default) and a circle will be drawn with a pen width of 5 pixels.

aria-description goes here#
  when started :: hat events
  draw circle (40) (70) (20) on Brain
  set pen width to (5) on Brain
  draw circle (100) (70) (20) on Brain

Set Pen to Color#

The Set Pen to Color block is used to set the color of lines drawn on the V5 Brain’s screen or the values printed to the Print Console.

aria-description goes here#
  set pen color to [red v] on [Brain v]

Select the color of the line that will be drawn.

  • red

  • green

  • blue

  • black

  • white

  • yellow

  • orange

  • purple

  • cyan

  • transparent

Icon for setting the pen color in V5 Brain programming interface, featuring color selection options.

Choose which device to use.

Set Pen to Color block for selecting line colors on the V5 Brain's screen or Print Console.

In this example, a rectangle with a blue outline will be drawn.

aria-description goes here#
  when started :: hat events
  set pen color to [blue v] on [Brain v]
  draw rectangle (50) (50) (25) (25) on Brain

Set Fill Color#

The Set Fill Color block is used to set the color that fills in shapes drawn on the V5 Brain’s screen.

aria-description goes here#

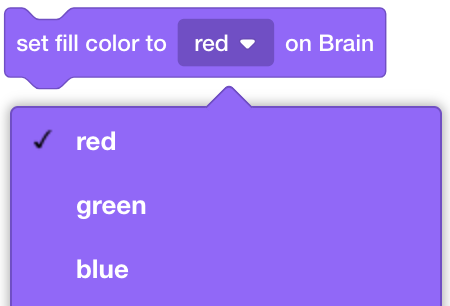

  set fill color to [red v] on Brain

Select the color of the line that will be drawn.

  • red

  • green

  • blue

  • black

  • white

  • yellow

  • orange

  • purple

  • cyan

  • transparent

Icon for setting the fill color in V5 Brain's drawing functions, featuring color selection options.

In this example, a circle filled with yellow will be drawn.

aria-description goes here#
  when started :: hat events
  set fill color to [yellow v] on Brain
  draw circle (40) (70) (20) on Brain
