Field Details#

The VIQRC Virtual Skills - Full Volume Playground occupies an area measuring 1800 millimeters (about 6 feet) long and 2400 millimeters (about 8 feet) wide.

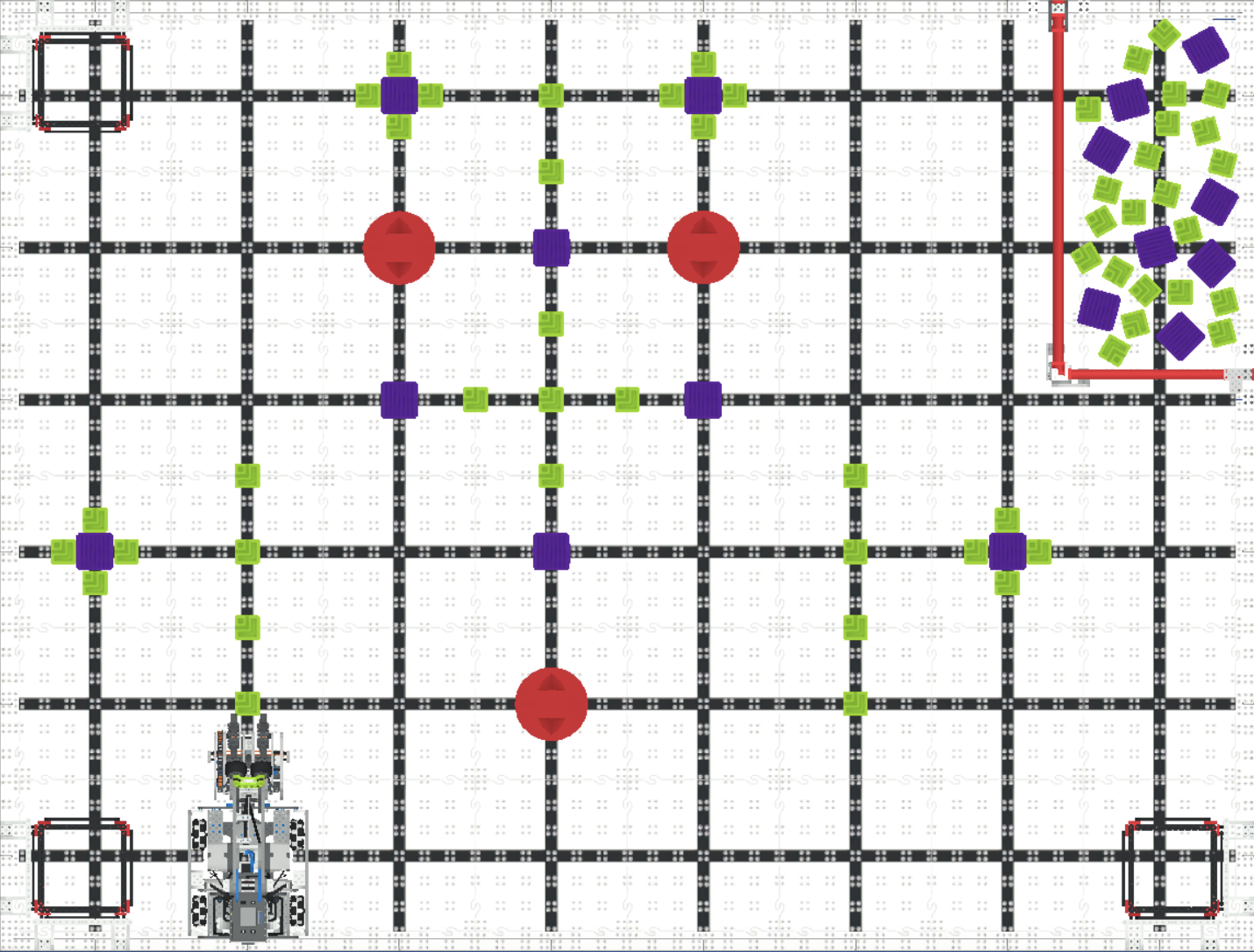

Top-down view of the VIQRC Virtual Skills Full Volume Playground field with game elements and grid layout.

The field is 5 full black squares and two half-squares long and 7 full black squares and two half-squares wide.

Grid

Measurement

Diagram of the VIQRC Virtual Skills Full Volume Playground field layout with game elements and starting configurations.

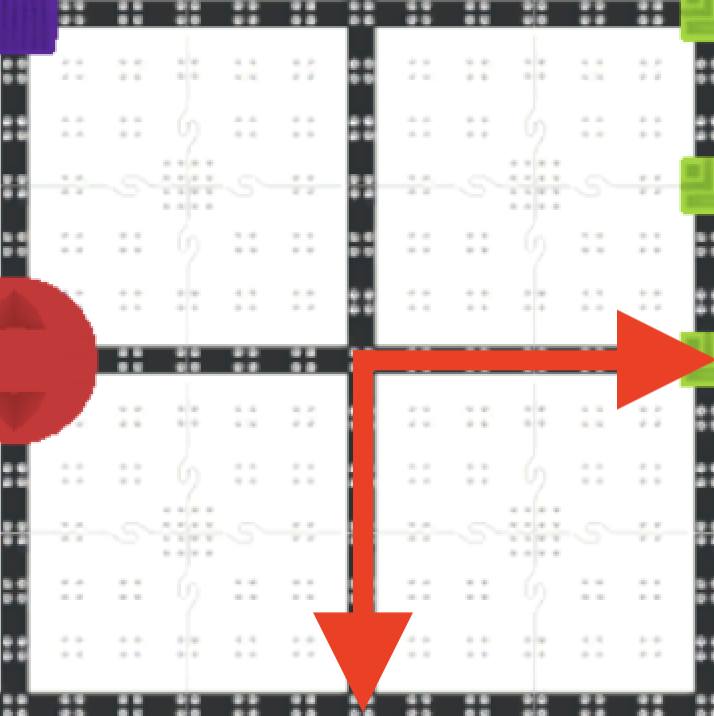

A full black square measures 300mm by 300mm (approximately 12 inches by 12 inches).

Diagram of the VIQRC Virtual Skills Full Volume Playground field layout with black square and half-square measurements.

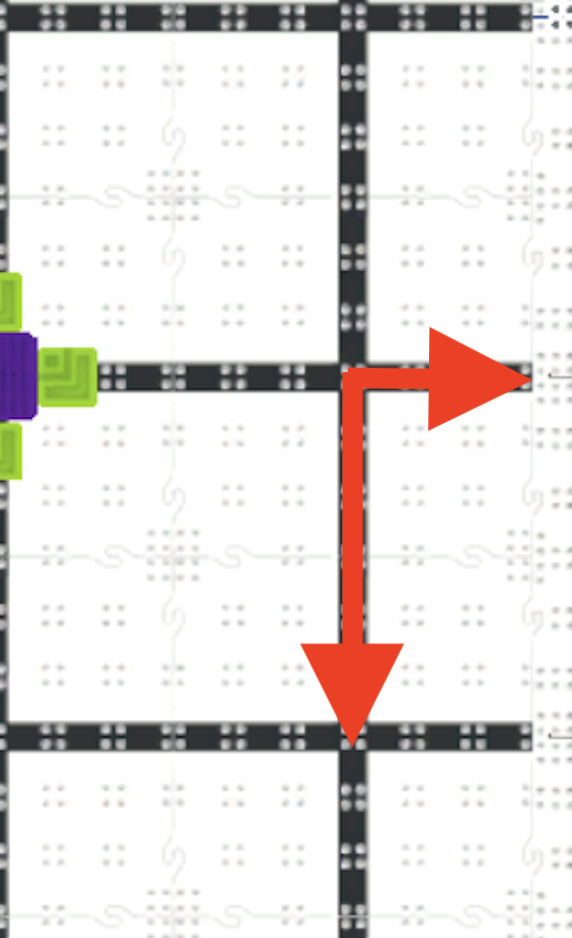

A half black square measures 150mm by 300 mm (approximately 6 inches by 12 inches).

Game Elements#

The Field has three different Game Elements, Green Blocks, Purple Blocks, and Red Blocks.

There are fifty-four (54) Green Blocks.

Game Element

Measurements

Amount on Field

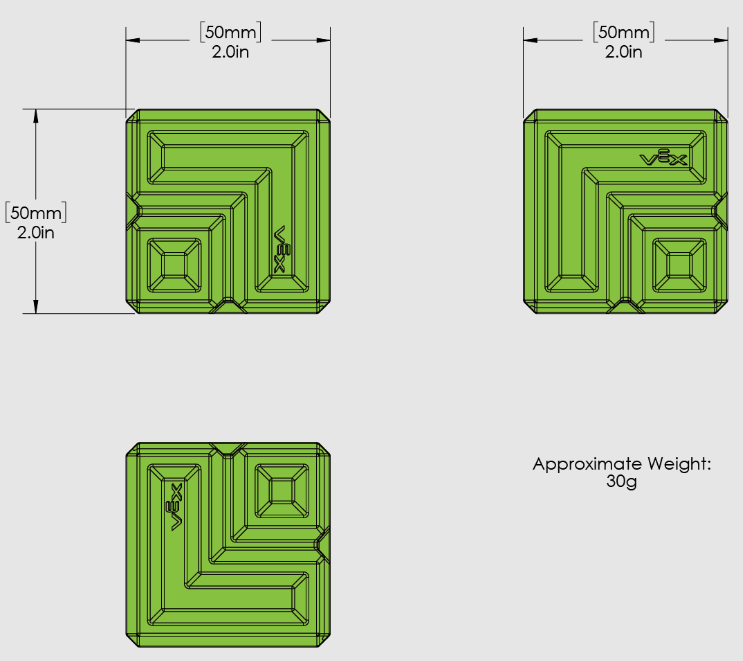

Green Block for VIQRC Virtual Skills Field, measuring 51mm per side, part of the game elements in the playground.
Green Block

A six-sided block measuring approximately 51mm or 2 inches per side.

54

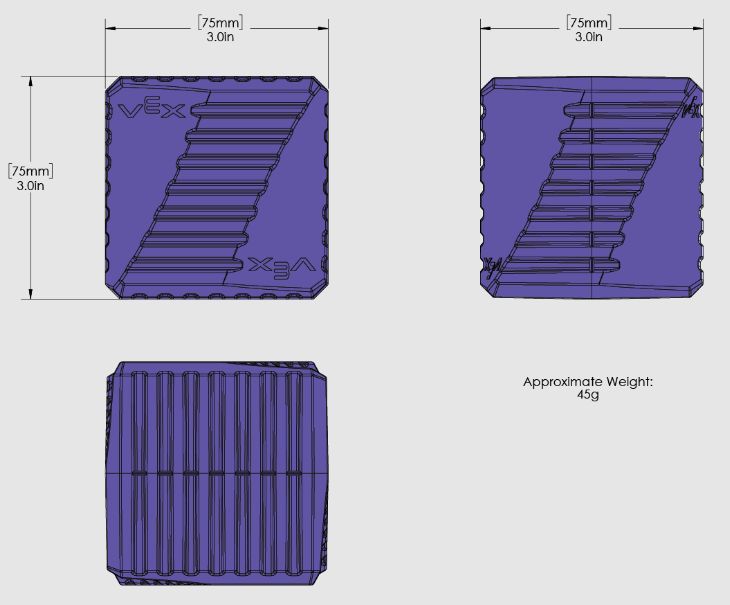

Purple block used in the VIQRC Virtual Skills Full Volume Playground, measuring approximately 76mm per side.
Purple Block

A six-sided block measuring approximately 76mm or 3 inches per side.

16

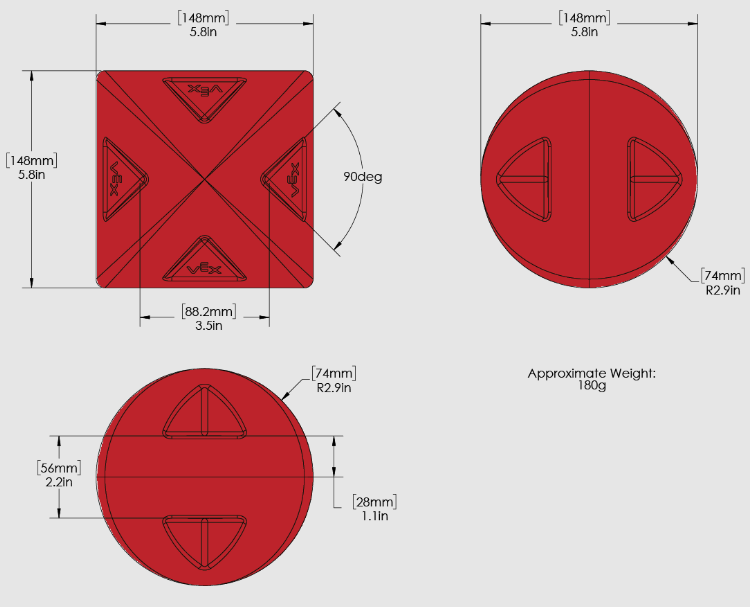

Red block from VIQRC Virtual Skills Full Volume Playground, measuring 147mm in diameter, on a game field configuration.
Red Block

A partially-rounded octagonal shape that has a major diameter of approximately 147 mm or 5.8 inches.

3

Field Starting Configurations#

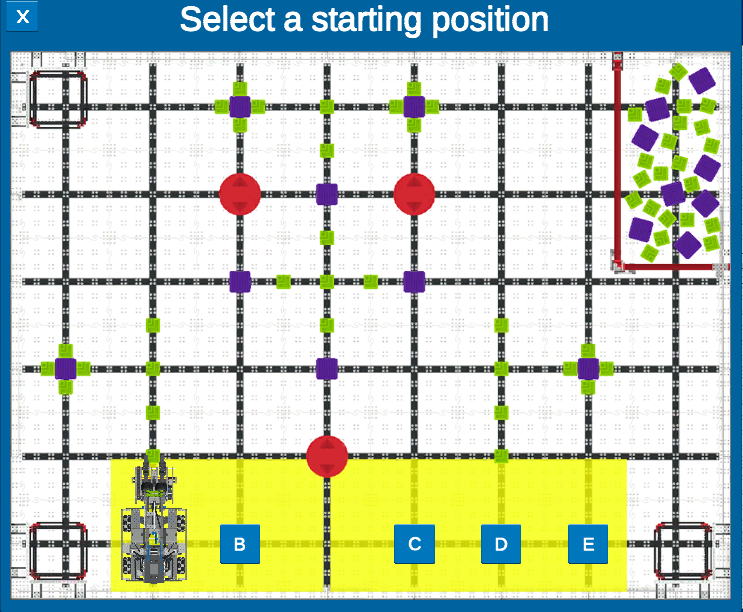

There are 5 total starting positions you can choose to start your robot from, labeled A through E. By default, the robot starts on position A.

Diagram of the VIQRC Virtual Skills Full Volume Playground field layout with game element starting configurations.
