Field Details#

The V5RC Virtual Skills - Over Under Playground occupies an area measuring 3.65 meters (about 12 feet) long and 3.65 meters (about 12 feet) wide.

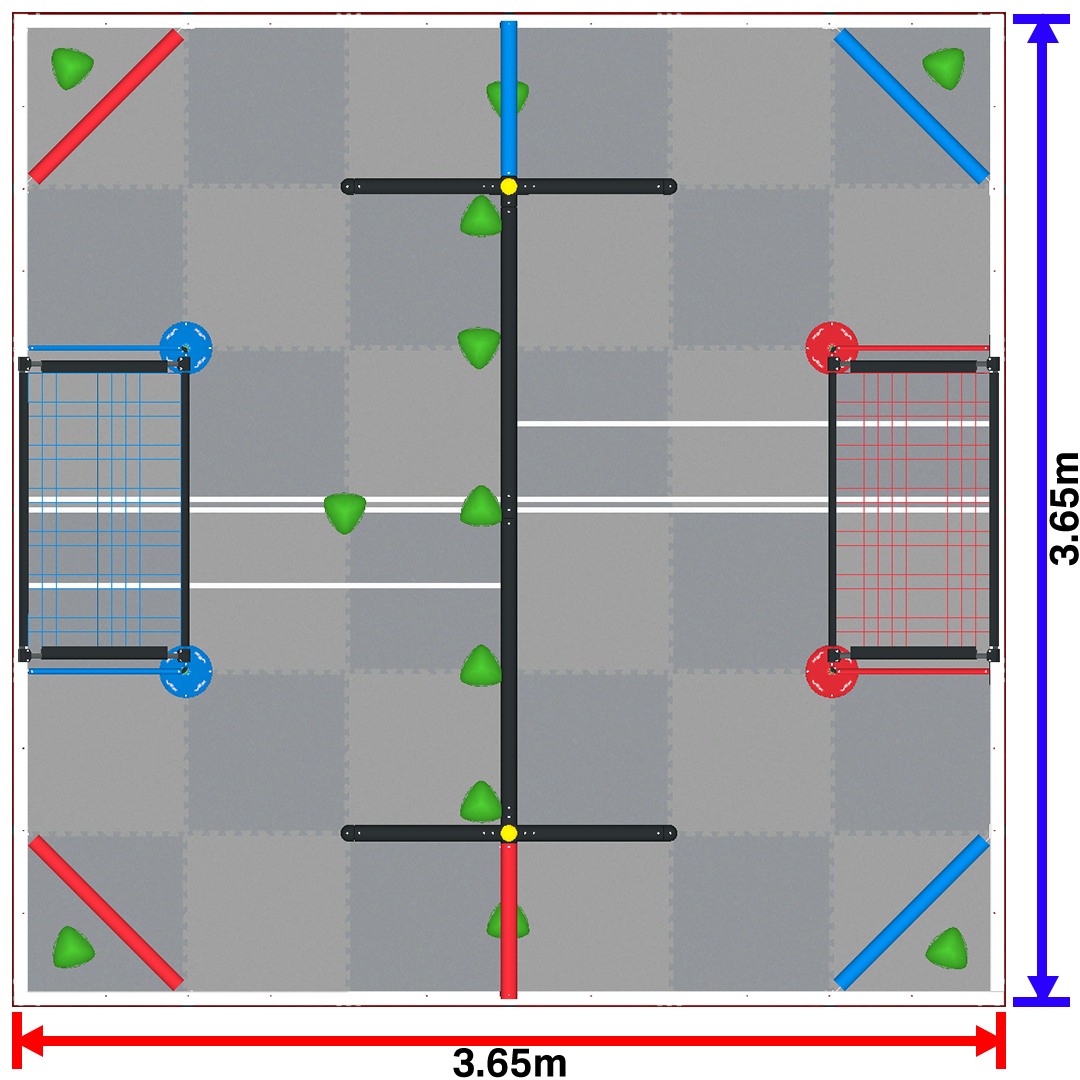

Top-down view of the V5RC Over Under Playground field layout with dimensions and starting configurations.

The field is 6 full tiles long and 6 full tiles wide.

Grid

Measurement

V5RC Over Under Playground field layout with grid measurements and starting configurations for robot placement.

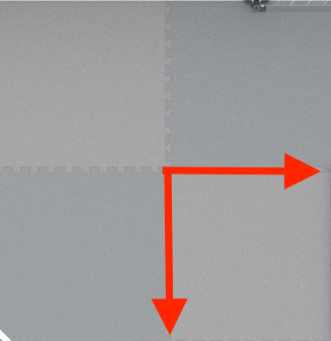

Each tile on the Field measures 600 mm by 600 mm.

Game Elements#

The Field has one Game Element, Triballs.

Game Element

Measurements

Amount on Field

V5RC Virtual Skills Over Under Playground field layout with Triballs and robot starting configurations.
Triball

A green, red, or blue plastic scoring object with a slightly rounded triangular pyramidal shape known as a Reuleaux triangle. Each Triball is approximately 6.18” tall with a weight of 103-138g.

60 - 4 Alliance, 12 on the Field, 44 Match Loads

Field Starting Configurations#

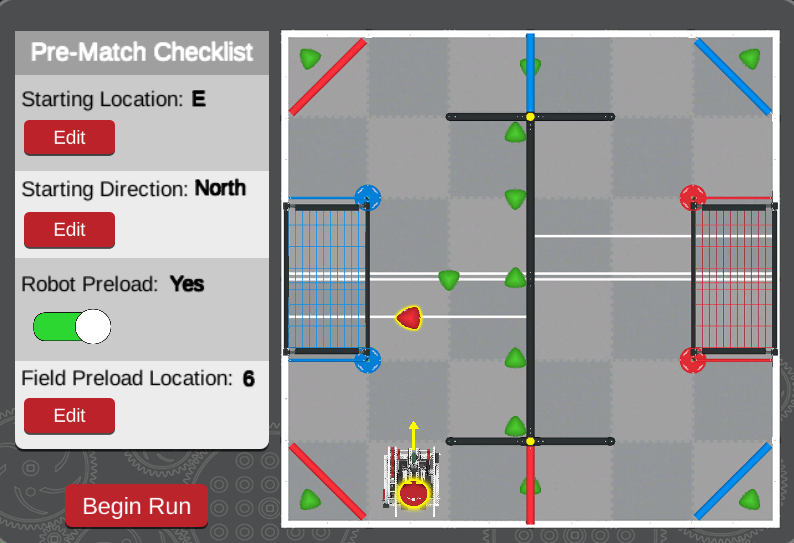

The V5RC Virtual Skills - Over Under Playground has access to a Pre-Match checklist to customize your robot’s starting conditions before running your code.

V5RC Virtual Skills Over Under Playground field layout with starting positions and Triball game elements.

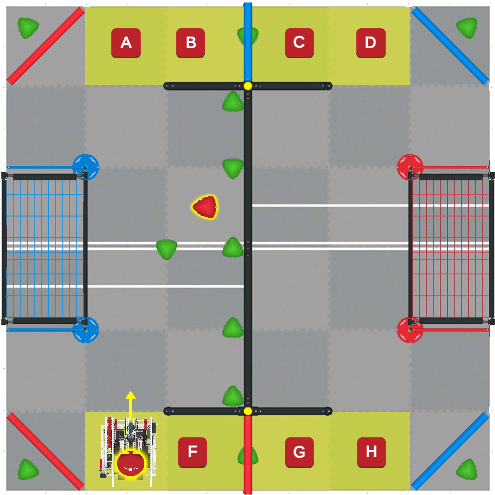

There are 8 total starting locations you can choose to start your robot from, labeled A through H. By default, the robot starts on position E.

V5RC Virtual Skills Over Under Playground field layout with starting configurations and triball placement options.

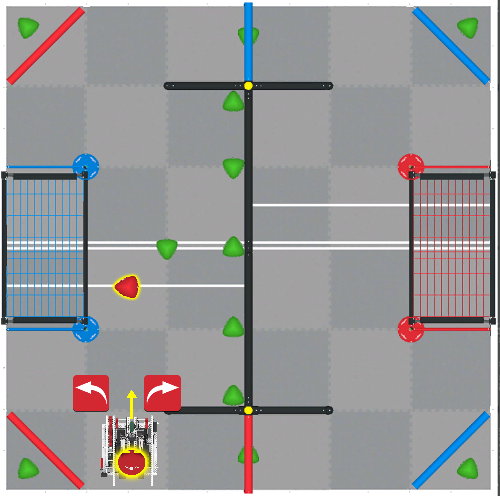

There are 4 total starting directions you can choose to face your robot in when it starts, North, East, South, and West.

Diagram of the V5RC Virtual Skills - Over Under Playground field layout with dimensions and starting configurations.

You can also choose whether or not you want to preload your robot with an alliance triball or not.

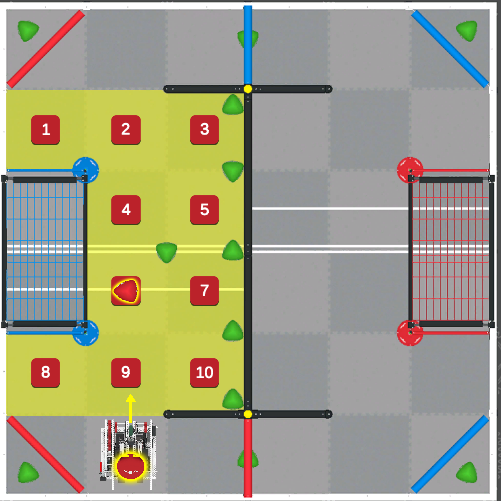

Finally, you can set your second alliance triball’s position on the field from 1 to 10.

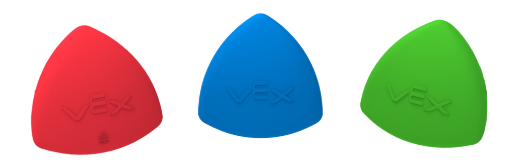

Image of Triballs, colored green, red, and blue, used in V5RC Virtual Skills Over Under Playground game element.
