Field Details#

The VIQRC Virtual Skills - Mix & Match Playground occupies an area measuring 1800 millimeters (about 6 feet) long and 2400 millimeters (about 8 feet) wide.

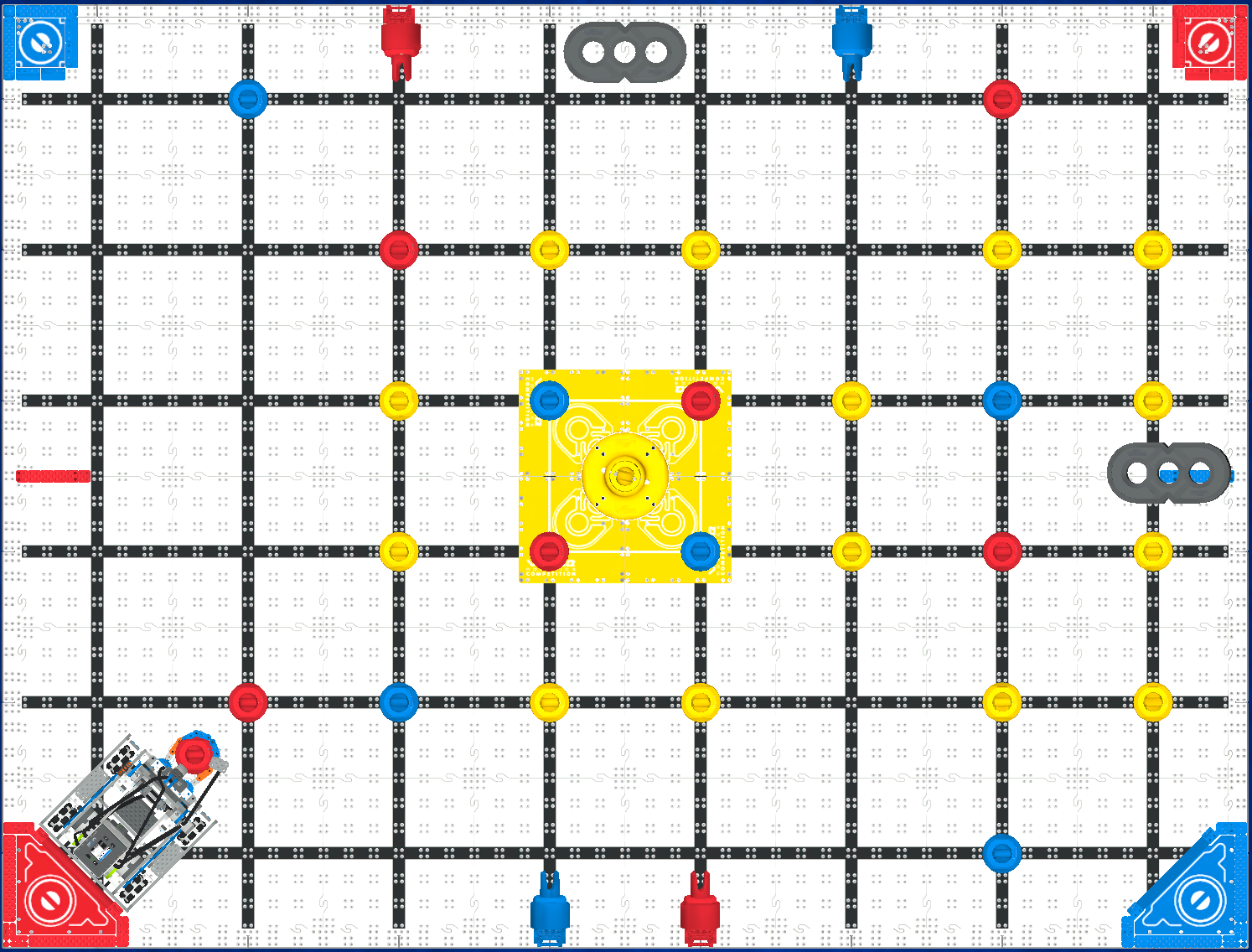

Top-down view of a VEX IQ robotics game field with a robot by a red corner, with pins, and other scoring elements arranged on a grid

The field is 5 full black squares and two half-squares long and 7 full black squares and two half-squares wide.

Grid

Measurement

Diagram of the VIQRC Virtual Skills Rapid Relay Playground field layout with game elements and starting configurations.

A full black square measures 300mm by 300mm (approximately 12 inches by 12 inches).

Diagram of the VIQRC Virtual Skills Rapid Relay Playground field layout with black square and half-square measurements.

A half black square measures 150mm by 300 mm (approximately 6 inches by 12 inches).

Game Elements#

The field has four different Scoring Elements, blue, red, and yellow Pins and Beams.

There are fifty-four (54) Green Blocks.

Game Element

Measurements

Amount on Field

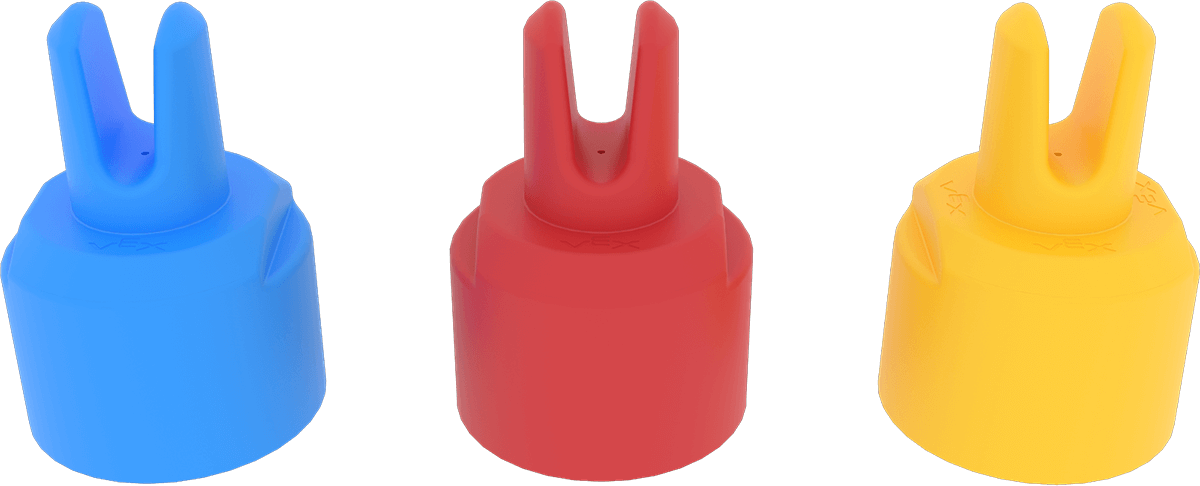

Three VEX IQ game pieces shaped like pins in blue, red, and yellow
Pins

A pin measuring approximately 3.5 inches in diameter and 4.57 inches tall.

30

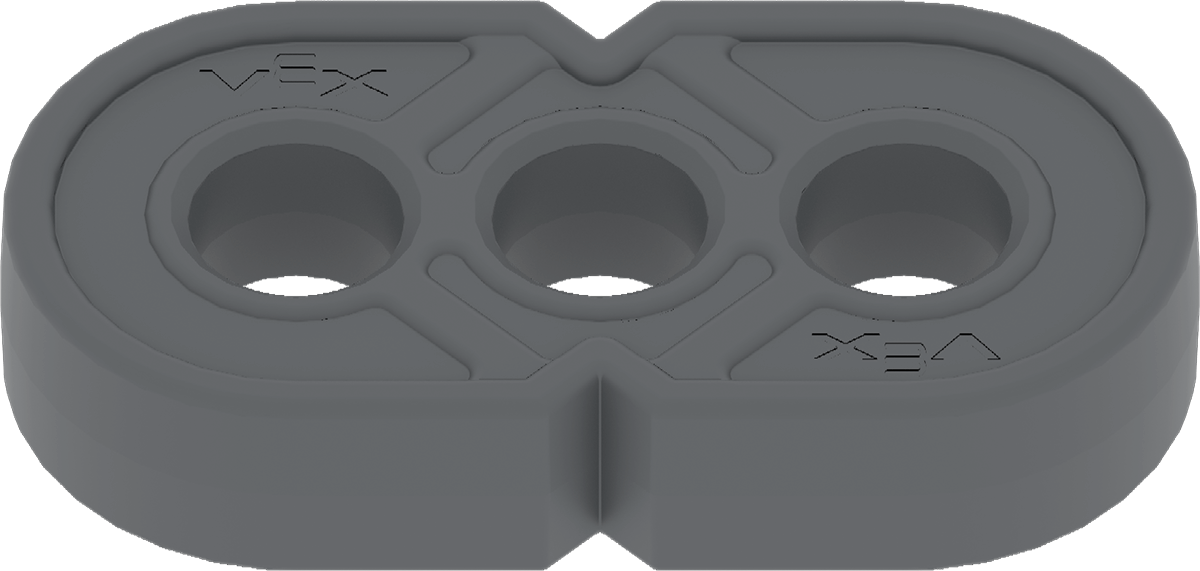

Gray VEX IQ game beam with three circular holes used as a scoring element
Beams

A beam that Pins can be placed into for more points. It measure approximately 9.88 inches long and 4.88 inches wide.

2
