Robot Details#

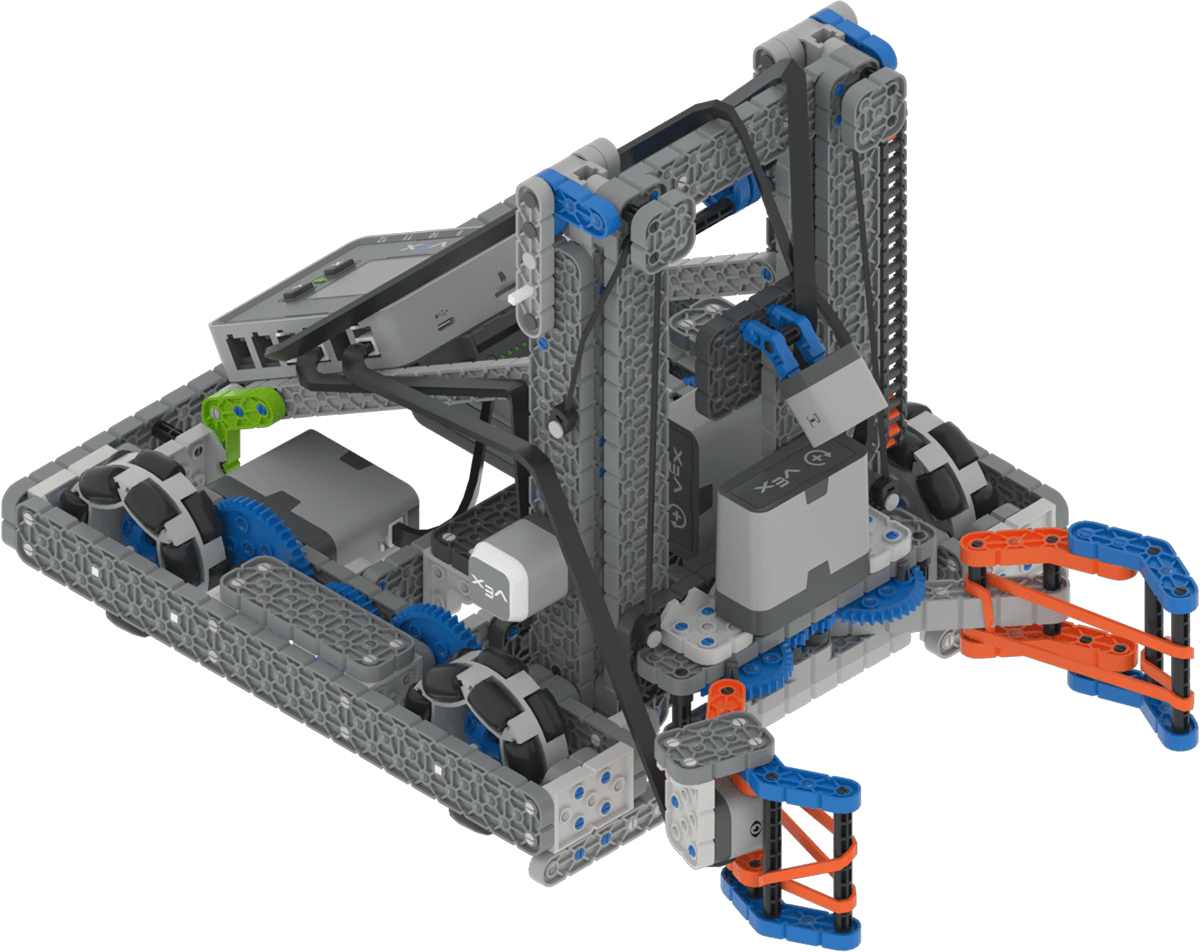

The VIQRC Virtual Skills - Mix & Match Playground uses the standard VEX IQ Hero Bot, Huey.

The Huey VEX IQ Hero Bot measures approximately 370 millimeters long and 255 millimeters wide.

VEX IQ Hero Bot Byte with Arm and Intake Motor Groups, showcasing its sensors and capabilities in the Full Volume Playground.

Motors#

Huey is equipped with two sets of motors for its Claw and Lift.

Configuration &
Python Command Name

Description

API Documentation

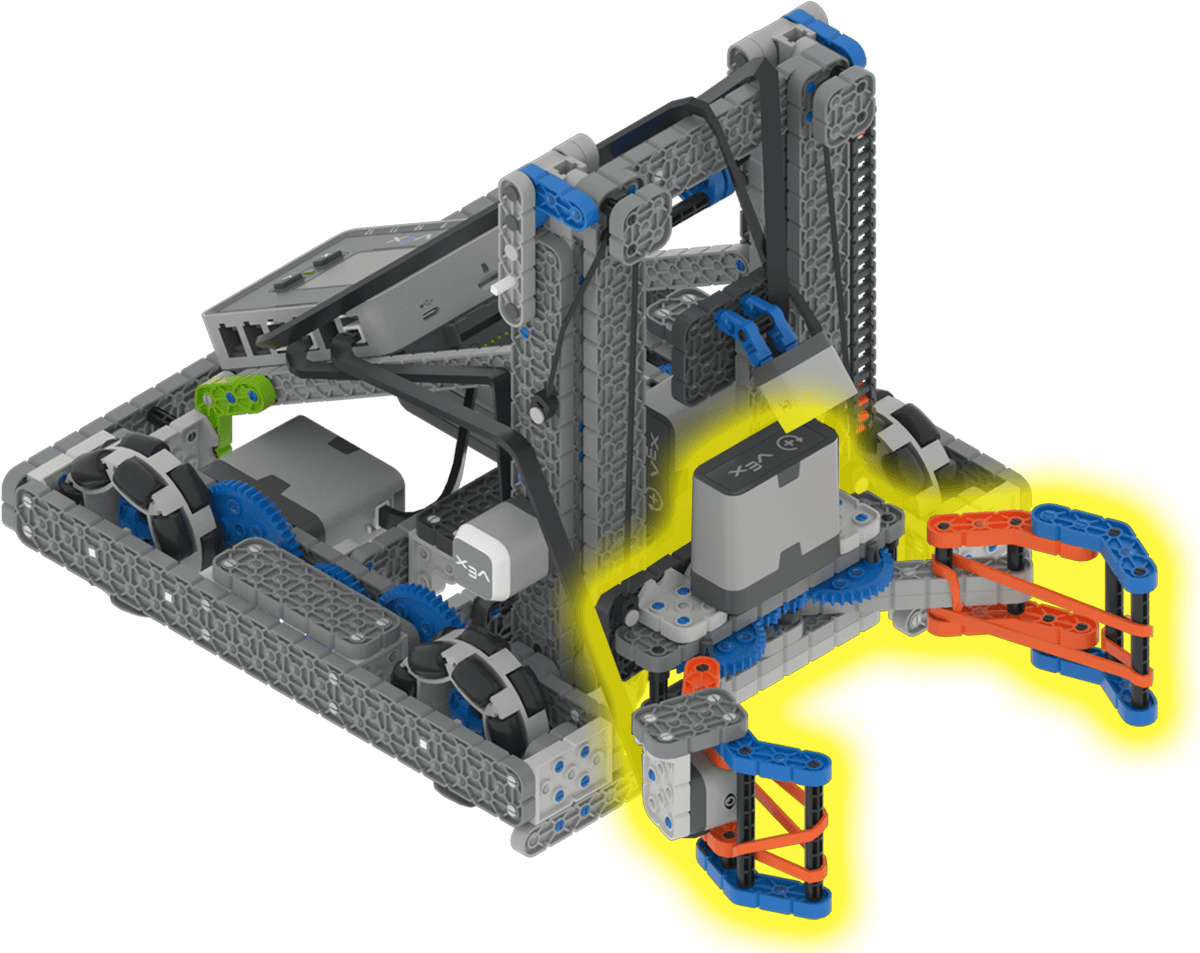

Diagram showing the claw range of the Huey VEX IQ Hero Bot.
ClawMotor
claw_motor

The Claw can be opened and closed. This allows the robot to do pick up and drop Pins and Beams.
The Claw Motor starts at 0 degrees and will be fully opened when spun open for at least 70 degrees.

Blocks - Python

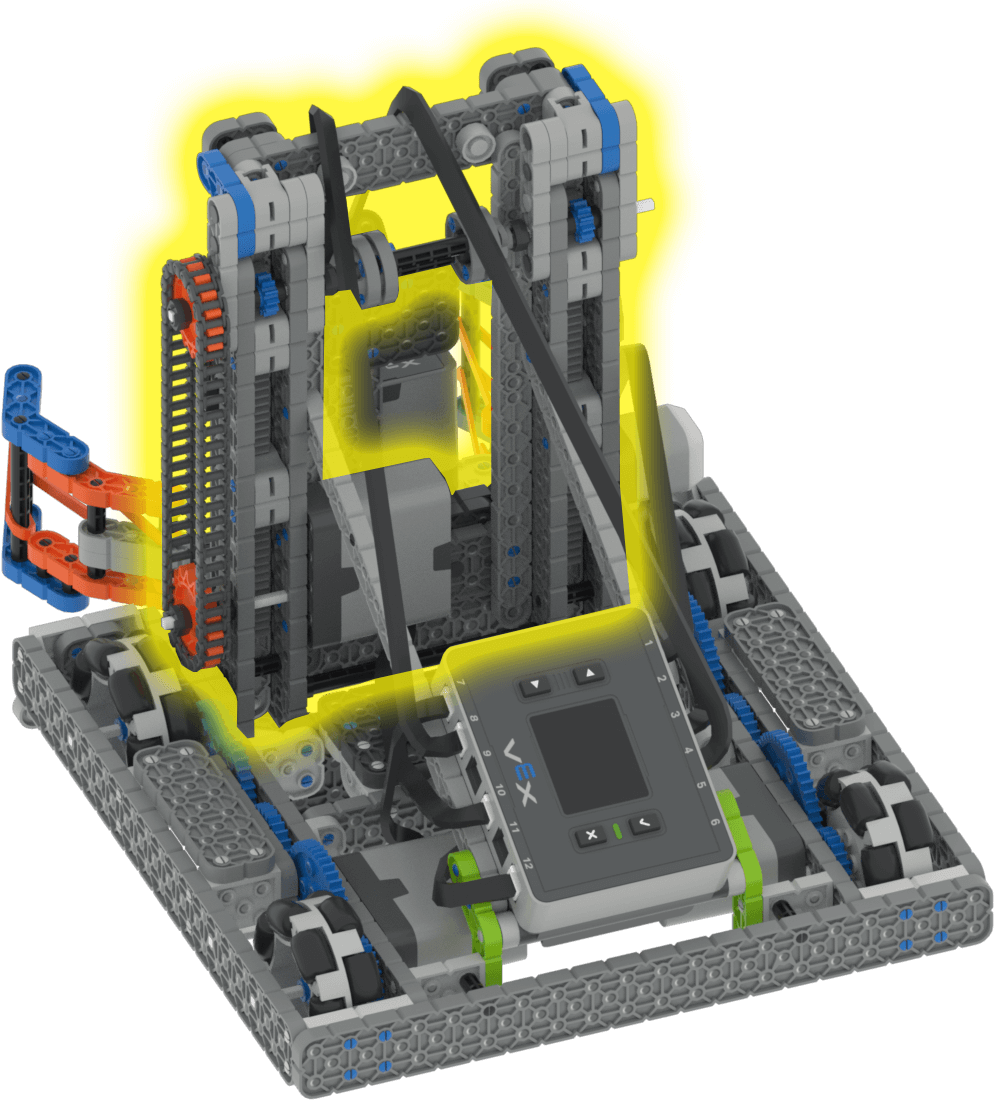

Diagram of the VEX IQ Hero Bot Huey, highlighting the Lift Motor.
LiftMotor
lift_motor

The Lift can be moved up and down. This allows the robot to lift and drop Pins or Beams so they attach to one another The Lift Motor starts at 0 degrees and will be fully lifted when spun up for 1450 degrees.

Blocks - Python

Sensors#

Huey has access to the following sensors for autonomous coding:

Configuration

Description

API Documentation

Python Command Name

Brain Timer

The robot has access to a built-in timer.

Blocks - Python

brain.timer

Inertial

The IQ (2nd gen) Brain has access to a built-in Inertial Sensor to track the current heading and angle of rotation.

Blocks - Python

drivetrain

Distance

Returns how close an object is to the front of the sensor in millimeters or inches. The Distance Sensor is located on the lift, pointed down towards the claw. When the lift is at 0 degrees, the distance from the Distance Sensor to the ground is approximately 217 mm.

Blocks - Python

distance

Optical

Returns if an object is in the claw and can return what color that object is.

Blocks - Python

optical

Touch LED

A Touch LED located on the side of the robot that can be coded to change color.

Blocks - Python

touchled
