Controller #

The V5 Controller allows users to control and customize behaviors for their robot or display messages on the Controller’s screen.

Below is a list of available blocks:

Values – Read button states and joystick positions.

Controller pressed? – Returns whether a selected button is pressed.
Controller position – Returns a joystick’s position.

Actions – Rumble the controller and enable or disable configured Controller functions.

play rumble – Plays a rumble pattern on the Controller.
Controller enable/disable – Enables or disables Controller-configured actions.

Events – Run code when a button is pressed or joystick is moved.

when Controller button pressed – Runs the attached stack when a selected button is pressed or released.
when Controller axis is changed – Runs the attached stack when a joystick axis value changes.

Screen – Display text and numbers on the Controller’s screen.

print on Controller – Prints text and numbers to the Controller’s screen.
set cursor on Controller – Moves the cursor to the next row.
set cursor to next row on Controller – Moves the cursor to the next line.
set print precision on Controller – Sets decimal places for printed numbers.
clear Controller – Clears the Controller screen.
clear row on Controller – Clears a single row on the Controller screen.

Values #

Controller pressed?#

The Controller pressed? block returns a Boolean indicating whether a specific button on the controller is currently pressed.

True – The specified button on the controller is being pressed.
False – The specified button on the controller is not being pressed.

<[Controller 1 v] [▲ v] 按下？>

Parameter

Description

device

Which controller to use, configured in the Devices window.

button

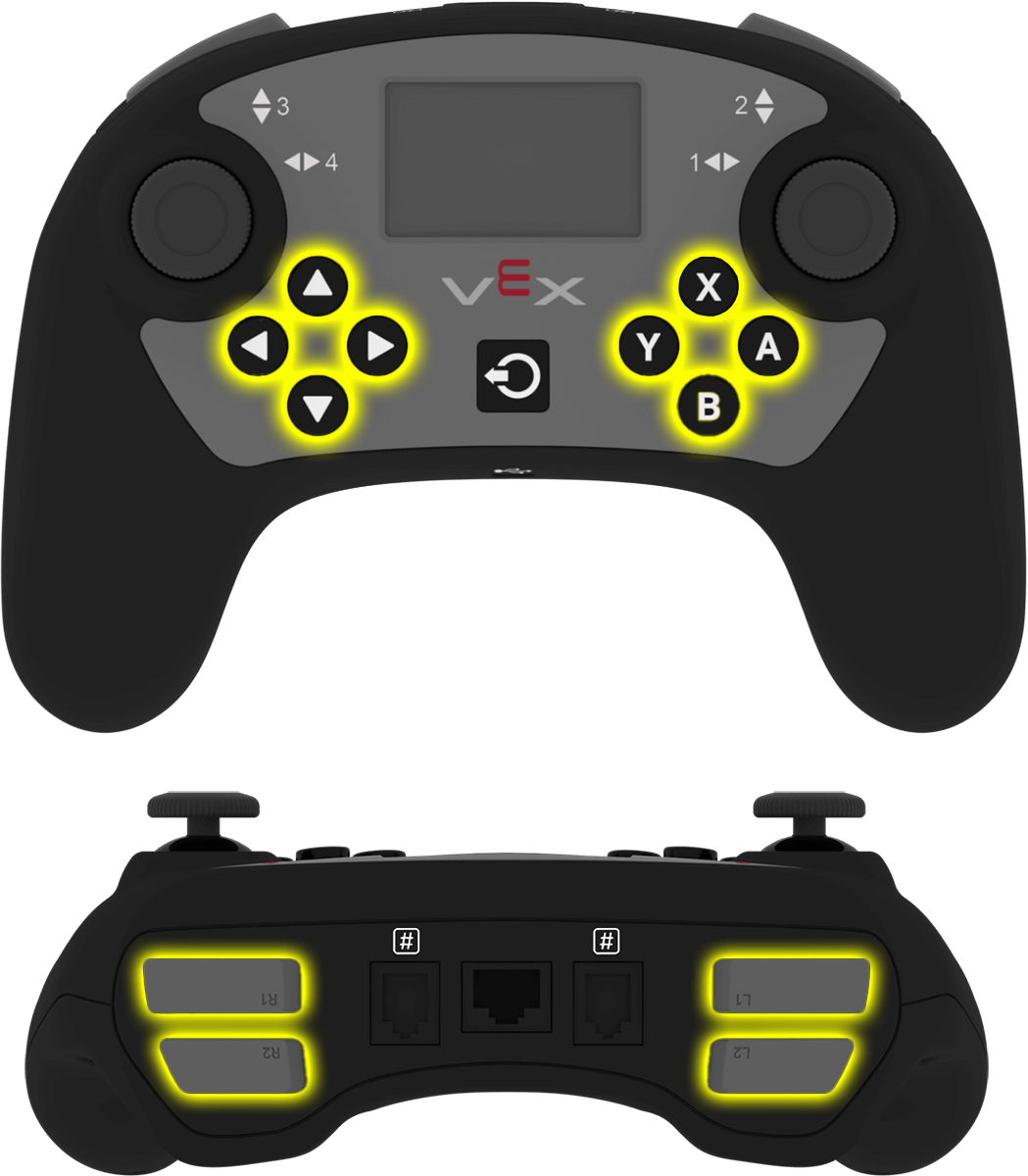

Which button to check:

Example

当开始
[Drive forward while X is pressed.]
永久循环
如果 <[Controller 1 v] [X v] 按下？> 那么
驱动 [向前 v]
否则
驱动停止

Controller position #

The Controller position block returns how far a joystick is moved along a specific axis from -100 to 100. A value of 0 means the joystick is centered.

([Controller1 v] [1 v] position)

Parameter

Description

device

Which controller to use, configured in the Devices window.

axis

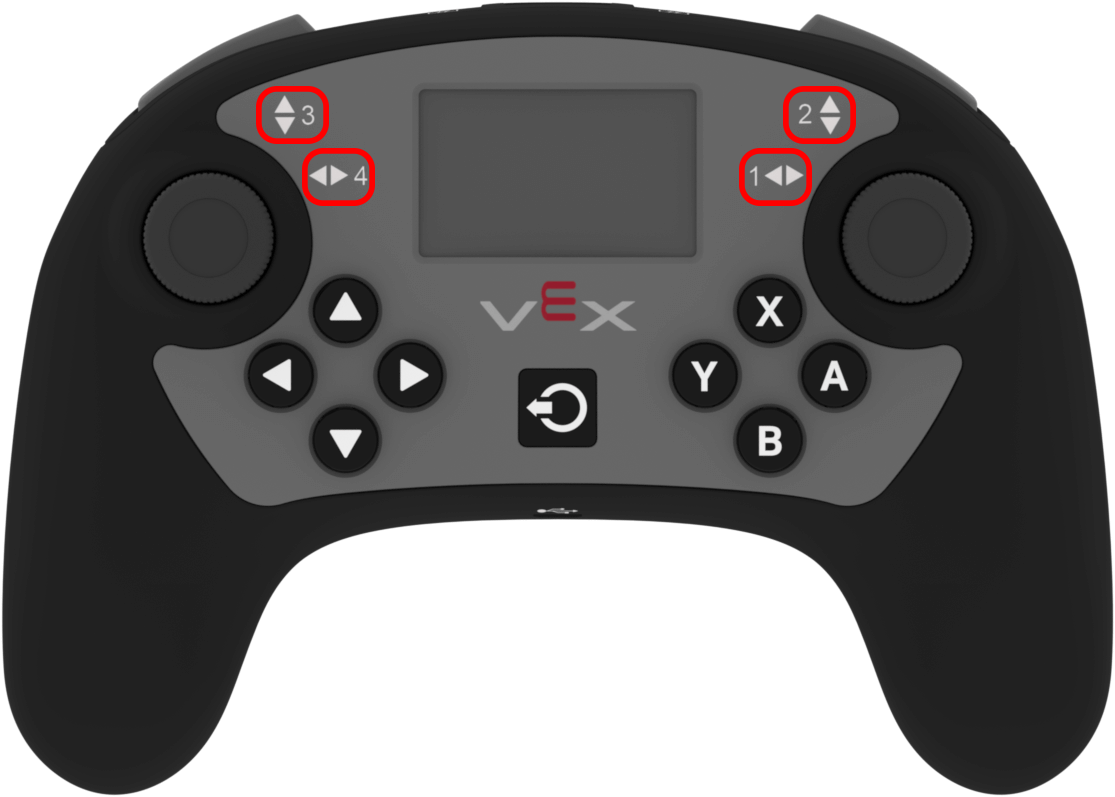

Which axis to check:

Example

当开始
[Drive forward while the left joystick is pushed up.]
永久循环
如果 <([Controller1 v] [3 v] position) [math_greater_than v] [0]> 那么
驱动 [向前 v]
否则
驱动停止

Actions #

play rumble #

The play rumble block plays a rumble pattern on the Controller.

[Long v] 播放 [Controller 1 v] 振动

Parameter	Description
pattern	The rumble pattern to play on the controller: Long – A singular, long rumble Short – A singular, short rumble Pulse – A pattern of on and off rumbles
device	Which controller to use, configured in the Devices window.

Parameter

Description

pattern

The rumble pattern to play on the controller:

Long – A singular, long rumble
Short – A singular, short rumble
Pulse – A pattern of on and off rumbles

device

Which controller to use, configured in the Devices window.

Controller enable/disable #

The Controller enable/disable block enables or disables Controller configured actions from the Devices menu for all connected controllers.

控制器 [Disable v]

Parameter	Description
state	What state to set the connected controllers to: Disable Enable

Parameter

Description

state

What state to set the connected controllers to:

Disable
Enable

当开始
[Disable controller configured actions until drive is done.]
控制器 [Disable v]
驱动 [向前 v] (6) [英寸 v] ▶
控制器 [Enable v]

Events #

when Controller button pressed #

The when Controller button pressed block runs the attached stack of blocks when a specified Controller button is pressed or released.

当 [Controller 1 v] 按键 [▲ v] [pressed v] :: hat events

Parameter

Description

device

Which controller to use, configured in the Devices window.

button

Which button to check:

state

When the attached stack of blocks will be run:

pressed
released

Example

当 [Controller 1 v] 按键 [Y v] [pressed v] :: hat events
[Drive forward 50 mm whenever the Y button is pressed]
驱动 [向前 v] [200] [毫米 v] ▶

when Controller axis changed #

The when Controller axis changed block runs the attached stack of blocks whenever the value of a specified joystick axis changes.

when [Controller1 v] axis [1 v] changed :: hat events

Parameter

Description

device

Which controller to use, configured in the Devices window.

axis

Which axis to check:

Example

when [Controller1 v] axis [3 v] changed :: hat events
[Move forward when left joystick is up, backwards if down.]
如果 <([Controller1 v] [3 v] position) [math_greater_than v] [0]> 那么
驱动 [向前 v]
否则如果 <([Controller1 v] [3 v] position) [math_less_than v] [0]> 那么
驱动 [反 v]
否则
驱动停止

Screen #

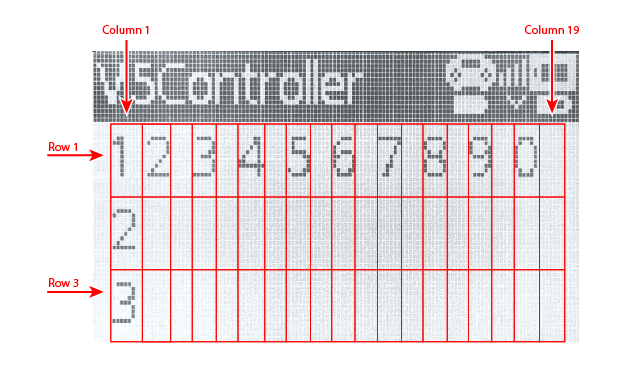

The V5 Controller has access to 3 rows and 19 columns to print on.

A labeled grid diagram of the VEX Controller screen showing rows, columns, and pixel layout, with red lines marking the display grid.

print on Controller #

The print on Controller block prints text and numbers to the Controller’s screen.

在 [VEXcode] ▶上打印 [Controller 1 v]

Parameter	Description
value	The text, number, or variable value to display.
device	Which controller to use, configured in the Devices window.
expanding arrow	Expand the block to read and set cursor to next row and make the cursor move to the next row after this block.

Example

当开始
[Display a message on the Controller.]
在 [Hello!] ▶上打印 [Controller 1 v]

set cursor on Controller #

The set cursor on Controller block sets the cursor to a specific row and column on the controller’s screen. The controller screen has 3 rows and 19 columns.

V5 Brain screen displaying available rows and columns for printing text with different font sizes and settings.

在 [1] 设定光标至 [1] 行 [Controller 1 v] 列

Parameter	Description
row	The row of the cursor from 1 to 3.
column	The column of the cursor from 1 to 19.
device	Which controller to use, configured in the Devices window.

Example

当开始
[Clear the screen to prepare for printing.]
clear [Controller1 v]
在 [1] 设定光标至 [1] 行 [Controller 1 v] 列
在 [Hello!] ▶上打印 [Controller 1 v]

set cursor to next row on Controller #

The set cursor to next row on Controller block sets the cursor to the next row on the controller’s screen.

设定 [Controller 1 v] 光标至下一行

Parameter	Description
device	Which controller to use, configured in the Devices window.

Example

当开始
[Clear the screen to prepare for printing.]
clear [Controller1 v]
在 [1] 设定光标至 [1] 行 [Controller 1 v] 列
在 [Row 1] ▶上打印 [Controller 1 v]
设定 [Controller 1 v] 光标至下一行
在 [Row 2] ▶上打印 [Controller 1 v]

set print precision on Controller #

The set print precision on Controller block sets how many decimal places are shown when printing numbers on the controller’s screen.

将打印精度设置为 [1 v] 到 [Controller 1 v]

Parameter	Description
precision	How many decimals will be shown when numbers are printed: 1 0.1 0.01 0.001 All Digits
device	Which controller to use, configured in the Devices window.

Parameter

Description

precision

How many decimals will be shown when numbers are printed:

1
0.1
0.01
0.001
All Digits

device

Which controller to use, configured in the Devices window.

Example

当开始
[Display division with two decimals.]
将打印精度设置为 [0.01 v] 到 [Controller 1 v]
在 ([1] [math_division v] [3]) ▶上打印 [Controller 1 v]

clear Controller #

The clear Controller block clears the Controller’s screen.

clear [Controller1 v]

Parameter	Description
device	Which controller to use, configured in the Devices window.

Example

当开始
[Clear the screen to prepare for printing.]
clear [Controller1 v]
在 [1] 设定光标至 [1] 行 [Controller 1 v] 列
在 [Hello!] ▶上打印 [Controller 1 v]

clear row on Controller #

The clear row on Controller block clears a specified row on the Controller’s screen.

清除 [1] 第 [Controller 1 v] 行

Parameter	Description
row	Which row to clear from 1 to 3.
device	Which controller to use, configured in the Devices window.

Example

当开始
[Clear only one row on the controller.]
clear [Controller1 v]
在 [1] 设定光标至 [1] 行 [Controller 1 v] 列
在 [I will go!] ▶上打印 [Controller 1 v]
设定 [Controller 1 v] 光标至下一行
在 [I will stay!] ▶上打印 [Controller 1 v]
等待 [2] 秒
清除 [1] 第 [Controller 1 v] 行
