Conexión con una conexión por cable (Mac)#

Siga estos sencillos pasos para conectar su controlador de dron VEX AIR a su computadora con un cable USB-C.

Encienda el controlador#

Turn on the controller by holding down the power button and releasing when it begins flashing white. The video below shows the power button being pressed until it starts flashing white. The button continues flashing as the screen turns on, and turns green when the controller is ready for use.

Conecte el cable#

Utilice un cable USB-C para conectar el controlador a su computadora.

VEX AIR Drone Controller to the left of a laptop with a cable connecting the USB-C port on the controller to the computer.

Seleccione el ícono del controlador en la esquina superior derecha#

A screenshot of the upper right corner of the VEXcode AIR Toolbar, with the white Controller icon highlighted, to the left of the grayed out download button.

Seleccione Conectar mediante USB en el menú#

A screenshot of the Controller dialog box in VEXcode AIR with the Connect via USB button on the bottom highlighted.

Siga las instrucciones del dispositivo#

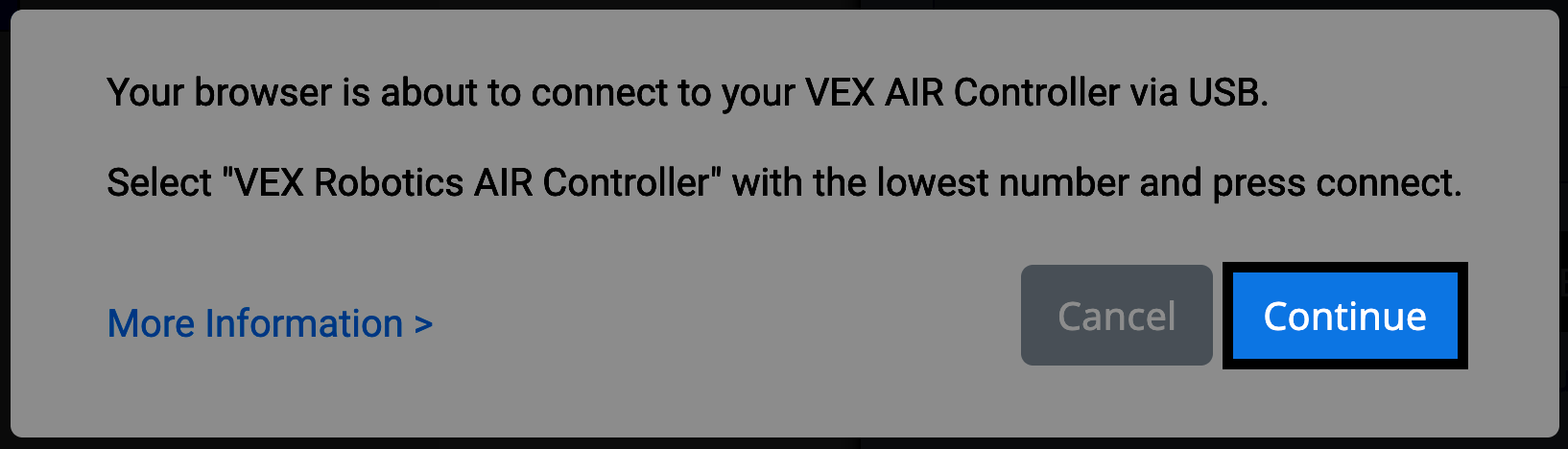

A prompt reads Your browser is about to connect to your VEX AIR Controller via USB, and instructs to select the VEX Robotics AIR Controller with the lowest number and press Connect when prompted. The Continue button in the lower right corner is highlighted.

Elija la opción de conexión correcta#

Seleccione la opción con el número de identificación MÁS BAJO de la lista de robots disponibles.

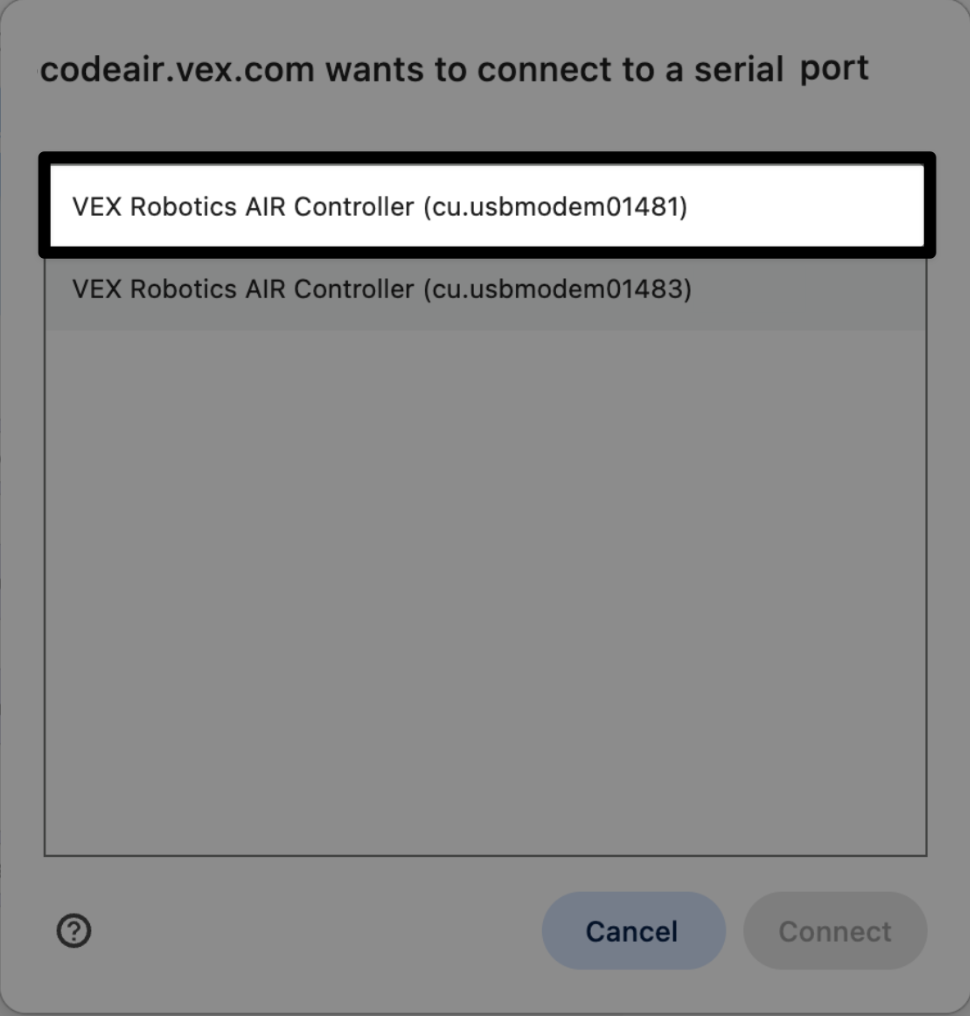

A prompt reads codeair.vex.com wants to connect to a serial port, and the first option with the lowest ID number is highlighted, indicating what to select.

Finaliza tu conexión#

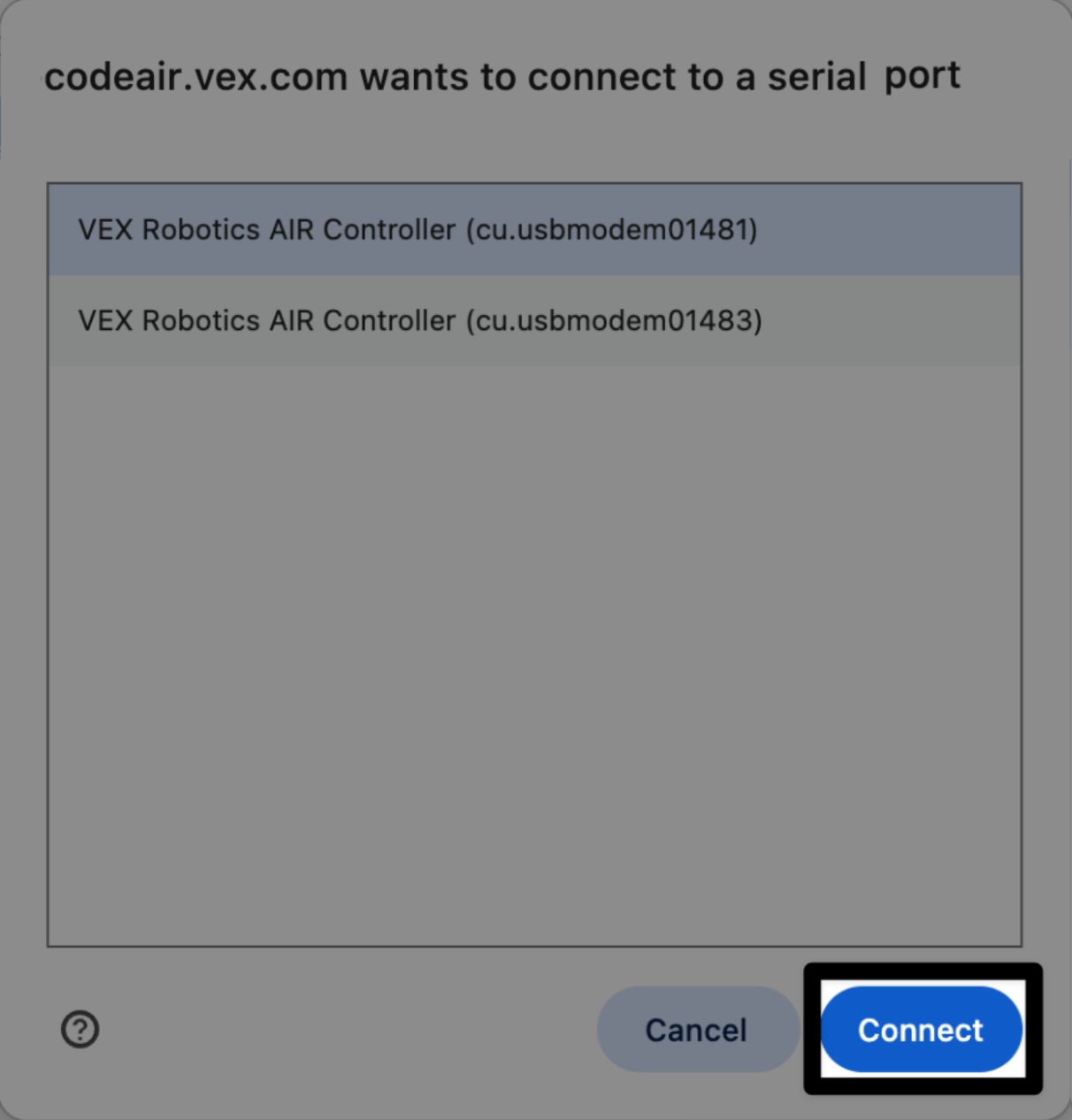

The same image as above, now with the Connect button in the lower right corner highlighted.

Estás conectado#

El ícono Controlador en la esquina superior derecha de VEXcode AIR ahora aparecerá en verde.

The same screenshot of the Controller icon in VEXcode AIR as before, now with the icon showing green.
