保险杠#

介绍#

The Bumper Switch is a mechanical switch that completes a circuit when pressed, allowing the robot to detect presses and releases.

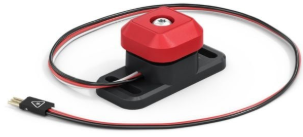

VEX EXP 碰撞开关是一款三线设备/_static/img/sensing/bumper_switch_1_new_image.png带有一个宽大的黑色底座，用于将其连接到机器人上，顶部有一个红色可按压按钮。

This page uses bumper_switch as the example Bumper Switch name. Replace it with your own configured name as needed.

以下是可用方法列表：

  • pressing – Returns whether the Bumper Switch is being pressed.

  • pressed – Registers a function to be called whenever the Bumper Switch is pressed.

  • released – Registers a function to be called whenever the Bumper Switch is released.

构造函数 – 手动初始化和配置碰撞开关。

  • Bumper – Create a Bumper Switch.

紧迫#

pressing returns a Boolean indicating whether the Bumper Switch is currently being pressed. This can be used to check if the robot bumps into other objects.

  • True – The Bumper Switch is being pressed.

  • False – The Bumper Switch is not being pressed.

Usage:
bumper_switch.pressing()

参数

描述

此方法没有参数。


# Display a message after bumper_switch is pressed
while not bumper_switch.pressing():
  pass

brain.screen.print("Bumper Switch pressed!")

按下#

pressed registers a function to be called whenever the Bumper Switch is pressed.

Usage:
bumper_switch.pressed(callback, arg)

参数

描述

callback

一个先前定义的函数，当按下保险杠开关时执行。

arg

Optional. A tuple containing arguments to pass to the callback function. See Functions with Parameters for more information.


def my_function():
  brain.screen.print("Pressed")

# Call my_function whenever bumper_switch is pressed
bumper_switch.pressed(my_function)

发布#

released registers a function to be called whenever the Bumper Switch is released.

Usage:
bumper_switch.released(callback, arg)

参数

描述

callback

先前定义的 函数，当 Bumper 开关释放时执行。

arg

Optional. A tuple containing arguments to pass to the callback function. See Functions with Parameters for more information.


def my_function():
  brain.screen.print("Released")

# Call my_function whenever bumper_switch is released
bumper_switch.released(my_function)

构造器#

Constructors are used to manually create Bumper objects, which are necessary for configuring a Bumper Switch outside of VEXcode.

Bumper#

Bumper creates a Bumper Switch.

Usage:
Bumper(port)

范围

描述

port

The 3-Wire Port that the Bumper Switch is connected to:

  • On the EXP Brain – brain.three_wire_port.x where x is the number of the port.
  • On a 3-Wire Expander – expander.a where expander is the name of the expander instance.


# Create a Bumper Switch in Port A
bumper_switch = Bumper(brain.three_wire_port.a)
