Connecting with a Wired Connection (Windows)

This tutorial walks you through connecting your VEX AIM Coding Robot to a Windows computer with a USB-C cable in VEXcode AIM. By the end, you’ll have your robot connected and ready to download projects to.

  1. Connect your robot to your computer with a USB-C cable. The robot will turn on by itself.

Ρομπότ AIM στα αριστερά ενός φορητού υπολογιστή με ένα καλώδιο που συνδέει τα δύο ηλεκτρονικά μέρη.

  1. Select the Connect button at the top-right of VEXcode.

Screenshot of the VEXcode AIM toolbar, with the Connect button highlighted.

  1. Select Connect next to USB under Wired Connection.

Screenshot of the Connect menu, showing the Wired Connection and Wireless Connection sections, with the Connect button next to USB highlighted.

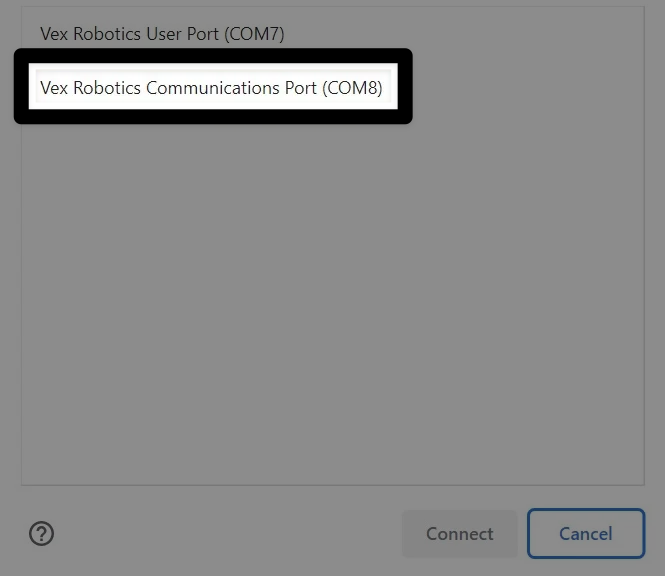

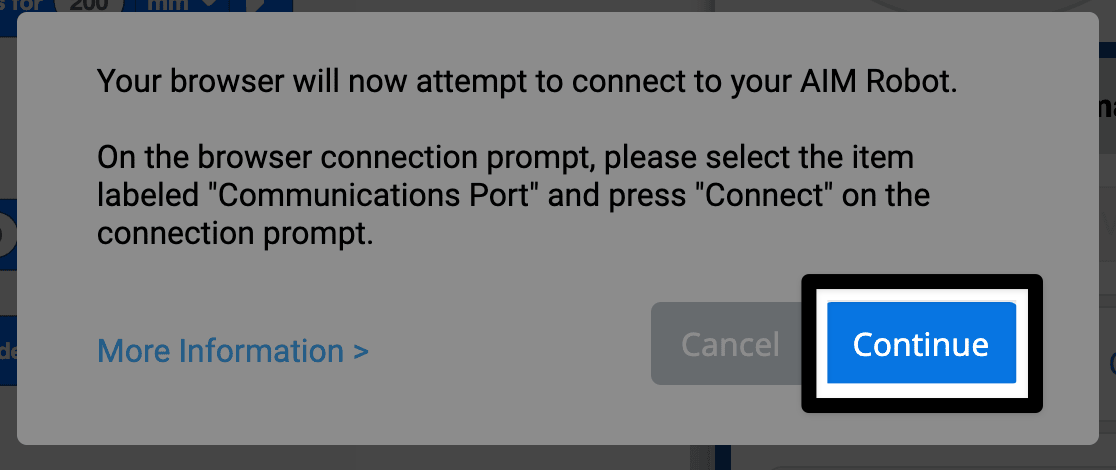

  1. Your browser will ask which serial port to connect to. Select Vex Robotics AIM - Vex Robotics Communications Port.

Screenshot of the serial port dialog on Windows, with the Vex Robotics AIM Communications Port entry highlighted.

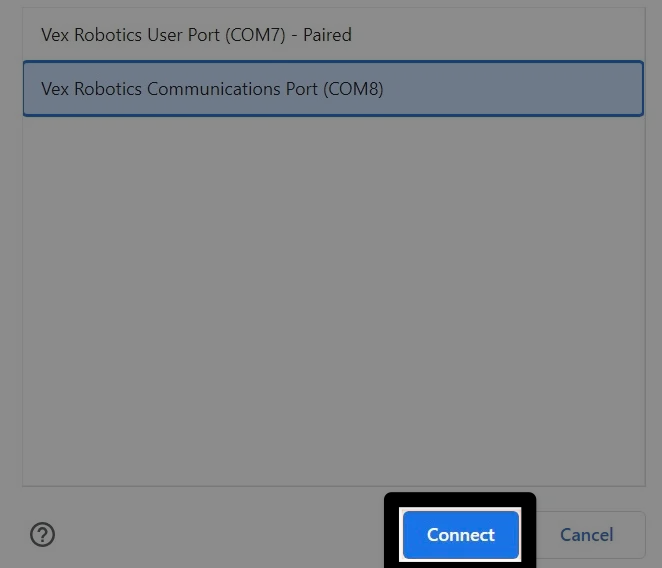

  1. Select Connect.

Screenshot of the serial port dialog on Windows, with the Communications Port selected and the Connect button highlighted.

  1. Once connected, USB will show as Connected, and the Robot section will appear, showing its Device Name and battery level. The robot icon in the toolbar will also turn green, and the Connect button will now read Connected.

Screenshot of the Connect menu with USB shown as Connected, the green robot icon in the toolbar reading Connected, and the Robot section showing its Device Name and battery level.
