AI Vision Sensor#
Introduction#
The AI Vision Sensor can detect and track objects, colors, and AprilTags. This allows the robot to analyze its surroundings, follow objects, and react based on detected visual data.
Below is a list of available blocks:
Actions – Capture data from the AI Vision Sensor for a selected signature.
take snapshot – Captures data for a specific object type, such as colors, pre-trained objects, or AprilTags.
Settings – Choose which object to interact with.
set AI Vision object item – Selects a specific object from the detected object list.
Values – Access and use the captured data.
AI Vision object exists? – Returns whether an object is detected.
AI Vision object is? – Checks if a detected object matches a specific classification.
AI Vision object is AprilTag ID? – Checks if a detected AprilTag matches a specific ID.
AI Vision object count – Returns the number of detected objects.
AI Vision object property – Returns details such as:
centerX & centerY – Center position coordinates in the sensor’s view.
angle – Orientation of the object.
originX & originY – Top-left corner position coordinates in the sensor’s view.
tagID – Identification number of an AprilTag.
score – How confident the model is in its identification as a percentage.
Actions#
take snapshot#
The take snapshot block filters data from the AI Vision Sensor frame. The AI Vision Sensor can detect signatures that include pre-trained objects, AprilTags, or configured colors and color codes.
Colors and color codes must be configured first in the AI Vision Utility before they can be used with this block.
The dataset stores objects ordered from largest to smallest by width, starting at index 0. Each object’s properties can be accessed using AI Vision object property block. An empty dataset is returned if no matching objects are detected.
[AIVision 1 v] 拍照 [SELECT_A_SIG v]
Parameter |
Description |
|---|---|
signature |
Filters the dataset to only include data of the given signature. Available signatures are:
|
Note: For AprilTag or AI Classification options to appear, their detection must be enabled in the AI Vision Utility.
Example
Example coming soon!
AI Classifications#
The AI Vision Sensor can detect different objects under certain AI Classifications. Depending on the AI Classification model selected when configuring the AI Vision Sensor in the Devices window, different objects will be detected. The currently available models are:
Classroom Objects
BlueBall
GreenBall
RedBall
BlueRing
GreenRing
RedRing
BlueCube
GreenCube
RedCube
V5RC Push Back
BlueBlock
RedBlock
V5RC High Stakes
MobileGoal
RedRing
BlueRing

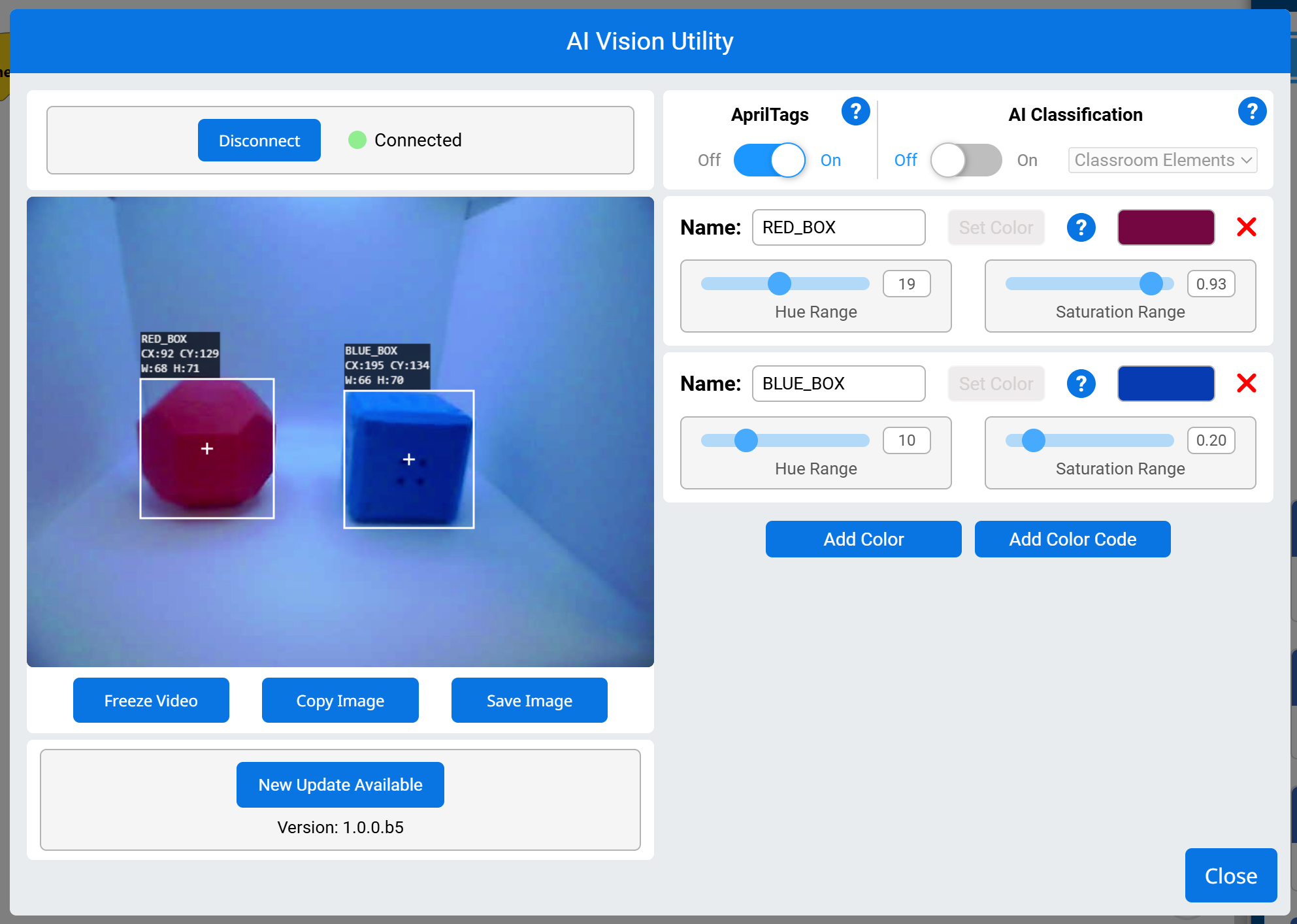

Color Signatures#
A Color Signature is a unique color that the AI Vision Sensor can recognize. These signatures allow the sensor to detect and track objects based on their color. Once a Color Signature is configured, the sensor can identify objects with that specific color in its field of view.
Color Signatures are used in the take snapshot block to process and detect colored objects in real-time. Up to 7 Color Signatures can be configured at a time.
Example
Example coming soon!

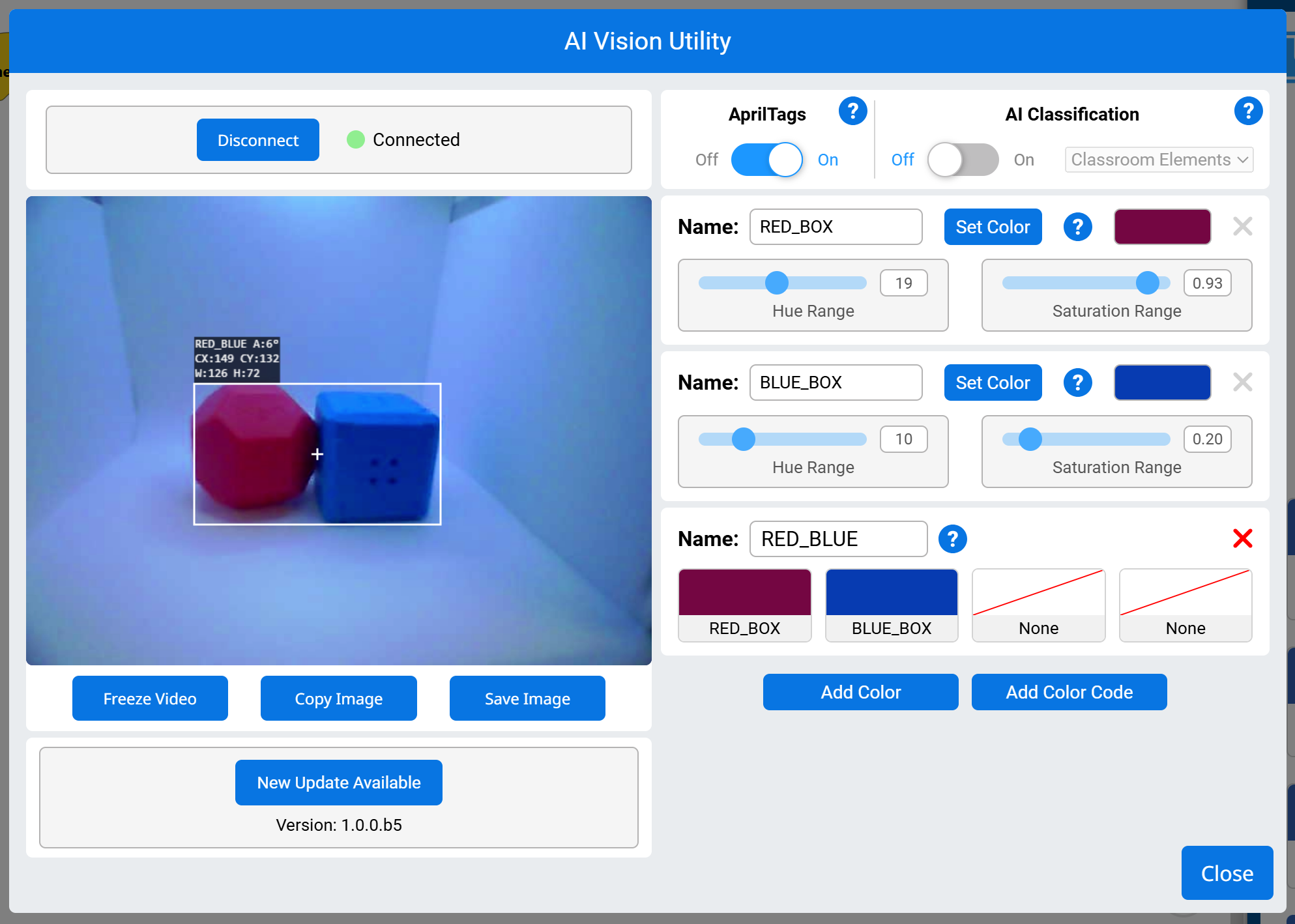

Color Codes#
A Color Code is a structured pattern made up of 2 to 4 Color Signatures arranged in a specific order. These codes allow the AI Vision Sensor to recognize predefined patterns of colors.
Color Codes are particularly useful for identifying complex objects, aligning with game elements, or creating unique markers for autonomous navigation. Up to 8 Color Codes can be configured at a time.
Example
Example coming soon!
Settings#
set AI Vision object item#
The set AI Vision object item block sets which item in the dataset to use.
设定 [AIVision 1 v] 对象标号为 (1)
Parameters |
Description |
|---|---|
item |
The number of the item in the dataset to use. |
Example
Example coming soon!
Values#
AI Vision object exists?#
The AI Vision object exists block returns a Boolean indicating whether any object is detected in the dataset.
True – The dataset includes a detected object.
False – The dataset does not include any detected objects.
<[AIVision 1 v] 对象存在？>
Parameters |
Description |
|---|---|
This block has no parameters. |
Example
Example coming soon!
AI Vision object is?#
The AI Vision object is? block returns a Boolean indicating whether a detected object matches a specific classification.
True – The item in the dataset is the specific object.
False – The item in the dataset is not the specific object.
<[AIVision1 v] object is [BlueBall v]?>
Parameter |
Description |
|---|---|
object |
Which AI Classification to compare the item to. |
Example
Example coming soon!
AI Vision object is AprilTag ID?#
The AI Vision object is AprilTag ID? block returns a Boolean indicating whether a detected AprilTag matches a specific ID.
True – The AprilTag ID is the number.
False – The AprilTag ID is not the number.
<[AIVision1 v] object is AprilTag [1] ?>
Parameters |
Description |
|---|---|
AprilTag number |
The number to compare against the detected AprilTag’s ID number. |
Example:
Example coming soon!
AI Vision object count#
The AI Vision object count block returns the number of detected objects in the dataset as an integer.
([AIVision 1 v] 对象数目)
Parameters |
Description |
|---|---|
This block has no parameters. |
Example
Example coming soon!
AI Vision object property#
There are nine properties that are included with each object (shown below) stored after the take snapshot block is used.
([AIVision 1 v] 对象 [宽 v])
Some property values are based off of the detected object’s position in the AI Vision Sensor’s view at the time that the take snapshot block was used. The AI Vision Sensor has a resolution of 320 by 240 pixels.
Parameter |
Description |
|---|---|
property |
Which property of the detected object to use: |
width#
width returns the width of the detected object in pixels as an integer from 1 to 320.
([AIVision 1 v] 对象 [宽 v])
Example
Example coming soon!
height#
height returns the height of the detected object in pixels as an integer from 1 to 240.
([AIVision 1 v] 对象 [高 v])
Example
Example coming soon!
centerX#
centerX returns the x-coordinate of the center of the detected object in pixels as an integer from 0 to 320.
([AIVision 1 v] 对象 [中心X坐标 v])
Example
Example coming soon!
centerY#
centerY returns the y-coordinate of the center of the detected object in pixels as an integer from 0 to 240.
([AIVision 1 v] 对象 [中心Y坐标 v])
Example
Example coming soon!
angle#
angle returns the orientation of the detected Color Code or AprilTag as an integer in degrees from 0 to 359.
([AIVision 1 v] 对象 [夹角 v])
Example
Example coming soon!
originX#
originX returns the x-coordinate of the top-left corner of the detected object’s bounding box in pixels as an integer from 0 to 320.
([AIVision 1 v] 对象 [原点X v])
Example
Example coming soon!
originY#
originY returns the y-coordinate of the top-left corner of the detected object’s bounding box in pixels as an integer from 0 to 240.
([AIVision 1 v] 对象 [原点Y v])
Example
Example coming soon!
tagID#
tagID returns the identification number of the detected AprilTag as an integer.
([AIVision 1 v] 对象 [tagID v])
Example
Example coming soon!
score#
score returns how confident the model is in the detected AI Classification as a percentage from 70% to 100%.
([AIVision 1 v] 对象 [score v])
Example
Example coming soon!
