有线连接(Windows)#

按照这些简单的步骤,使用 USB-C 电缆将您的 VEX AIR 无人机控制器连接到您的计算机。

打开控制器#

Turn on the controller by holding down the power button and releasing when it begins flashing white. The video below shows the power button being pressed until it starts flashing white. The button continues flashing as the screen turns on, and turns green when the controller is ready for use.

插入电缆#

使用 USB-C 电缆将控制器连接到计算机。

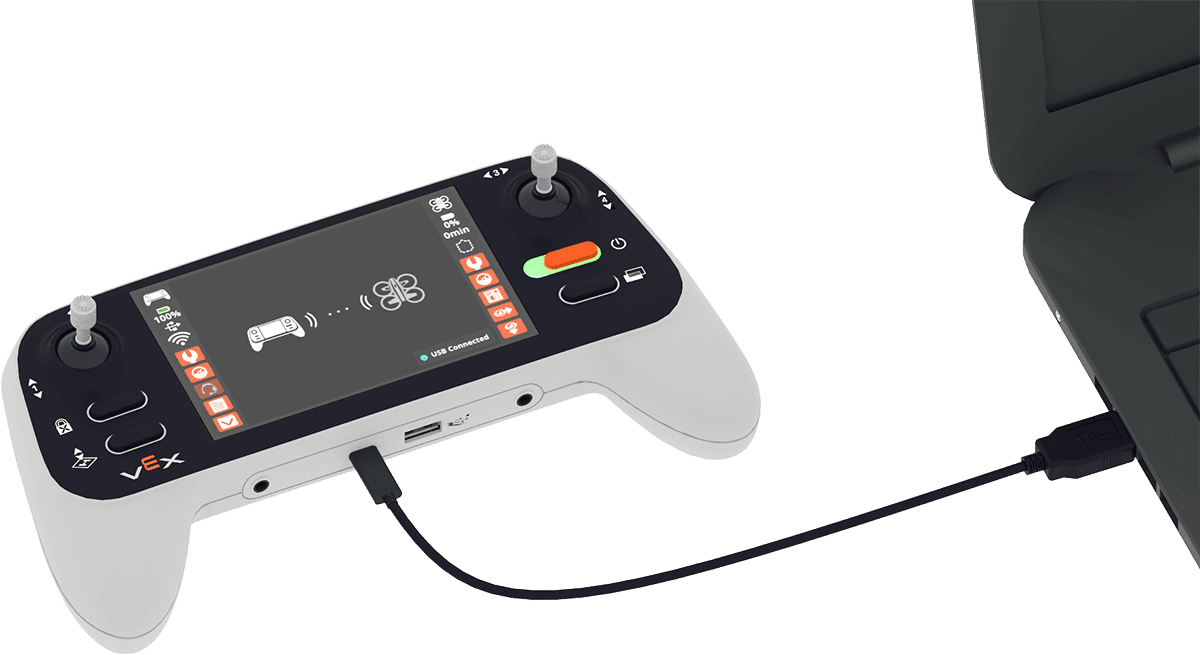

VEX AIR Drone Controller to the left of a laptop with a cable connecting the USB-C port on the controller to the computer.

选择右上角的控制器图标#

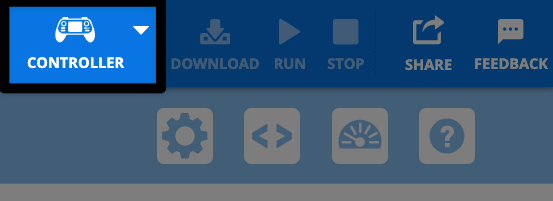

A screenshot of the upper right corner of the VEXcode AIR Toolbar, with the white Controller icon highlighted, to the left of the grayed out download button.

从菜单中选择通过 USB 连接#

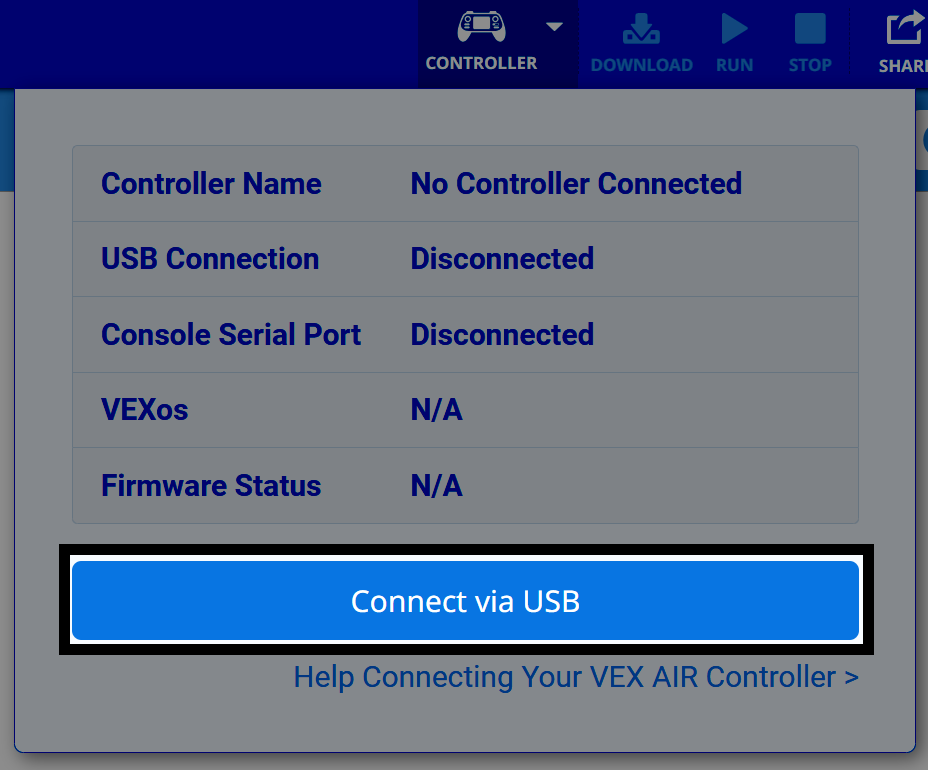

A screenshot of the Controller dialog box in VEXcode AIR with the Connect via USB button on the bottom highlighted.

按照设备提示操作#

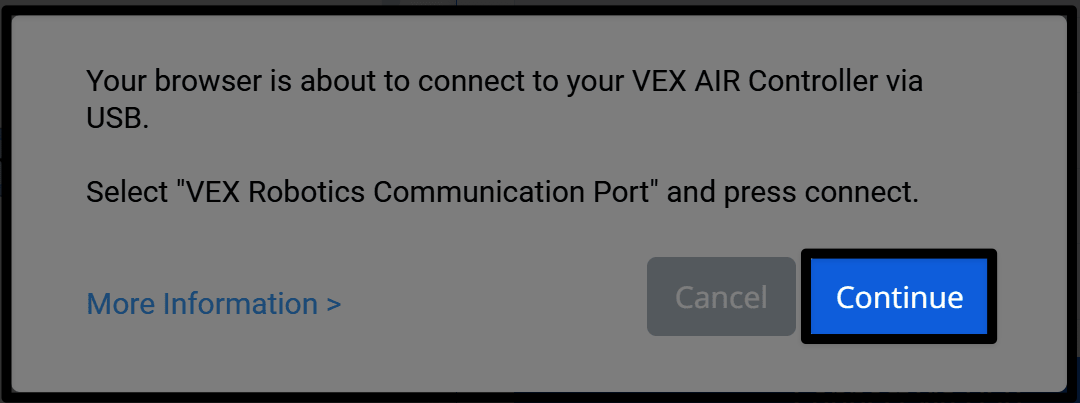

A prompt reads Your browser is about to connect to your VEX AIR Controller via USB, and instructs to select the VEX Robotics Communication Port and press Connect when prompted. The Continue button in the lower right corner is highlighted.

选择正确的连接选项#

选择带有通信端口的选项。

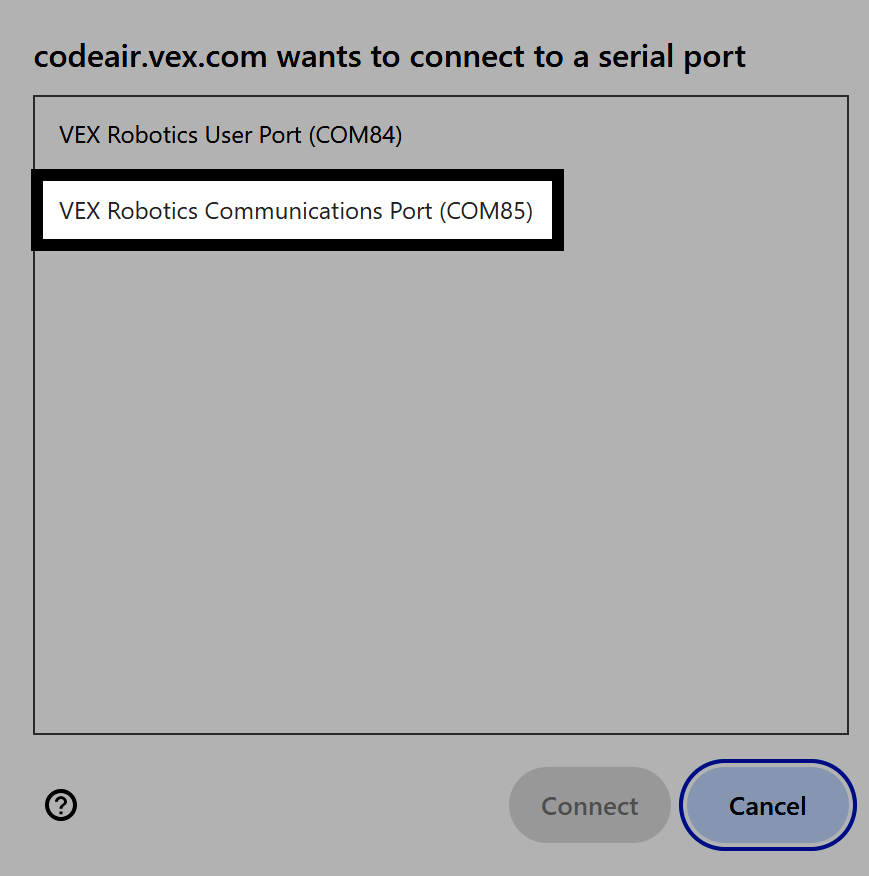

A prompt reads codeair.vex.com wants to connect to a serial port, and the second option that reads VEX Robotics Communications Port is highlighted, indicating what to select.

完成连接#

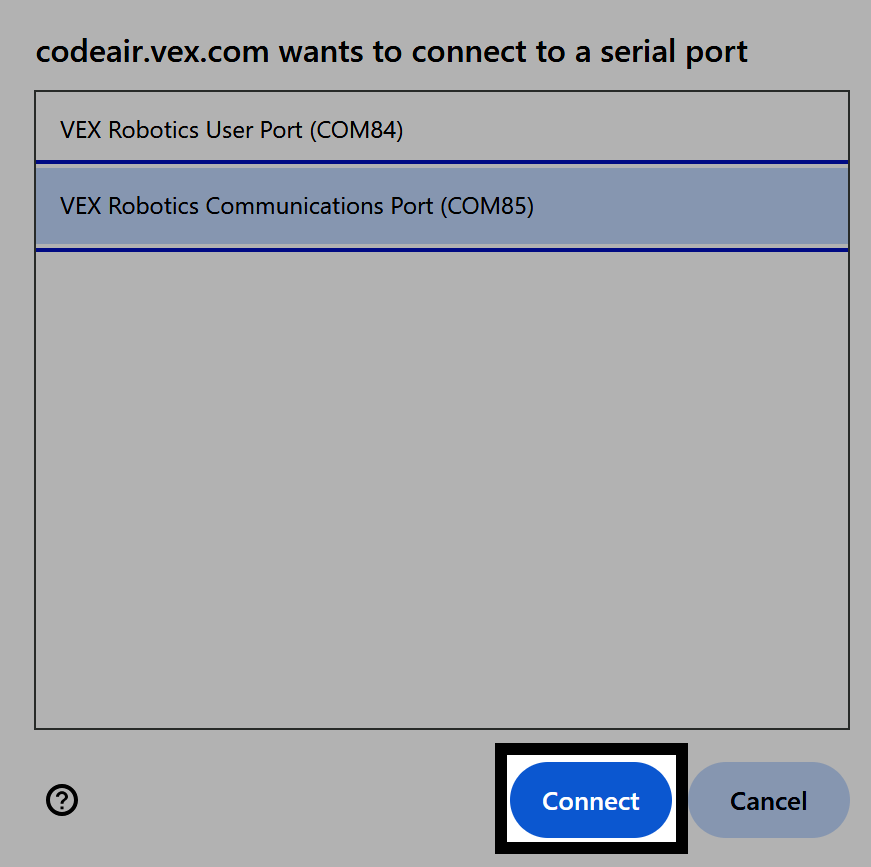

The same image as the one previous, now with the Connect button in the lower right corner to the left of the Cancel button highlighted.

您已连接#

VEXcode AIR 右上角的控制器图标现在将显示绿色。

The same screenshot of the Controller icon in VEXcode AIR as before, now with the icon showing green.
