Connecting with a Wired Connection (Windows)

This tutorial walks you through connecting your VEX AIR Drone Controller to a Windows computer with a USB-C cable in VEXcode AIR. By the end, you’ll have your controller connected and ready to download projects to.

  1. Turn on the controller by holding down the power button, releasing it when it begins flashing white. The button turns green once the controller is ready to use.

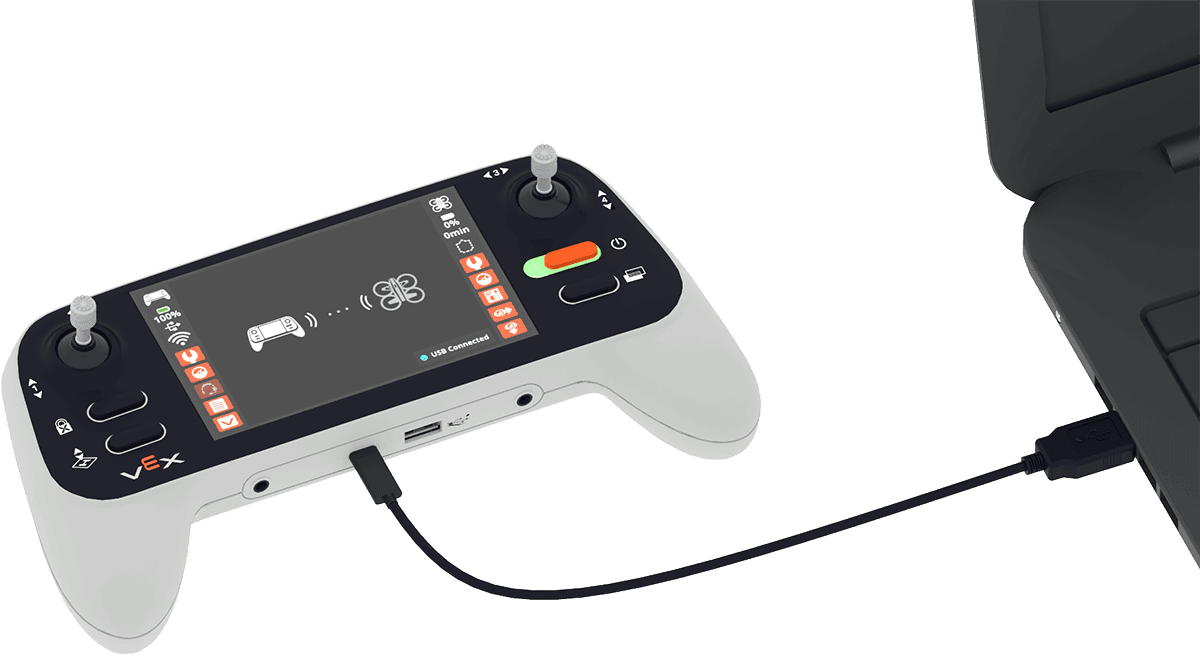

  1. Connect your controller to your computer with a USB-C cable.

Χειριστήριο VEX AIR Drone στα αριστερά ενός φορητού υπολογιστή με καλώδιο που συνδέει τη θύρα USB-C του χειριστηρίου με τον υπολογιστή.

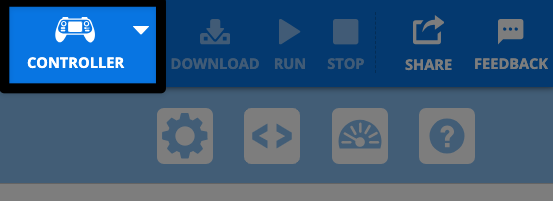

  1. Select the Connect button at the top-right of VEXcode.

Screenshot of the VEXcode AIR toolbar, with the Connect button highlighted.

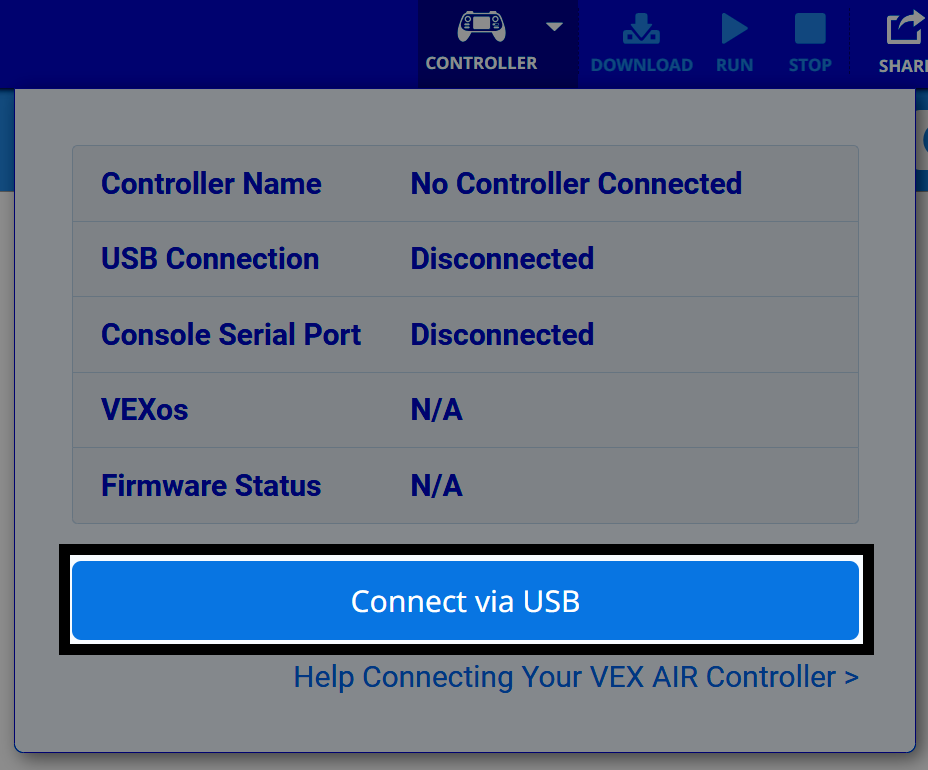

  1. Select Connect next to USB under Wired Connection.

Screenshot of the Connect menu, showing the Wired Connection section, with the Connect button next to USB highlighted.

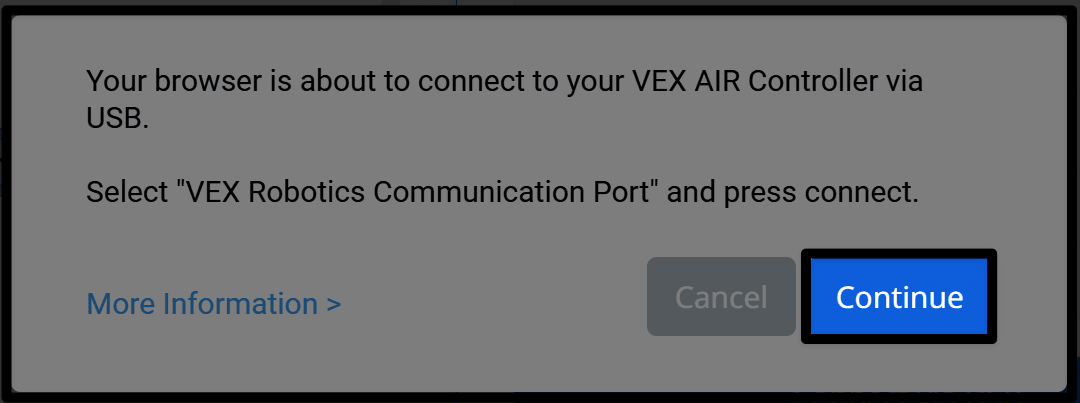

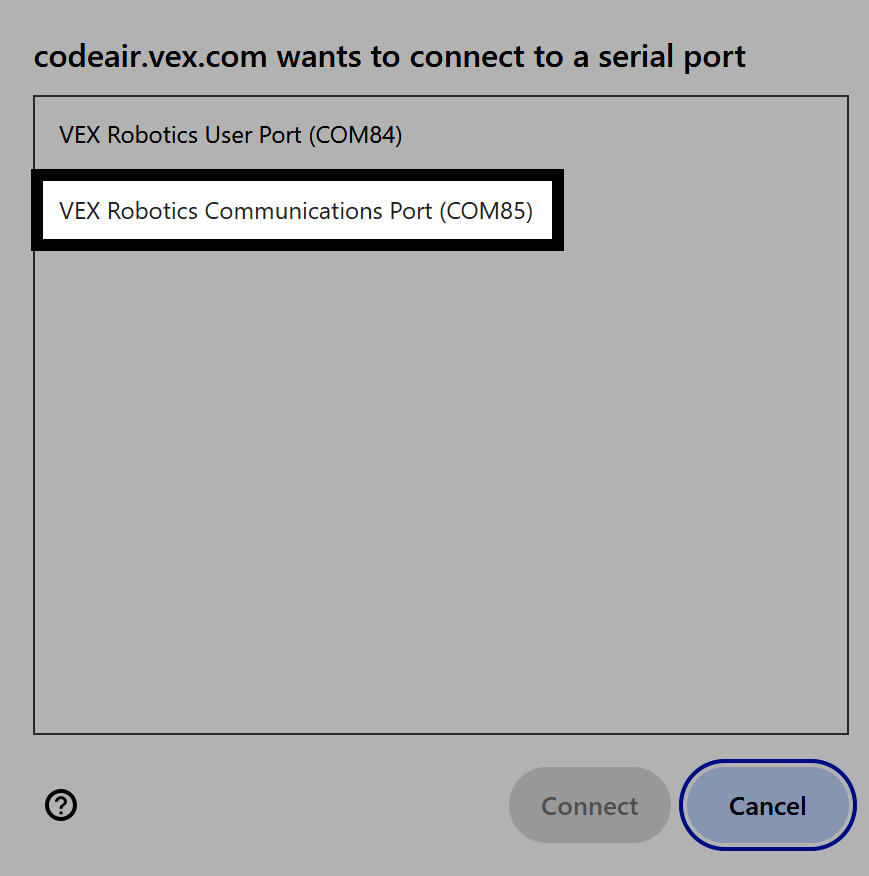

  1. Your browser will ask which serial port to connect to. Select VEX Robotics AIR Controller - Communications Port.

Screenshot of the serial port dialog on Windows, with the VEX Robotics AIR Controller Communications Port entry highlighted.

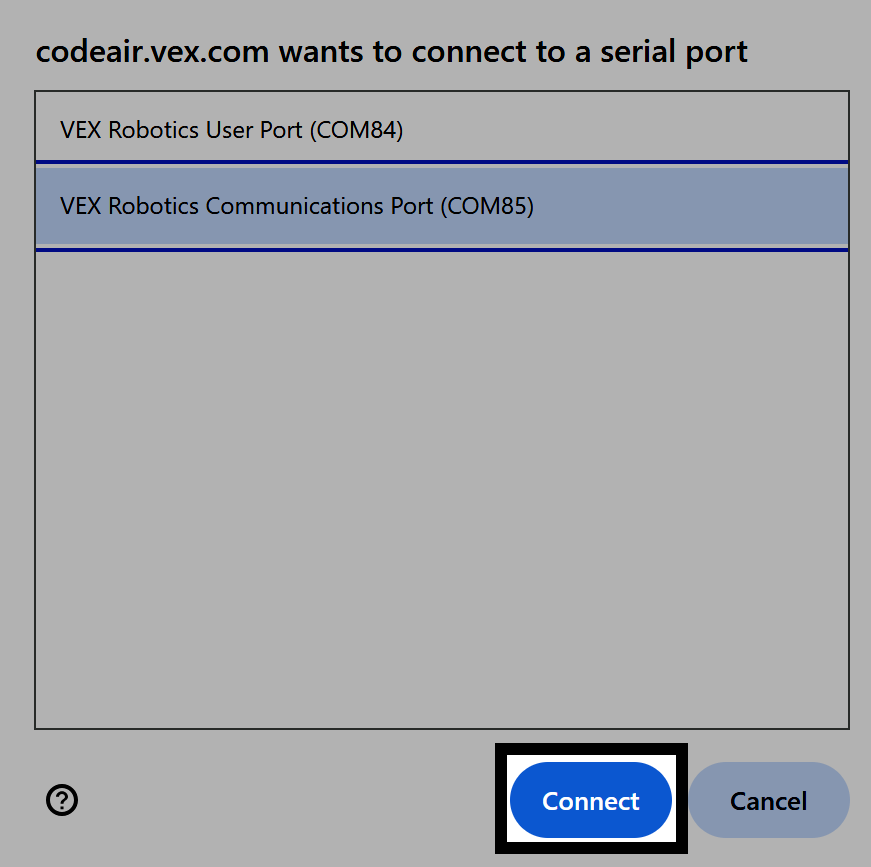

  1. Select Connect.

Screenshot of the serial port dialog on Windows, with the Communications Port selected and the Connect button highlighted.

  1. Once connected, USB will show as Connected, and the Controller section will appear, showing its Device Name and Team Number.

Screenshot of the Connect menu with USB shown as Connected, and the Controller section showing its Device Name and Team Number.
